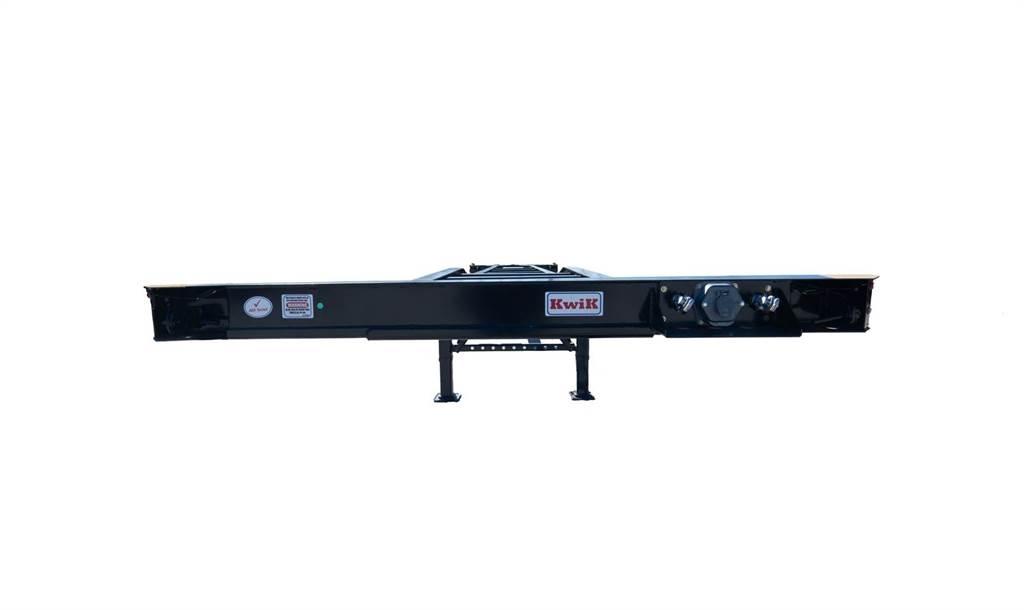

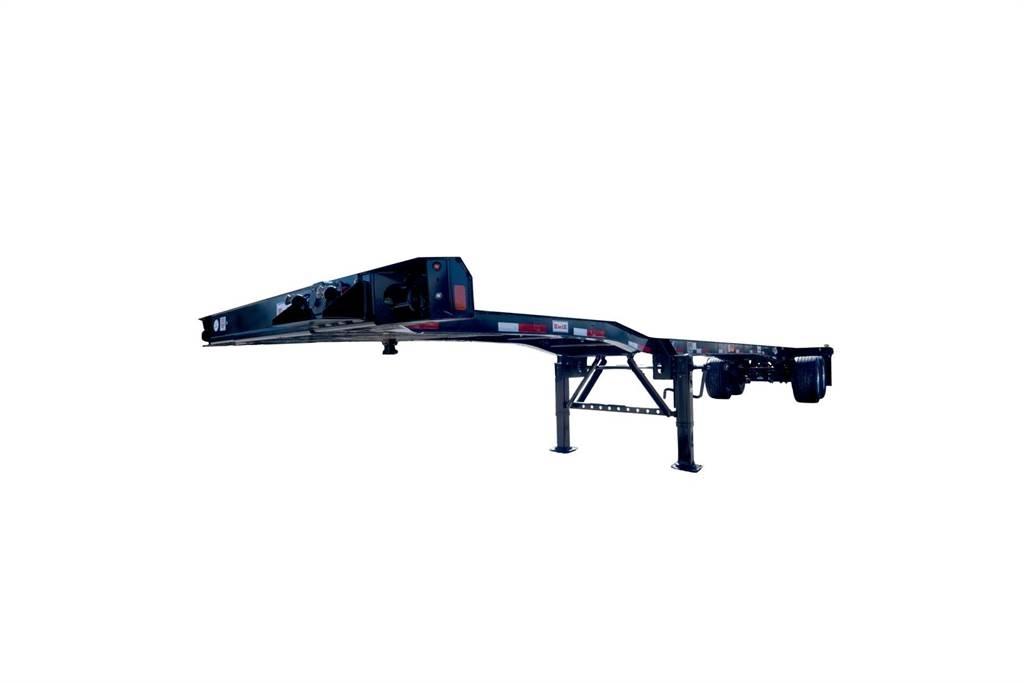

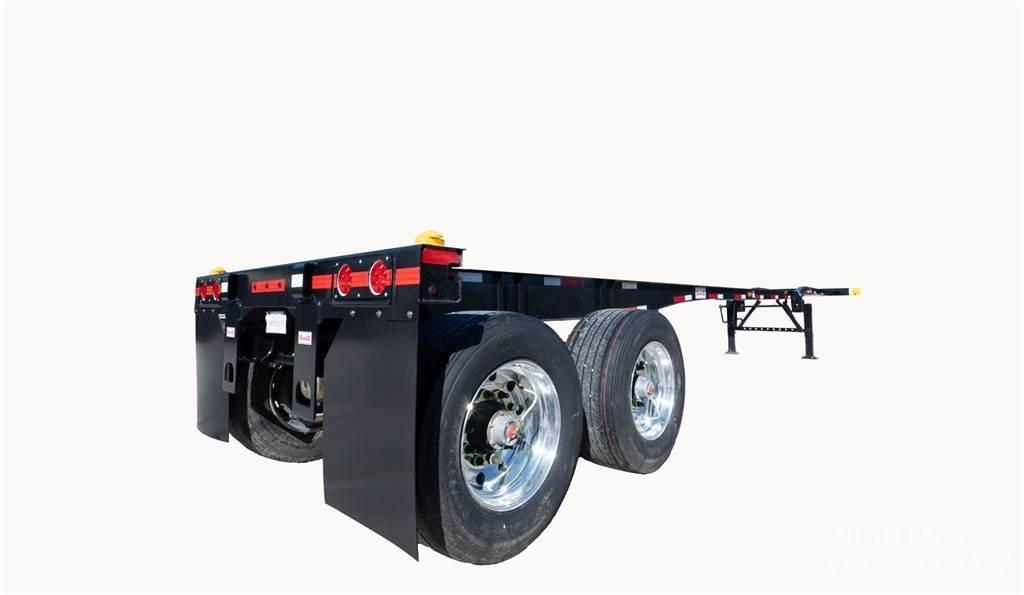

41ft long Lightweight Tandem axle spring suspension chassis with hub-piloted Aluminum Super Single disc wheels and Super Single radial tires PURPOSE: Designed to carry high cube 40ft container, up to 64,000 lb (conditions apply) CONTAINERS: (1) 40ft HC Container STANDARD DIMENSIONS: LENGTH: 41’ WIDTH: 96” FIFTHWHEEL HEIGHT: 47’ KINGPIN SETTING: 26” AXLE SPREAD: 49” REAR DECK HEIGHT: 48” TARE WEIGHT: 4,400 LB (+/- 3%) (Chassis only) FRAME RATING: 65,500 LB GVWR: 65,000 LB (Chassis, Container & Net Payload) GCWR w/o Permit: 80,000 LB (Chassis, Container, Net Payload & Tractor) GCWR w/ Permit: 84,000 LB (Chassis, Container, Net Payload & Tractor) STANDARD SPECIFICATIONS / FEATURES: MAIN BEAMS: Fabricated beams, Flanges and webs are of high-grade strength steel CROSSMEMBERS: Fabricated / formed KING PIN: 1/4” plate with 2” diameter king pin. TWISTLOCKS: Standard front Pin locks and rear Non-retractable twistlocks LANDING GEAR: 2-speed 14” travel with cushion foot SUSPENSION: 49” Spread Tandem Axle Overslung with Fabricated Undermount Hangers AXLES: 71 ½” Track, 5” Round, 22,500 lbs capacity, with 49” centers HUBS & DRUMS: Light weight hubs and drums – 10-hole Hub Piloted BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining WHEELS: (4) 8.25 X 22.5 10-hole SUPER SINGLE ALUMINUM DISC Wheels TIRES: (4) 445/50R22.5 Super Single tires BRAKE SYSTEM: Standard Valve System for service and emergency brakes. 2S/1M ABS system ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System. Sealed wiring harnesses. LED Lights with flange mounts PAINT: Zinc rich primer with Topcoat Urethane finish COLOR: BLACK (Standard) MISCELLANEOUS: 24x30 KWIK Mudflaps, logos, decals, Conspicuity Striping, Trucklite Registration Holder, etc., ADDNL FEATURES:  Metal Dock Bumpers  PSI Tire Pressure System  Loose Lug nut indicators
