BIK HL 100T

Name: BIK HL 100T
Brand: BIK
SKU: F8EBB198
Availability: InStock

Cena bez PVN

Cena pēc pieprasījuma

Izlase

Dalīties

Saglabāt meklējumu

Drukāt

INFORMĀCIJA

Produktu grupa

Citi

Zīmols / modelis

BIK HL 100T

Ražošanas gads

2025

Stāvoklis

Jauns

Mašīnas atrašanās vieta

Milford, Massachusetts

Valsts

Amerikas Savienotās Valstis

Vispārējā pakāpe

Mascus ID

F8EBB198

PAPILDUS INFORMĀCIJA

Tips

Dīzeļa

Dzinēja jauda

416 kW (565 zirgsp.)

Dzinēja ražotājs

CUMMINS

Transmisija

Eaton Ultrashift Plus Automated 18 spd

Papildinformācija

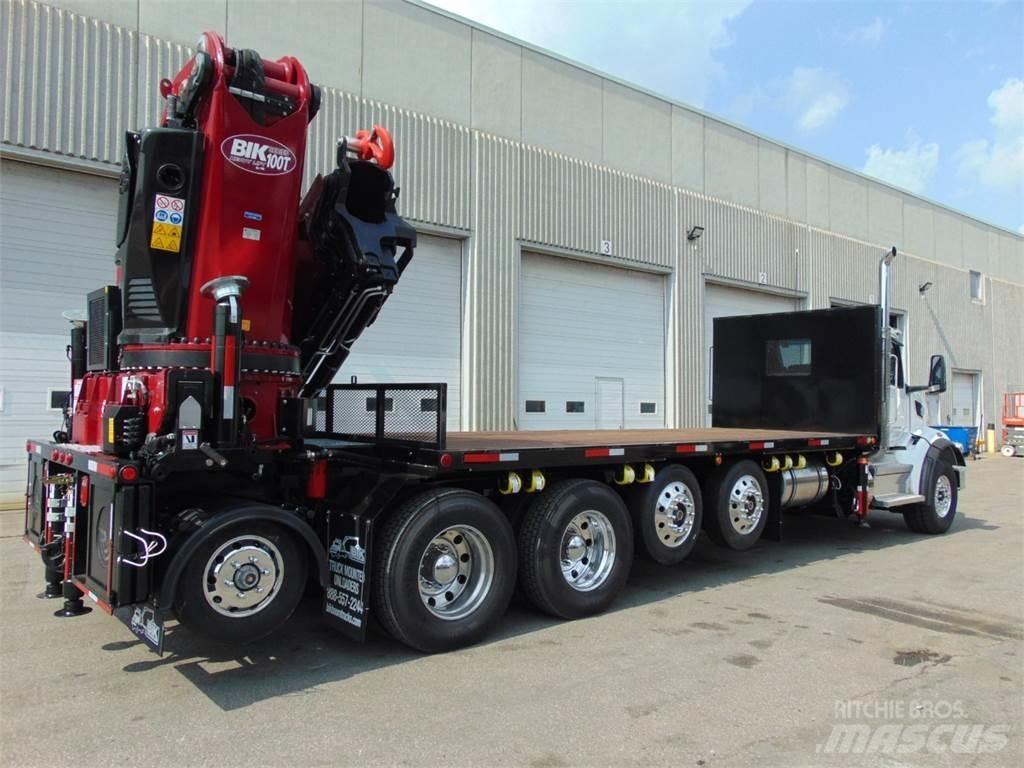

Boom Details New – BIK “Heavy Lift” Series HL 100T PM 100024S Knuckle Boom: 4 Hydraulic extentions to 37’ 5’ horizontal reach (49’ vertical) Horizontal Capacity 42,400 lbs ... 14′ 32,100 lbs ... 19′ 24,010 lbs ...25’3″ 20,600 lbs ... 30’60” 16,250 lbs ... 37’5″ PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon hyd aluminum oil tank with gate valves mounted at front under deck DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with back up cord Radio Remote includes : 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK Installed END OF FRAME, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength. Deck Details New – 22′ Long x 102″ Deck with Wooden Surface Installed on Truck with 70” of main sill overhang at front for Sub-Frame of Knuckle Boom Apitong wood surface 60” Headboard ½ smooth steel and ½ expanded metal Rub rail both sides with pockets with 8-winches and straps Conspicuity Tape and Reflectors Headboard and all other steel surfaces primed and painted Gloss black, etc. Truck Details New 2024 Peterbilt 567 6-Axle Truck : 88,000 lb GVWR Cummins 15L Diesel – 565 HP Truck cab white, Eaton Ultrashift Plus Automated 18 spd trans 22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims 46,000 LB Rears oon Hendrickson Primax Air- Ride Suspension (2) x 13,000 lb self steer lift axle installed ahead tandem with Low Profile 22” tires on alum rims (1) – 9,000 lb tag axle (under boom) with low profile 17: tires/alum rims Double Frame, Polished ALCOA Aluminium Wheels front and rear, Chrome Exhaust pipe vertical, Chromed Grille & Bumper Single 100 gallon alum fuel tank. Loaded with Options including: A/C, Tilt/Telescopic steering, Top Level Interior, AM/FM/CD player , Jake Brake, air driver’s seat, fixed pass seat, cruise, heated mirrors, exterior S/S sun visor, All-way inter-axle and differential lock-ups, power windows & locks, power mirrors, Air ride cab, full diff locks, trailer air package, etc. Options Included : Auxiliary Extra-Wide hydraulic outriggers 24’ spread front mounted for 360 degree stability at front 1” draw plate at rear of truck frame with Pintle Hook and dual rear up/down stabilizers for 100% rearward stability Aluminum storage box Stabilizer pads with holders at rear bumper and at front sides Options at Extra Cost : (2) additional hydraulic extensions to have 6 total hyd extensions to 53’ reach, Handling 9,300 lb ... 53’Rādīt vairāk

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts Amerikas Savienotās Valstis
