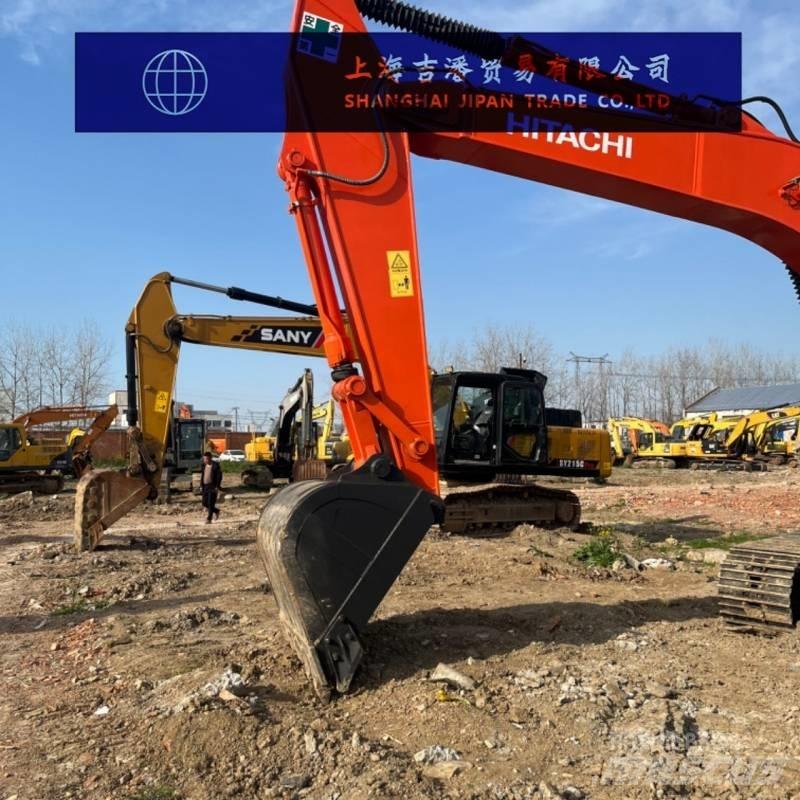

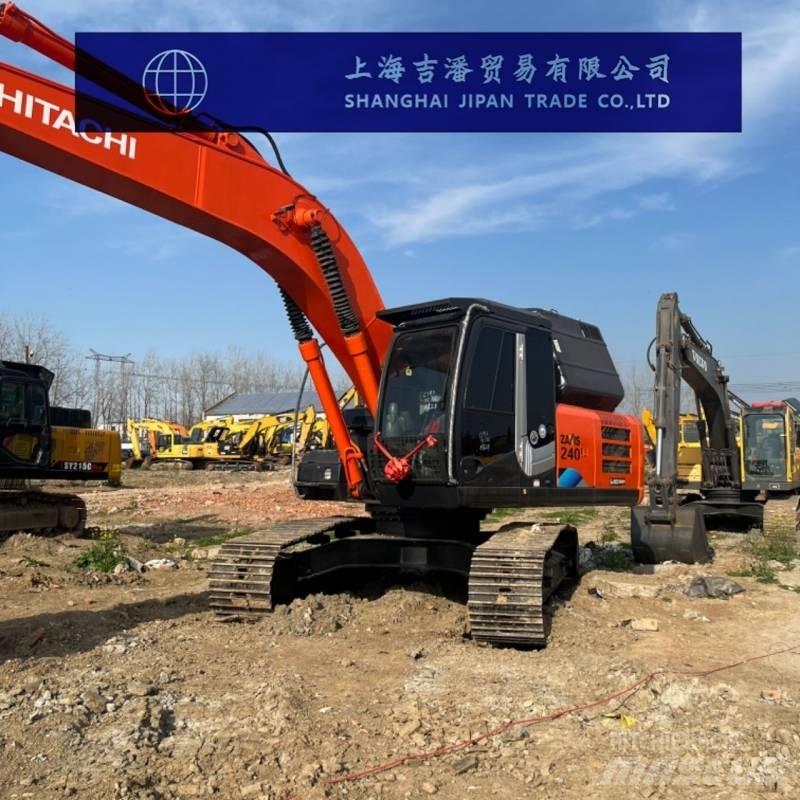

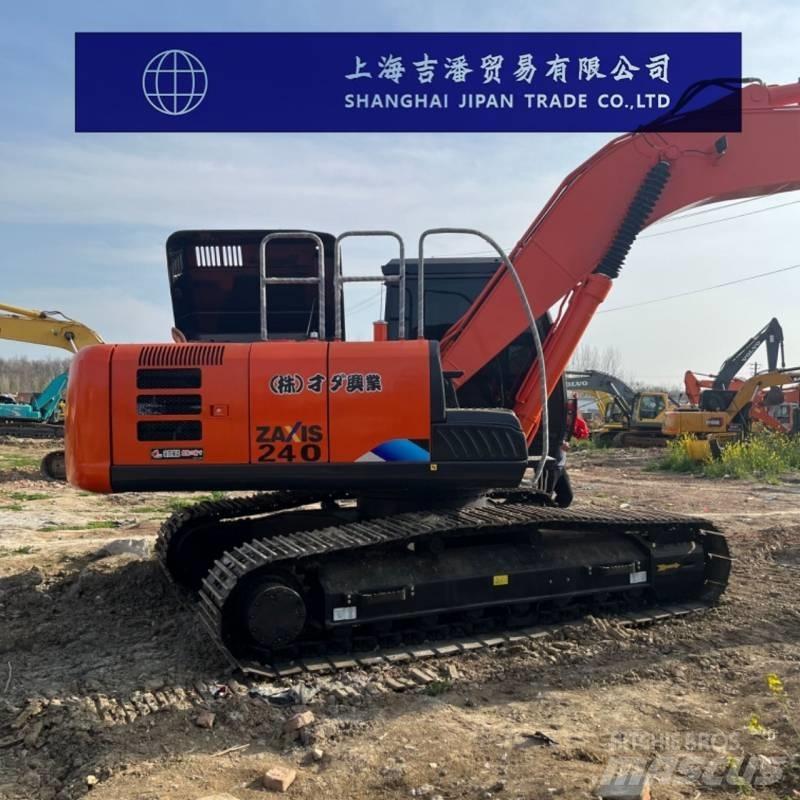

Hitachi ZX 240
Cena bez PVN
Drukāt
INFORMĀCIJA
Produktu grupa
Kāpurķēžu ekskavatori
Zīmols / modelis
Hitachi ZX 240
Ražošanas gads
2023
Darba stundu skaits
525 h
Valsts
Ķīna
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
26B643FC
IZCENOJUMS
Izvēlieties valūtu
PAPILDUS INFORMĀCIJA
Noliktavas Nr.
1
Tips
Dīzeļa
Ražotāja numurs
1
Iepriekšējo īpašnieku skaits
1
Pēdējā tehniskā apskate (datums)
2025-07-15
Ritošās daļas kondicionēšana
Good Condition
Dzinējs
Original
Bruto svars
24 400 kg
Dzinēja jauda
127 kW (173 zirgsp.)
Dzinēja ražotājs
Original
Reģistrācijas numurs
1
Emisijas klase
Fāze V
Kausa ietilpība
1,40 m3
Sliežu platums
600 mm
Papildu hidraulikas izejas parametri
480 l/min
Maksimālais ātrums
5,50 km/h
Transportēšanas izmēri (GxPxA)
10360 x 2990 x 3080 mm
Oriģinālā krāsa
Original
Kausa/ stieņa garums
2 960 mm
Stāvoklis/garantija
1 Year
Ražošanas valsts
Japāna
Piegādes nosacījumi
FCA, FOB, CIF, EXW
Sertifikāti
EPA, CE
Dažādi piederumi- papildaprīkojums
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Papildaprīkojums
aizsargvārsts šļūteņu pārraušanas gadījumam (strēle)
aizsargvārsts šļūteņu pārraušanas gadījumam (strēle)
Vīts grozs
Gaisa kondicionētājs
Motora priekšfiltrs
Sijāšanas kauss
Rotējošā bākuguns
Luksuss aprīkojums
Vadības svira
Standarta rakšanas kauss
Kauss ar kabeli
Ditching/grading bucket
V ditch bucket
Papildinformācija
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)24
The working weight of the entire machine (kg) is 24,300-24,400
Bucket capacity (m³)1.2-1.4
Boom length (mm) : 6000
The length of the boom (mm) is 2960
Performance
Rotational speed (rpm) : 12.4
The rotary torque (Nm) is 77.5
Walking speed (km/h)5.5/3.4
Climbing ability (%) : 70
Ground specific pressure (Kpa)53
Bucket digging force (kN)188
Bucket shaft digging force (kN)131
Maximum traction force (kN)222
Power system
Engine model: Isuzu GH-4HK1XKSA-01
Rated power (kw/rpm)127/2000
Maximum torque (N.m)640/1500
Displacement (L)5.193
Number of cylinders (4)
Cylinder diameter × stroke (mm) : 115×125
The cooling method is water cooling
Working forms: 4-stroke, water-cooled, electronically controlled direct injection type, turbocharged, intercooled
Hydraulic system
The main pump types include 2 variable axial piston pumps and 1 gear pump
The rotary hydraulic motor type is one swash plate type plunger motor
The walking hydraulic motor type consists of two variable swash plate type piston motors
The maximum flow rate of the main pump (l/min) is 2×224+32
Pilot oil circuit (MPa)3.9
Working hydraulic circuit (Mpa)34.3
The walking hydraulic circuit (Mpa) is 34.8
Rotary hydraulic circuit (Mpa)32.4
Boom cylinders - number × cylinder diameter × stroke (mm)2×125×90
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×140×100
Bucket cylinder - Number × cylinder diameter × stroke (mm)1×130×90
Oil capacity
Fuel tank (L)510
Hydraulic oil tank (L)156
Hydraulic System (L)280
Engine oil change volume (L)23
Coolant (L)31
Main body size
The total length of transportation (mm) is 10360
The total transportation width (mm) is 2990
The total transportation height (mm) is 3080
The total height of the cab (mm) is 3010
The grounding length of the track (mm) is 3460
The total length of the track (mm) is 4260
Track plate width (mm) : 600
The total width of the tracks (mm) is 2990
Track gauge (mm) : 2390
Minimum ground clearance (mm) : 460
The ground clearance of the counterweight (mm) is 1080
The minimum turning radius (mm) of the front working device is 3440
The rear end turning radius (mm) is 3140
Number of idler wheels (single side) (units)8
Number of idler wheels (single side) (units)2
Number of track plates (single side) (units)47
Scope of work
Maximum excavation radius (mm) : 10290
The maximum excavation radius of the shutdown face (mm) is 10110
Maximum excavation depth (mm) : 6960
Maximum excavation height (mm) : 10160
Maximum unloading height (mm) : 7200
Maximum vertical excavation depth (mm) : 6030
