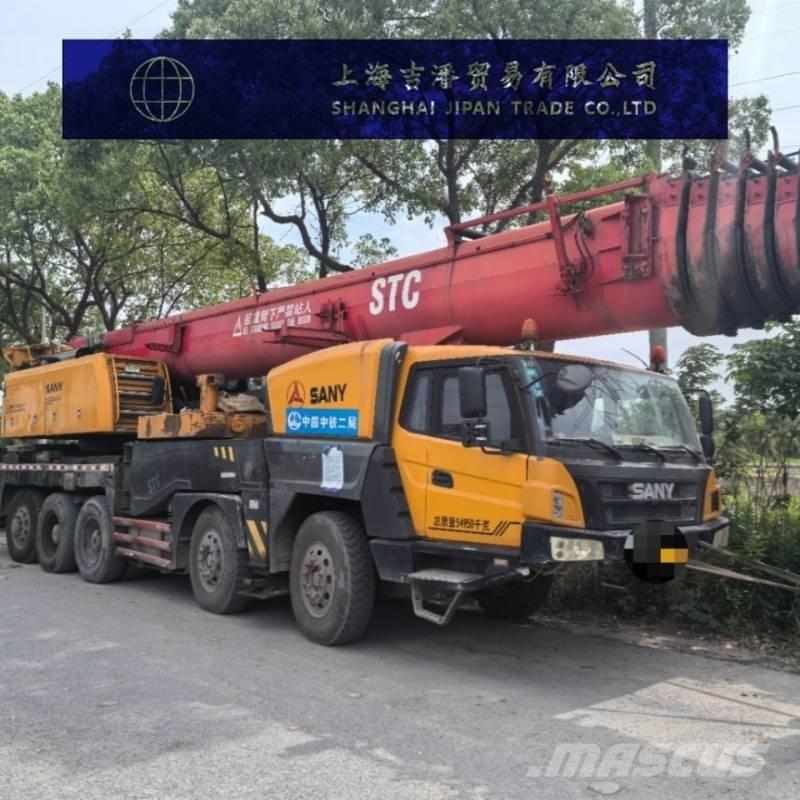

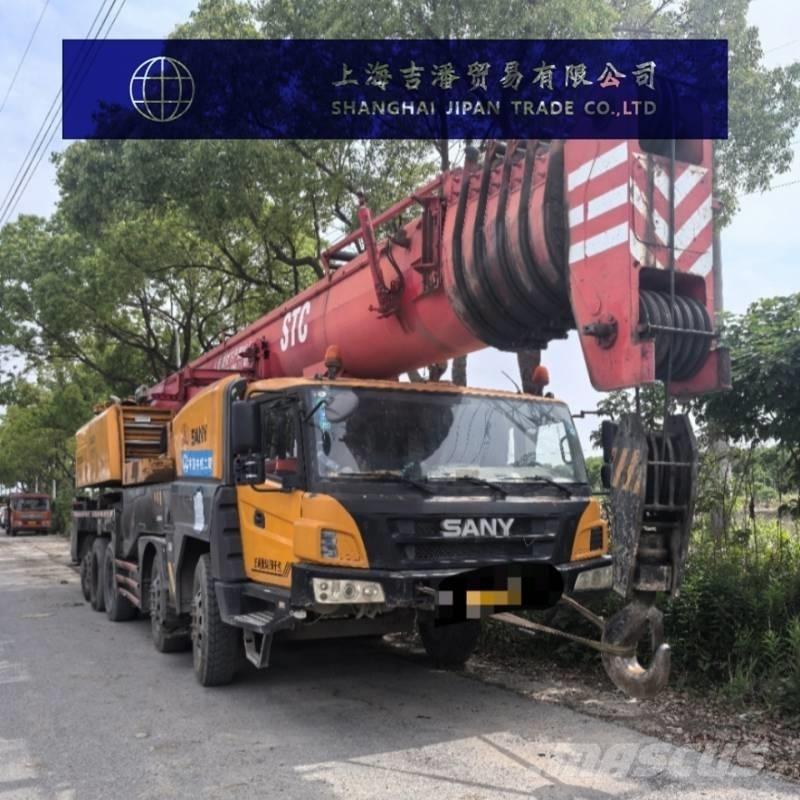

Sany STC 1000 C

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting capacity Maximum rated lifting capacity: 100 tons Maximum rated lifting moment: 4320kN·m Maximum rated lifting moment for fully extended boom: 1800kN·m Minimum working range: 3 meters Maximum lifting height - basic boom: 13.9m Maximum lifting height - fully extended boom: 60m Maximum lifting height - basic boom + auxiliary boom: 78.1 meters Boom size Basic number of arm segments: 6 Crane boom cross-sectional type: U-shaped Boom length - Basic boom: 13.25m Boom length - fully extended boom: 60m Boom length - basic boom + auxiliary boom: 78.1 meters Length of the auxiliary boom: No data available Installation angles of the auxiliary boom: 0°, 15°, 30° Operation speed parameter The maximum lifting speed of the main hoist is 135 meters per minute The maximum lifting speed of the auxiliary hoist is 135 meters per minute Full extension time of the boom: 420/400 seconds Boom luffing time: 60/80s Rotation speed: 0-2.5r/min Engine Chassis engine model: Mercedes-Benz OM502 LA, rated power 375kW Engine for the vehicle: American Cummins QSB6.7 or Mercedes-Benz OM906LA.E2/5, with a rated power of 144 or 150kW Driving parameters Maximum driving speed: 85km/h Minimum turning radius: 11 meters Maximum climbing gradient: 45% Approach Angle/departure Angle: ≥21° Minimum ground clearance: 310mm Overall machine specification The overall length of the machine is 15,396mm Overall width of the machine: 3000mm Overall height of the machine: 4000mm Working weight: 54,950 kg Outrigger span:7.6×7.6m
