INFORMĀCIJA

Produktu grupa
Visurgājēji celtņi
Zīmols / modelis
Link-Belt HTC-50W
Reģistrācijas gads
1979
Mašīnas atrašanās vieta
Arkansas, USA, Arkansas
Valsts
Amerikas Savienotās Valstis
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
F2DF7B90

IZCENOJUMS

Izvēlieties valūtu

PAPILDUS INFORMĀCIJA

Noliktavas Nr.
553
Max. celtspēja
45 000 kg
Pacelšanas augstums
2 743 cm
Dažādi piederumi- papildaprīkojums
https://freecranespecs.com/Link-Belt/HTC-50W
Papildinformācija

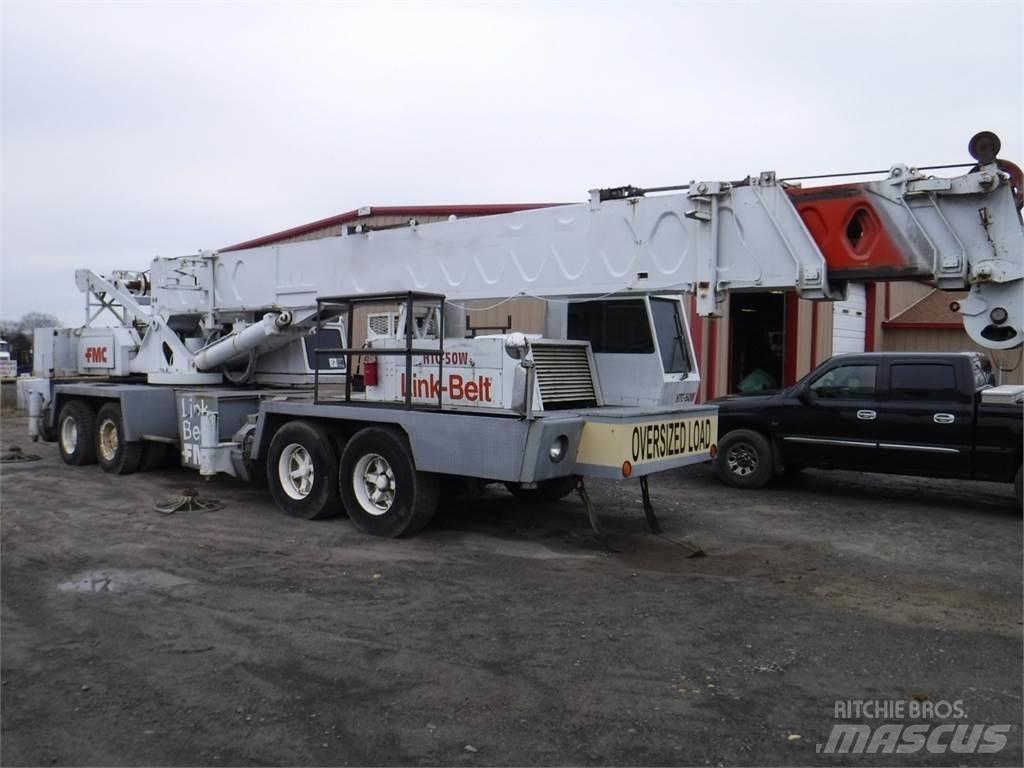

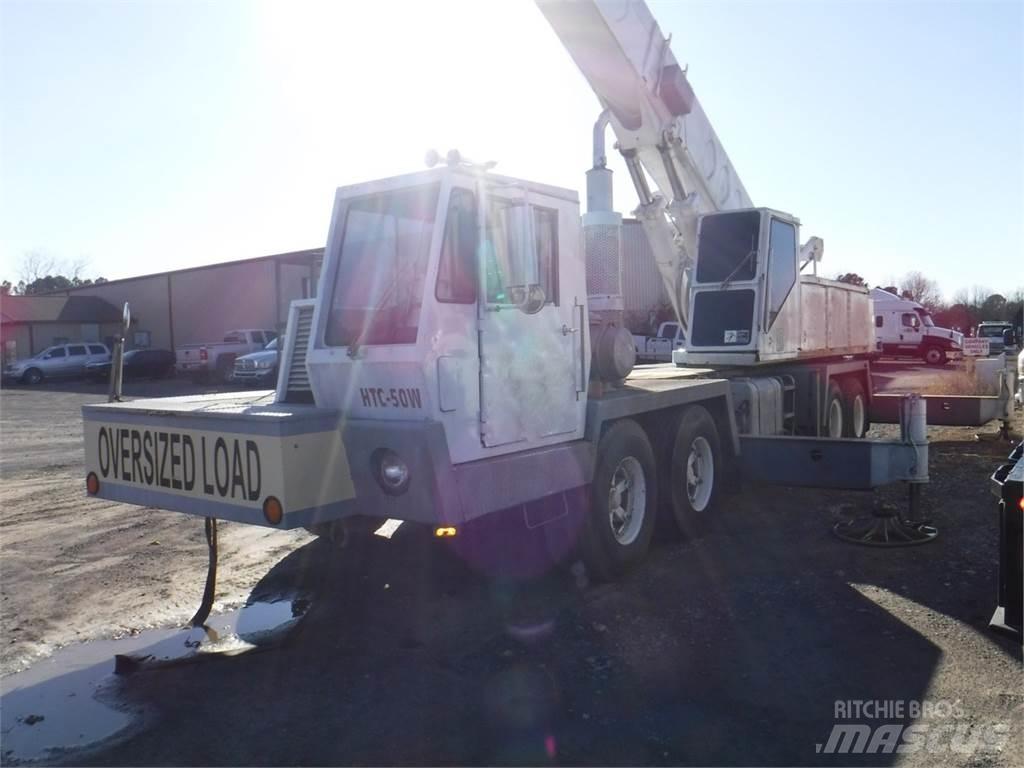

1979 Link-Belt HTC45W, 45 Ton Hydraulic Truck Crane; CranesList ID: 553, 35'- 90' Three Section Full Power Boom  with Auxiliary Lifting Sheave, No 32’ Swing-Away Lattice Fly b ut 28' and 20' jib pieces with the mast to make the 80' jib are available  in Texas for an additional cost, Main and Auxiliary Winches with 3/4" wire rope True Free Fall lowering On Both Drums, Boom Angle Indicator, Drum Rotation Indicator, Two-speed (Main), Anti Two Block,  Hook Ball, Hook Block, 6,700# counterweight - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, Extendable Hydraulic Counterweight, Heater and defroster fan UP and Down, 10' 3"  Wide Link-Belt 8 x 4 Drive with rear tandem steering Carrier, GM 6-71 238 H.P. Diesel Engine  - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, Jake Brake,  Fuller Roadranger RTO-613 Transmission, 13 forward, 3 reverse speeds, Front Tires:  16.50 x 22.5 (16 Ply) - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, Rear Tires:  12:00 x 20.0 (16 Ply) - AS PER LINK-BELT SPECIFICATIONS & SUBJECT TO FINAL CONFIRMATION, 230" wheelbase, 9' 10" retracted and 21' extended Outriggers, Controls for outriggers and site level bubble are in the operator's cab, Aluminum outrigger pads, Tool Boxes, YEAR & SERIAL NUMBER TO BE CONFIRMED. Rādīt vairāk
