RB iconIP iconMPE iconRBAS iconRouse icon

ICE 1412C

Cena bez PVN

Cena pēc pieprasījuma

FavoriteIzlase
shareDalīties
Save searchSaglabāt meklējumu
Drukāt

INFORMĀCIJA

Produktu grupa
Vibrējošie pāļu dzinēji
Zīmols / modelis
ICE 1412C
Reģistrācijas gads
2004
Papildus iespējas
Pārbūvēts
Mašīnas atrašanās vieta
Etten Leur, Noord-Brabant
Valsts
Nīderlande
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
9A082F12

PAPILDUS INFORMĀCIJA

Noliktavas Nr.
1412C0100
Iepriekšējo īpašnieku skaits
2
Bojājumi
Strādā bez problēmām
Pēdējā tehniskā apskate (datums)
2024-04-15
Ražotāja numurs
1412C0100
Emisijas klase
Fāze II
Transportēšanas svars
14 500 kg
Engine Manufacturer
CATERPILLAR
Transportēšanas izmēri (GxPxA)
3.5 x 2.5 x 1.5 mm
Ražošanas valsts
Nīderlande
Piegādes nosacījumi
EXW
Sertifikāti
CE
Dažādi piederumi- papildaprīkojums
ICE 1412C vibratory hammer ICE 320TU universal sheet pile clamp 60m hydraulic hose bundle ICE 900 hydraulic power pack Optionally: 2x casing clamps with beam
Papildinformācija

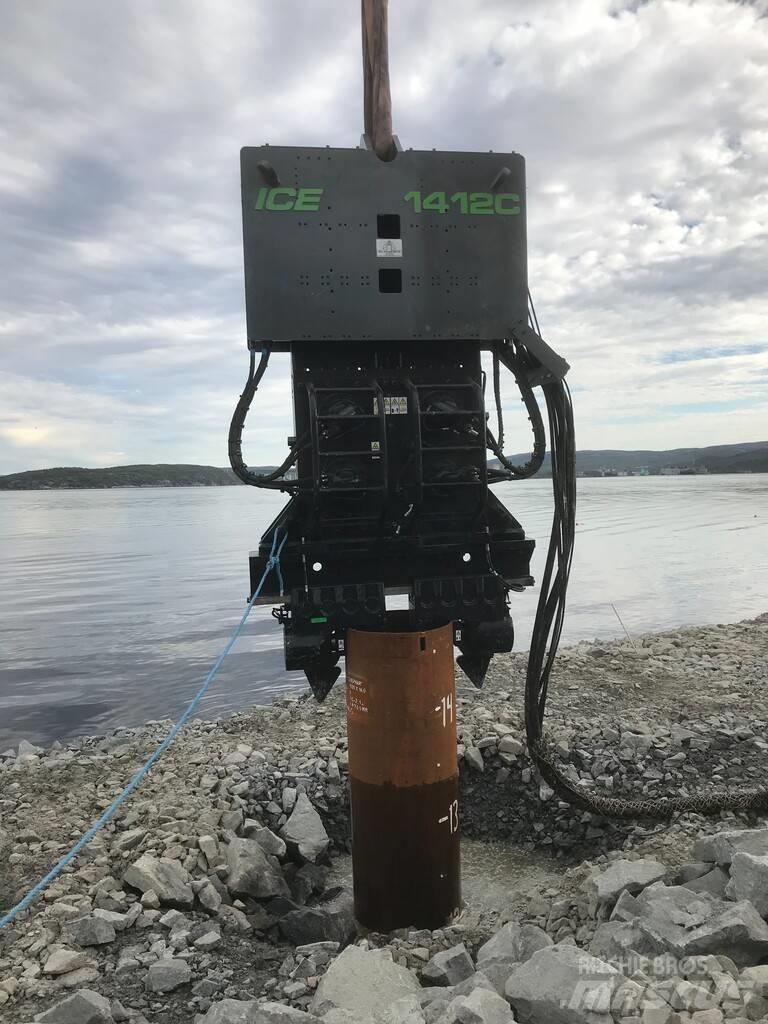

The ICE 1412C vibratory hammer is a standard frequency vibratory hammer which is powered by the original ICE 900 (CAT) power pack. This hydraulic power pack is fitted with a reliable and strong V12 Caterpillar diesel engine. CAT is well supported and spare parts and service are worldwide available. The power pack comes with a remote control and has been manufactured with sound insulation material and a closed bottom plate. Both vibratory hammer and power pack have been subject to manufacturers’ inspection in at the current running hours and were found in good condition. The gearbox of the vibratory hammer was factory rebuild in 2015 which is also mentioned on the model plate. Technical specifications ICE 1412C vibratory hammer Eccentric moment: 110 kgm Running hours: 1727 hrs Serial number 1412C1000 Factory rebuilt 2015 Max. centrifugal force: 2300 kN Max. frequency: 1380 rpm Max. static line-pull: 800 kN Max. operating pressure: 350 bar Max. oil flow: 830 ltr Operational weight 14.320 kg incl. 320TU clamp Year of manufacture 2004 Universal sheet pile clamp: 320TU Optional tube clamps: 2 x Hydraulic hose bundle 60 meters 1 pc. ICE 900 power pack (yom 2004) Engine: CAT, type, 3412 DITA Engine type: V12 turbo charged diesel Total hours incl. idle: 8190 hrs Serial number: 90PR110009 Year of manufacture 2004 Power: 522 kW / 710 HP Max. working pressure: 340 bar Max. oil flow: 1020 ltr/min Hydr. oil tank capacity: 2400 ltr Fuel tank capacity: 900 ltr Full weight: 9700 kg Dimensions LxWxH : 4.9x2.2x2.4 mtrRādīt vairāk

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant Nīderlande
