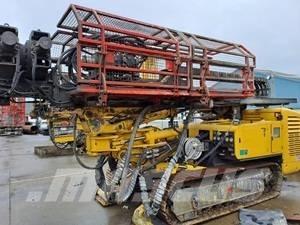

Casagrande C6XP2

Micropiling rig with 3045 working hours Double safety gates T20EP rotary head – max torque 15,200Nm, rotation speed 52-400rpm, through-hole passage 130mm Mast/Stroke length – 6000/4100mm M5-M5S clamps – working range 76-406mm, clamp force 283kN, break-out torque 45kNm 254mm dia centering device A2 type hydraulic service winch – line pull 20kN NG530 LP water pump – max flow 170l/min, max pressure 24bar Application kit for T40 hydraulic drifter on T20EP rotary head Full radio remote controls Cummins QSB 4.5 turbocharged, water cooled engine (EU Stage lV)
