Genie Z 80/60

Cena bez PVN

Compnay LOGO
Images11
Genie Z 80/60 Strēles pacēlāji
Genie Z 80/60 Strēles pacēlāji
Genie Z 80/60 Strēles pacēlāji
FavoriteIzlase
shareDalīties
Save searchSaglabāt meklējumu
Drukāt

INFORMĀCIJA

Produktu grupa
Strēles pacēlāji
Zīmols / modelis
Genie Z 80/60
Ražošanas gads
2011
Darba stundu skaits
980 h
Mašīnas atrašanās vieta
Eatontown, New Jersey
Valsts
Amerikas Savienotās Valstis
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
0C222FED

IZCENOJUMS

Izvēlieties valūtu

PAPILDUS INFORMĀCIJA

Papildinformācija

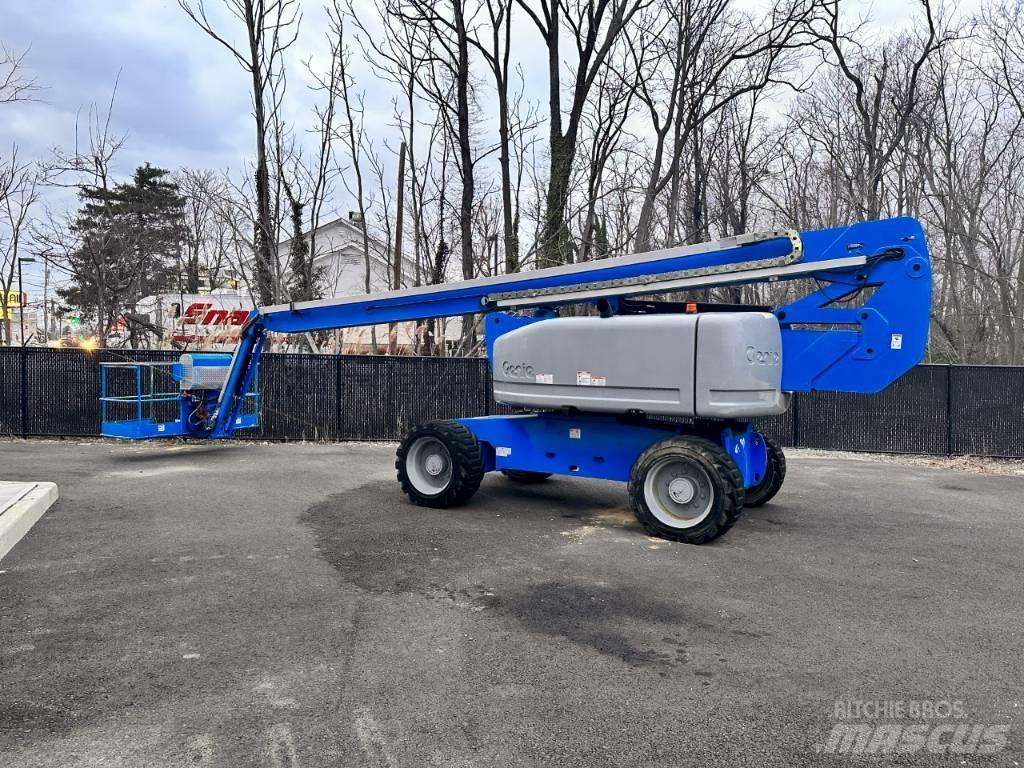

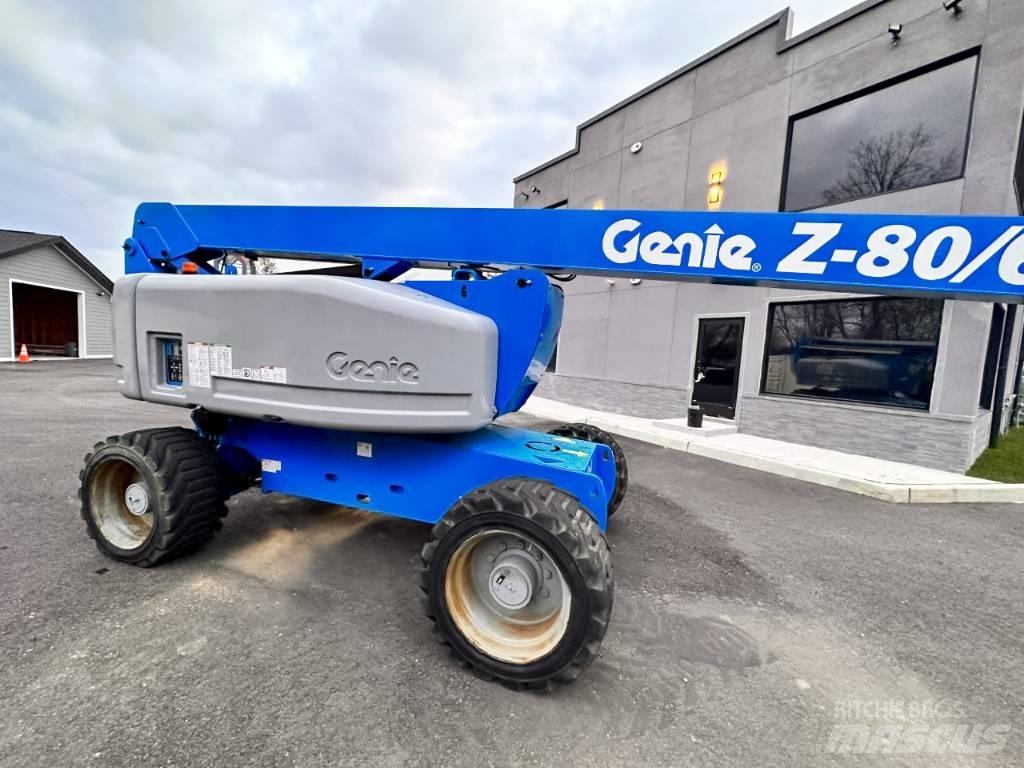

2011 Genie Z-80 Articulated Boom Lift This is a used unit with only 980 hours of operation. This versatile and powerful machine offers a wide range of capabilities, making it an ideal choice for a variety of applications. Whether you're working on tough construction projects, heavy-duty industrial jobs, or demanding agricultural tasks, this machine is designed to get the job done efficiently and effectively. With its powerful engine and robust design, you can count on this machine to provide reliable performance for years to come. Measurements: -Working height max.: 84 ft (25.77m) -Platform height max.: 78 ft (23.77m) -Horizontal reach max.: 60 ft (18.29m) -Up and over clearance max.: 29 ft (8.83m) -Below ground reach: 15 ft 10 in (4.83m) -Platform length (A): 3 ft 2 ft 6 in (0.91m 0.76m) -Platform width (B): 8 ft 6 ft (2.44m 1.83m) -Height - stowed (tires) (C): 9 ft 10 in (3.00m) -Length - stowed (tires) (D): 37 ft (11.27m) -Length - storage transport (jib tucked under) (tires) (D): 24 ft 10.5 in (7.3m) -Length - transport (E): 37 ft (11.27m) -Width (F): 8 ft 2 in (2.49m) -Wheelbase (G): 9 ft 4 in (2.85m) -Ground clearance - center (H): 12 in (0.30m) Productivity: -Lift capacity max. - unrestricted: 500 lb (227 kg) -Platform rotation: 160° -Jib length: 6 ft (1.83m) -Vertical jib rotation: 135° -Turntable rotation: 360° -Drive speed - stowed(2): 3.0mph (4.83 km an hour) -Drive speed - raised: 0.68mph (1.1 km an hour) -Gradeability - stowed(2): 30% -Tilt sensor activation (front to back/side to side): 4.5° 4.5° -Turning radius - inside/outside: 14 ft 6 in 24 ft 6 in (4.42m 7.47m) -Tires: 18-625 NHS Power: -Power: Diesel -Auxiliary power unit: 12V DC -Hydraulic tank capacity: 45 gal (170 L) -Fuel tank capacity: 35 gal (132 L) Weight(3) and Floor Loading(4): -Weight, 2 WS: 35,925 lb (16,295 kg) -Weight, 4 WS: 37,525 lb (17,021 kg) -Tire contact pressure: 130 psi (896 kPa) -Occupied floor pressure (tires): 377 psf (18.5 kPa) Sound and Vibration Levels: -Sound Pressure level (ground workstation): 85 dBA -Sound Pressure level (platform workstation): 74 dBA -Vibrations: 8 ft 2 in-s² (2.5m-s2) (NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)Rādīt vairāk

ReQuip Corporation

16516 Washington Dr 92335 Fontana California Amerikas Savienotās Valstis
