Frick RWF II 399H

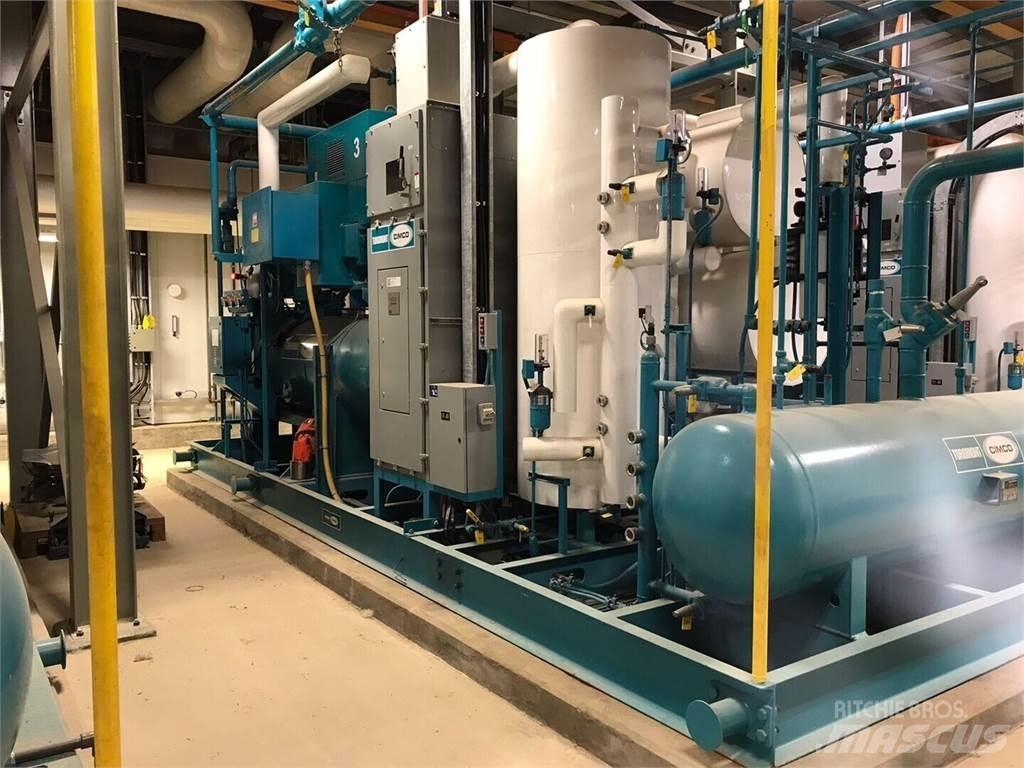

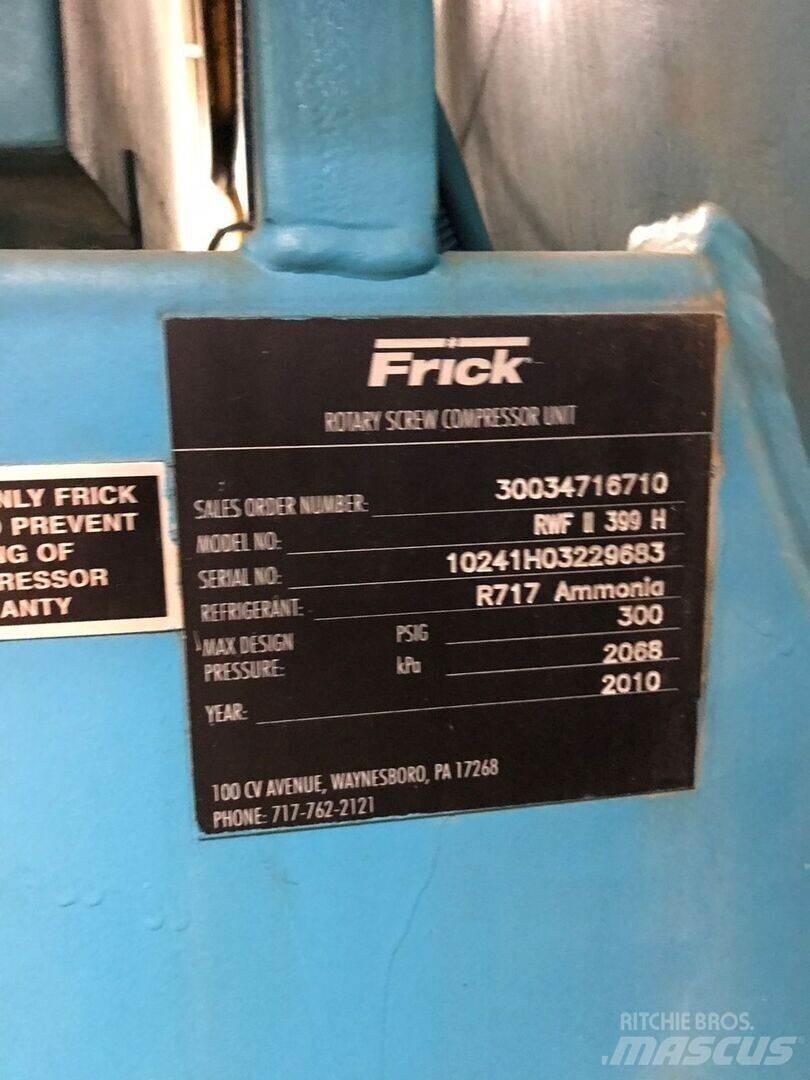

2010 Frick RWF II 399H 800 hp, 2347 CFM Rotary Screw Compressor and Aircooled Condenser Package – HVAC Rooftop HVAC Units – 4160 volts, 2347 cfm, 2347 cfm Title: 800 hp, 2347 CFM Rotary Screw Compressor and Aircooled Condenser Package SKU: 101396 Model: RWF II 399H Year: 2010 Condition: Used ElectricalVoltage:4160volts CFM:2347cfm ** Included Equipment: - One Compressor Package - Three Aircooled Condenser Units [PDF Condenser Units](... Technical Drawings](... Package Package Model: RWF II 399H Refrigerant: R717 Ammonia Max Design Pressure: 300 psig Compressor Model: SGC 2817 Horsepower: 800 hp FLA: 98 A Max. Allowable Pressure: 400 psig Max. Driver Speed: 3580 rpm (3) Aircooled Condenser Units (NH3) Model: S-MCAH 092B/2x5-N(H) Capacity: 1,855,507 Btu/h Air Flow: 155,793 cfm Rated Working Pressure: 464 psi Refrigerant: NH3 Electrical Supply: 575 V, 3-ph, 60 Hz Fan Motor HP: 4 hp Qty Fan Motors Per Condenser: 10 RPM: 910 rpm ** The 50 hp and 25 hp Pump Packages shown in the PDFs above can be purchased at additional cost if desired. ** Contact for more info.
