Vahva FORTI 200

Cena bez PVN

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Rotējošas ierīces
Vahva FORTI 200 Rotējošas ierīces
FavoriteIzlase
shareDalīties
Save searchSaglabāt meklējumu
report adZiņot par aizdomīgu sludinājumu

INFORMĀCIJA

Produktu grupa
Rotējošas ierīces
Zīmols / modelis
Vahva FORTI 200
Reģistrācijas gads
2015
Papildus iespējas
Ex demo
Mašīnas atrašanās vieta
Saue
Valsts
Igaunija
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
24BE0111

IZCENOJUMS

Izvēlieties valūtu

PAPILDUS INFORMĀCIJA

Noliktavas Nr.
VR50000
Apkalpošanas vēsture
Jā
Der šādām mašīnām
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

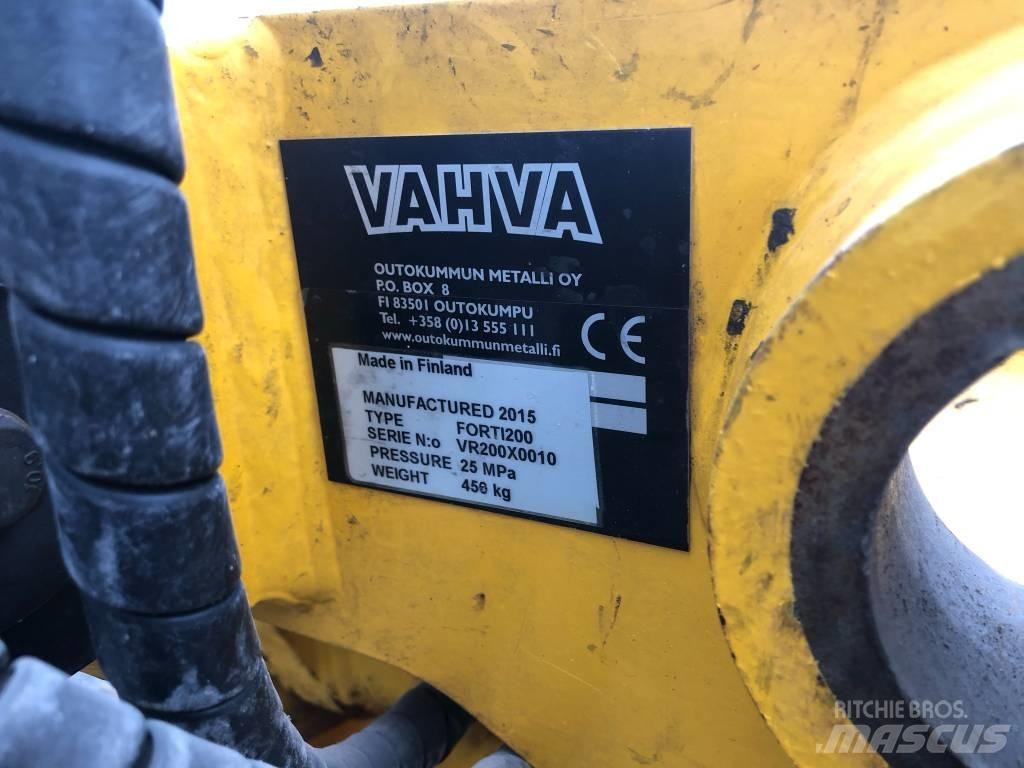

Ražotāja numurs
VR200X0010
Darba spiediens
250 bar
Nepieciešamā hidrauliskā plūsma
80 l/min
Transportēšanas svars
450 kg
Transportēšanas izmēri (GxPxA)
990 x 720 x 280 mm
Ražošanas valsts
Somija
Piegādes nosacījumi
EXW
Sertifikāti
CE
Papildinformācija

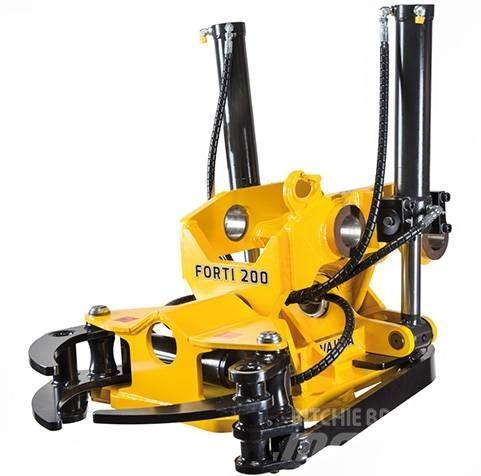

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Rādīt vairāk
