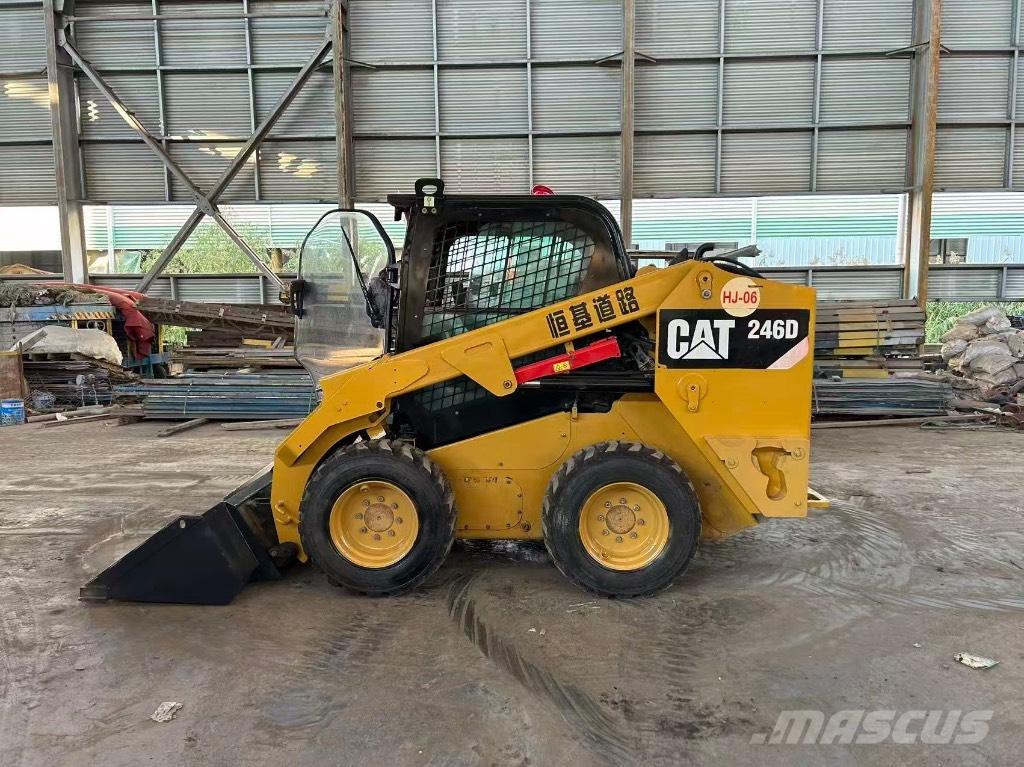

CAT 246 D

The Caterpillar 246D is a sliding-steer loader renowned for its exceptional maneuverability and material handling capabilities. Featuring a vertical lift design, it offers extended outreach and lifting height, making it ideal for tasks such as rapid truck loading. Key Performance Parameters: - Engine: Equipped with a Caterpillar C3.3B turbocharged engine, delivering a net power of approximately 55.4 kW (compliant with EPA Tier 4 Interim/Stage IIIA emission standards). - Working weight: approximately 3,392 kg (can reach higher with optional weight distribution). - Rated working capacity: 1,000 kg (can reach 1,095 kg with optional counterweight). - Hydraulic system: Under standard flow conditions, the loader's hydraulic pressure is 23,000 kPa, and it can reach 28,000 kPa in high-flow XPS mode. - Dimensions: The length excluding the bucket is approximately 2993 mm, the width (including tires) is about 1676 mm, and the height of the bucket connecting pin at maximum lifting height is 3154 mm. Operation and Maintenance Features: - The spacious and comfortable cab is equipped with standard seat-mounted adjustable control handles. - Maintenance and servicing include refilling capacities such as approximately 94-105 L for the fuel tank, 52 L for the hydraulic system, and 14 L for the cooling system.
