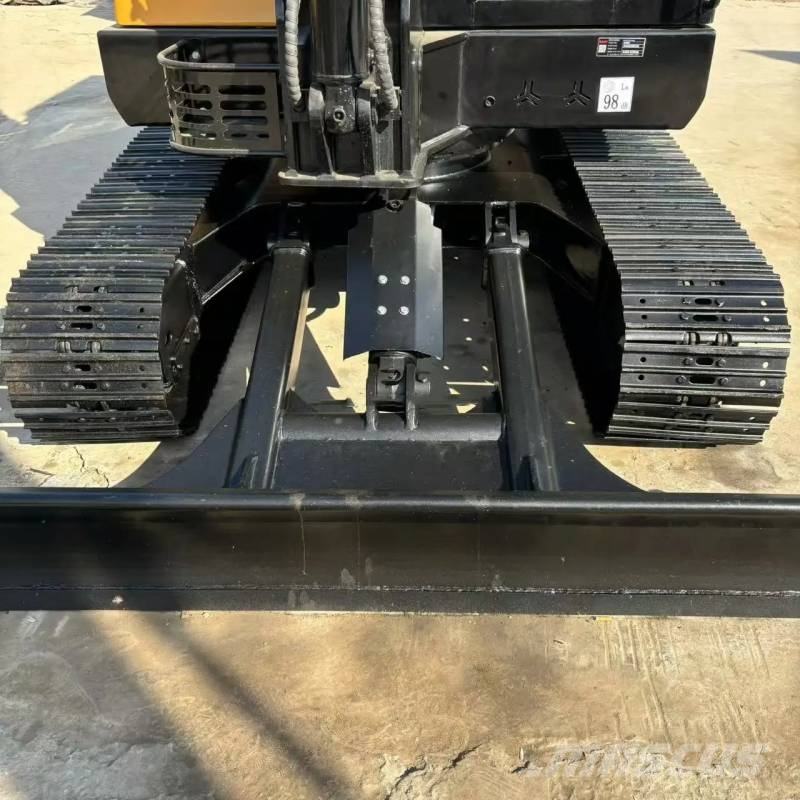

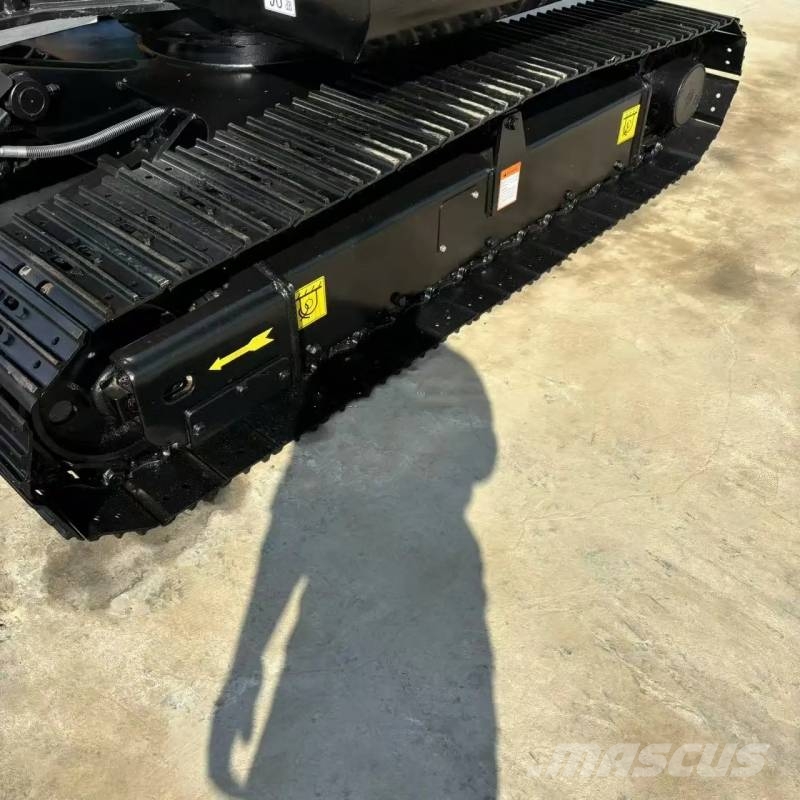

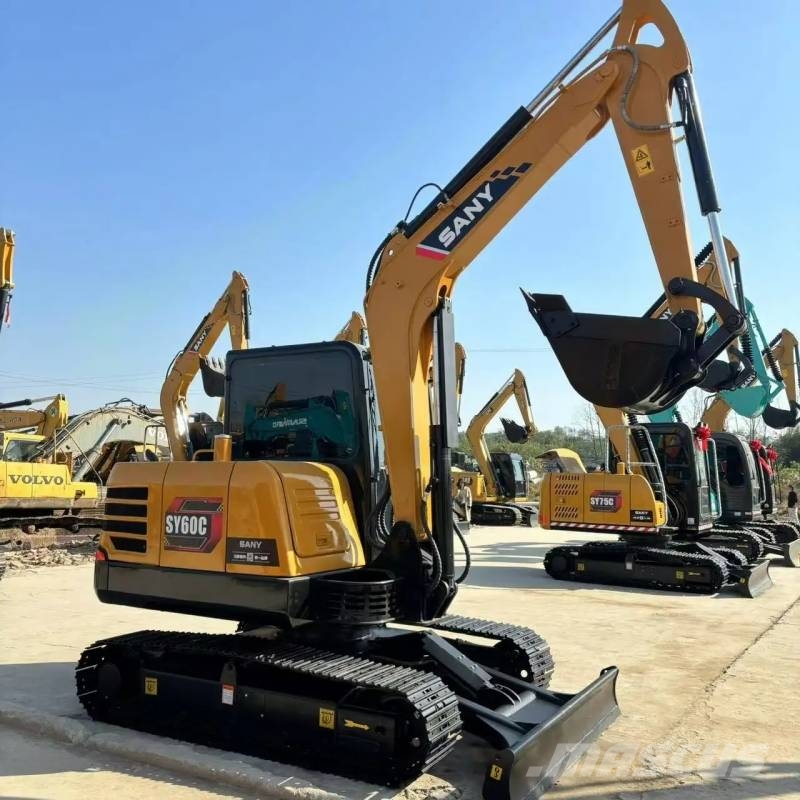

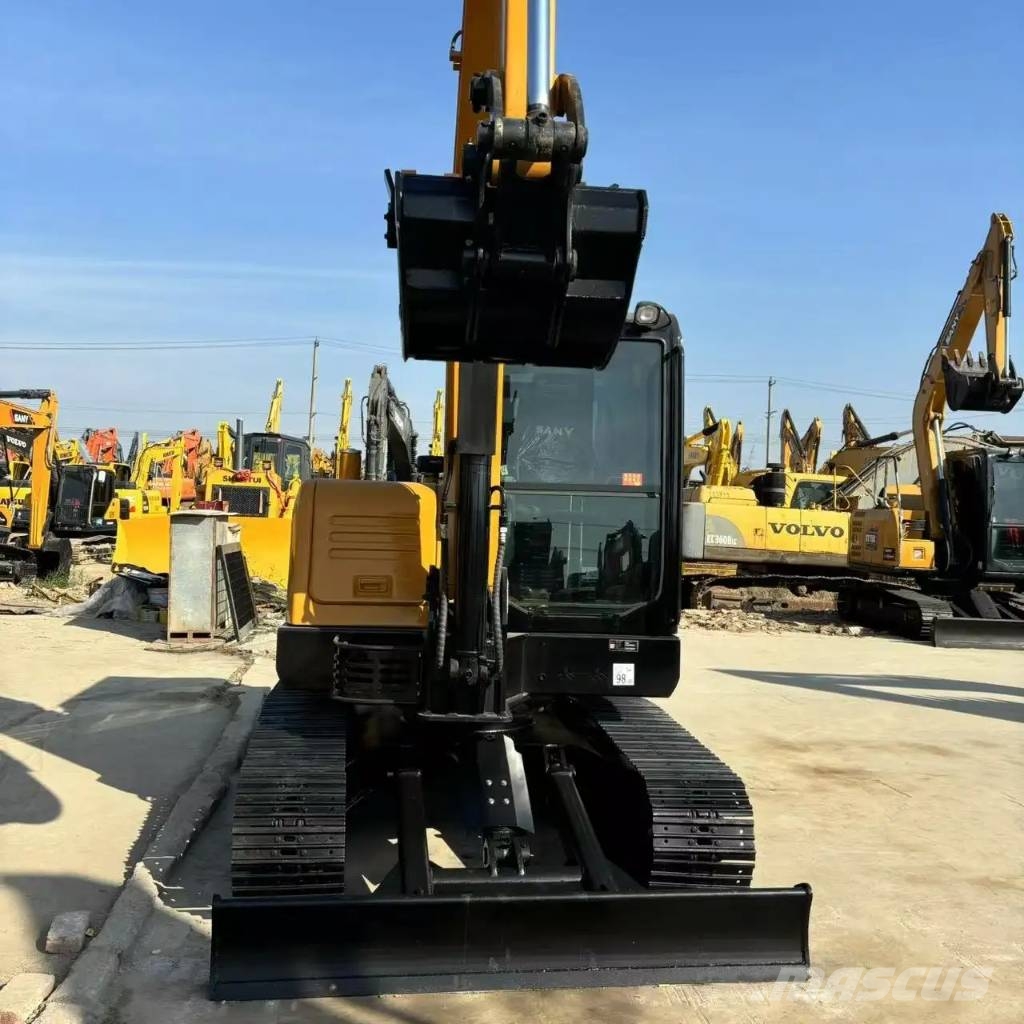

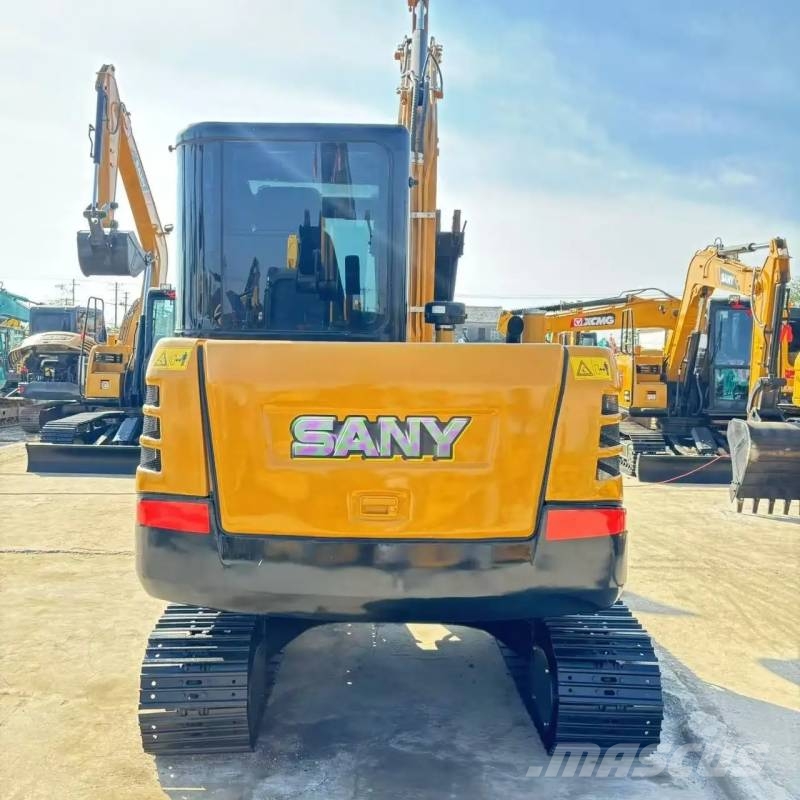

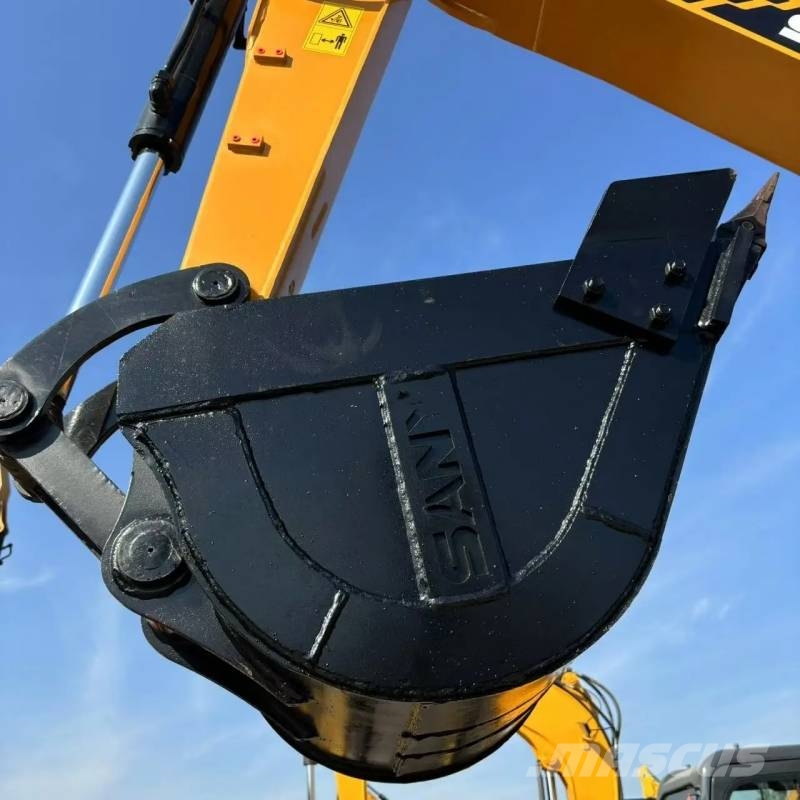

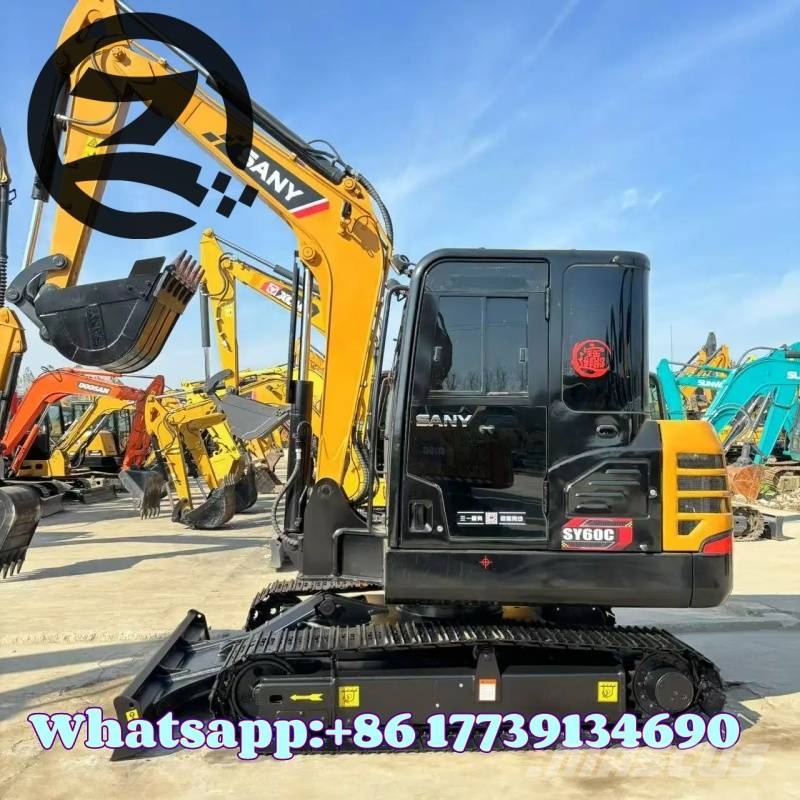

Sany SY 60 C

# SANY SY60C Crawler Excavator Specifications Model: SANY SY60C Operating Weight: 5780 kg Bucket Capacity: 0.21 m³ Transport Dimensions (L×W×H): 6015 × 2005 × 2645 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 4.1 / 2.4 km/h Swing Speed: 10 rpm Bucket Digging Force: 45 kN Arm Digging Force: 33 kN Max Digging Depth: 3990 mm Max Digging Radius: 6280 mm Max Dumping Height: 4020 mm Max Digging Height: 5747 mm Ground Clearance: 330 mm ## Engine Engine Model: Yanmar 4TNV98C Rated Net Power: 42.4 kW / 2000 rpm Displacement: 3319 cc Cylinders: 4 in-line Emission Standard: EU Stage V (Euro 5) Fuel Tank Capacity: 130 L ## Hydraulic System Hydraulic Type: Load sensing hydraulic system Main Pump Max Flow: 149 L/min Max Working Pressure: 28 MPa
