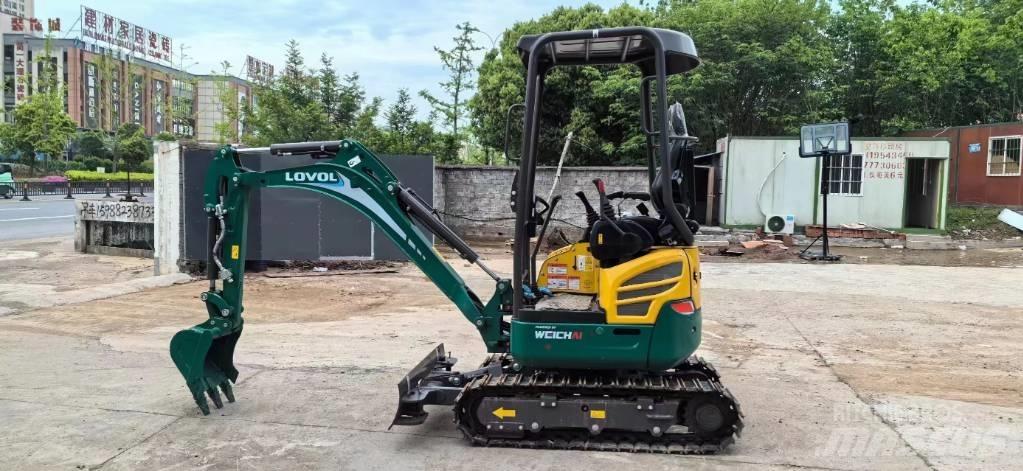

Lovol FR 18F-U

Main Performances: ·Travelling speed(km/h):3.7 ·Swing speed(r/min):9 ·Digging force of bucket(kN):15.2 ·Digging force of arm(kN):8.5 Working Range: ·The maximum excavating height(mm):3540 ·The maximum unloading height(mm):2440 ·The maximum excavating depth(mm):2310 ·The maximum excavating radius(mm):3905 ·The maximum vertical excavating depth(mm):1910 Boundary Dimension: ·Track length(mm):1593 ·Wheel base of track(mm):760/1050 ·The minimum rotation radius of the rear end(mm):640 ·The minimum ground clearance(mm):150 Oil Capacity: ·Fuel tank volume(L):19 ·Hydraulic oil tank volume(L):13 ·Engine oil capacity(L):3.7
