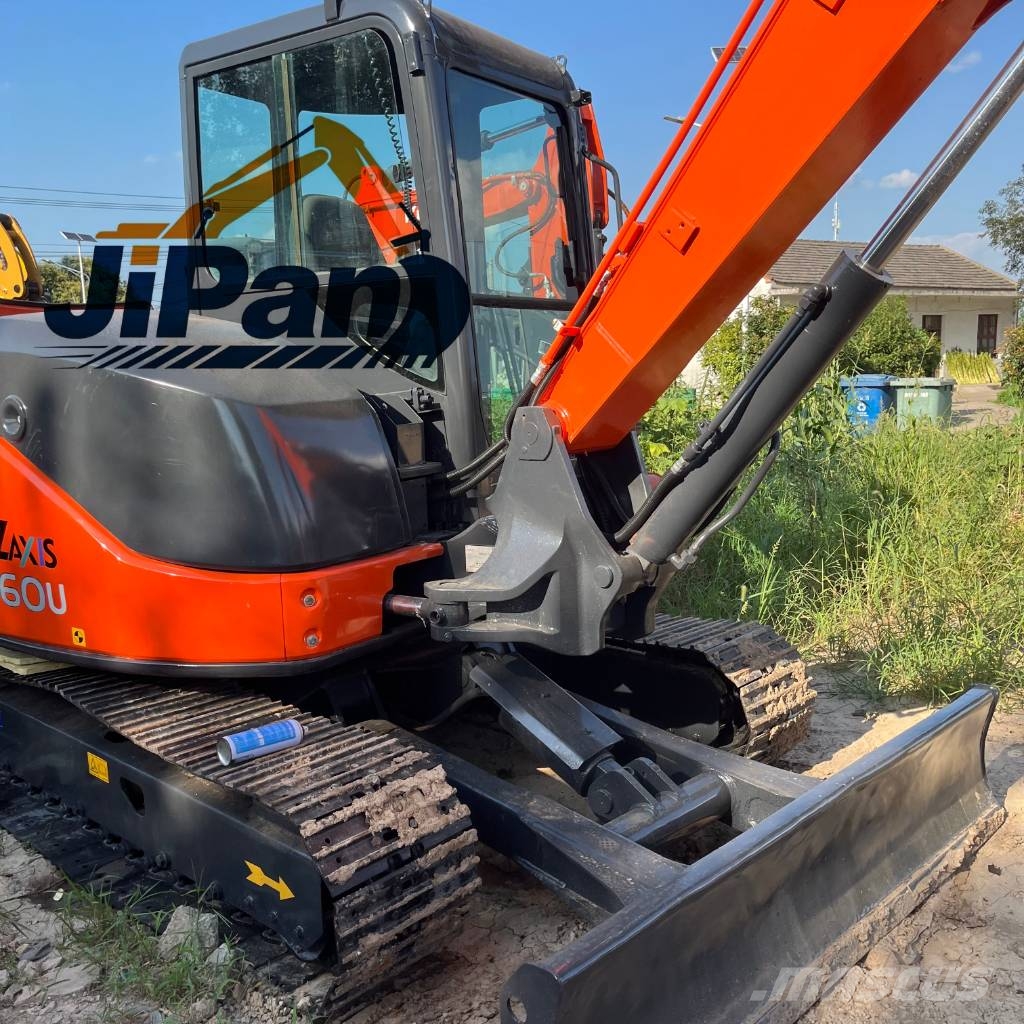

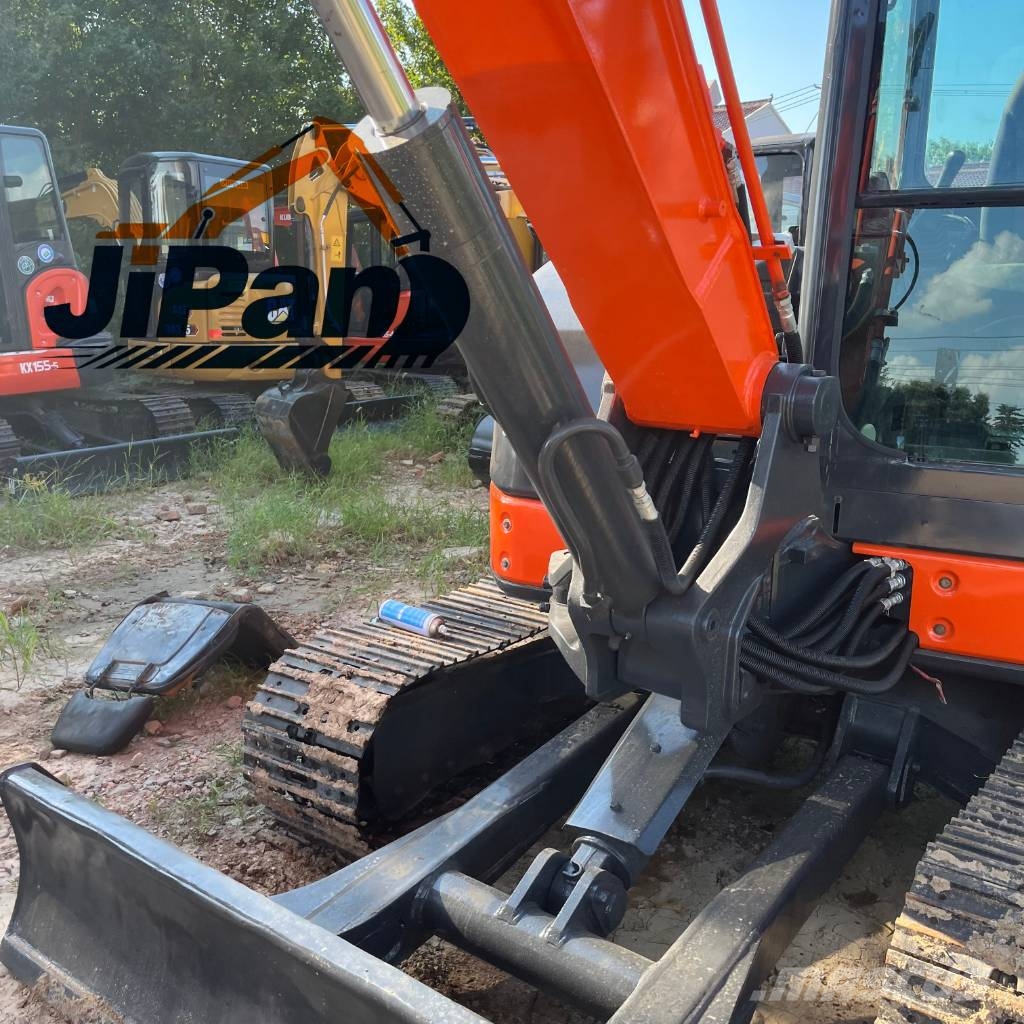

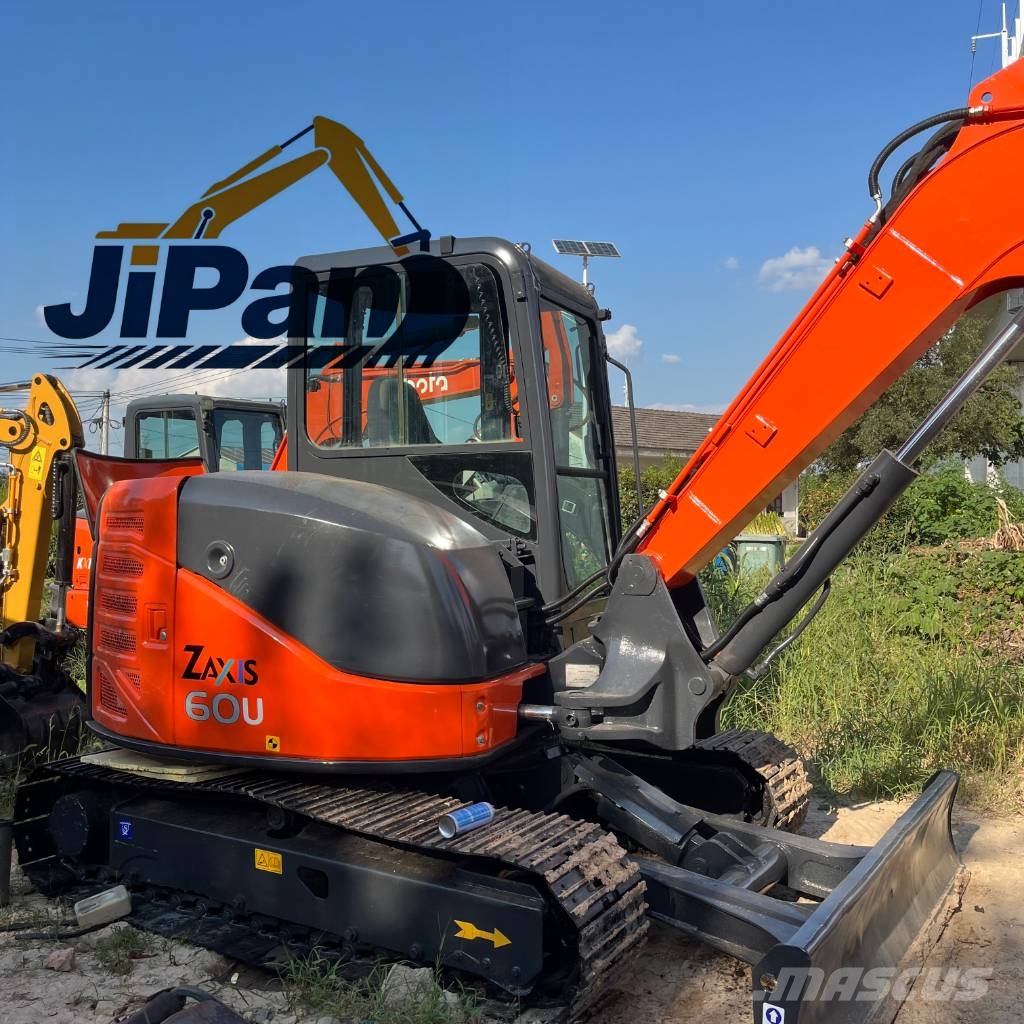

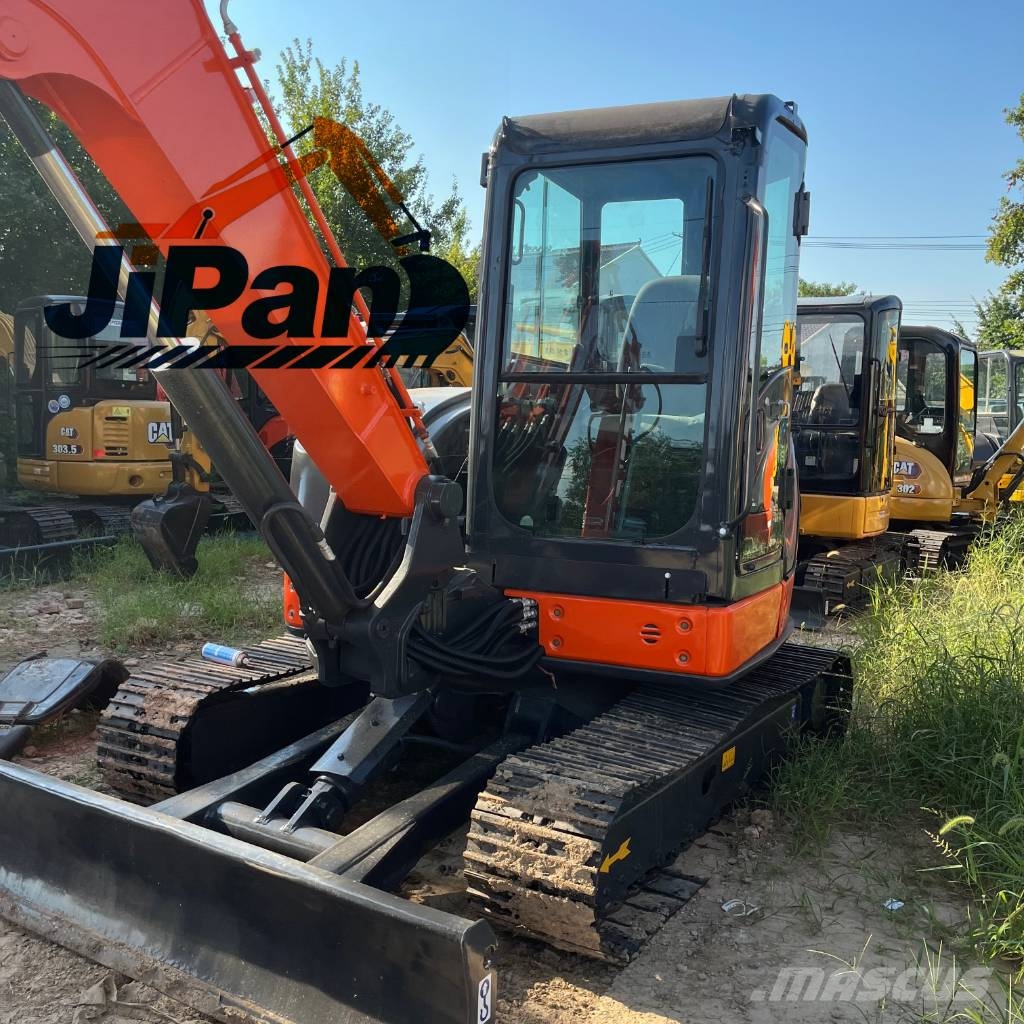

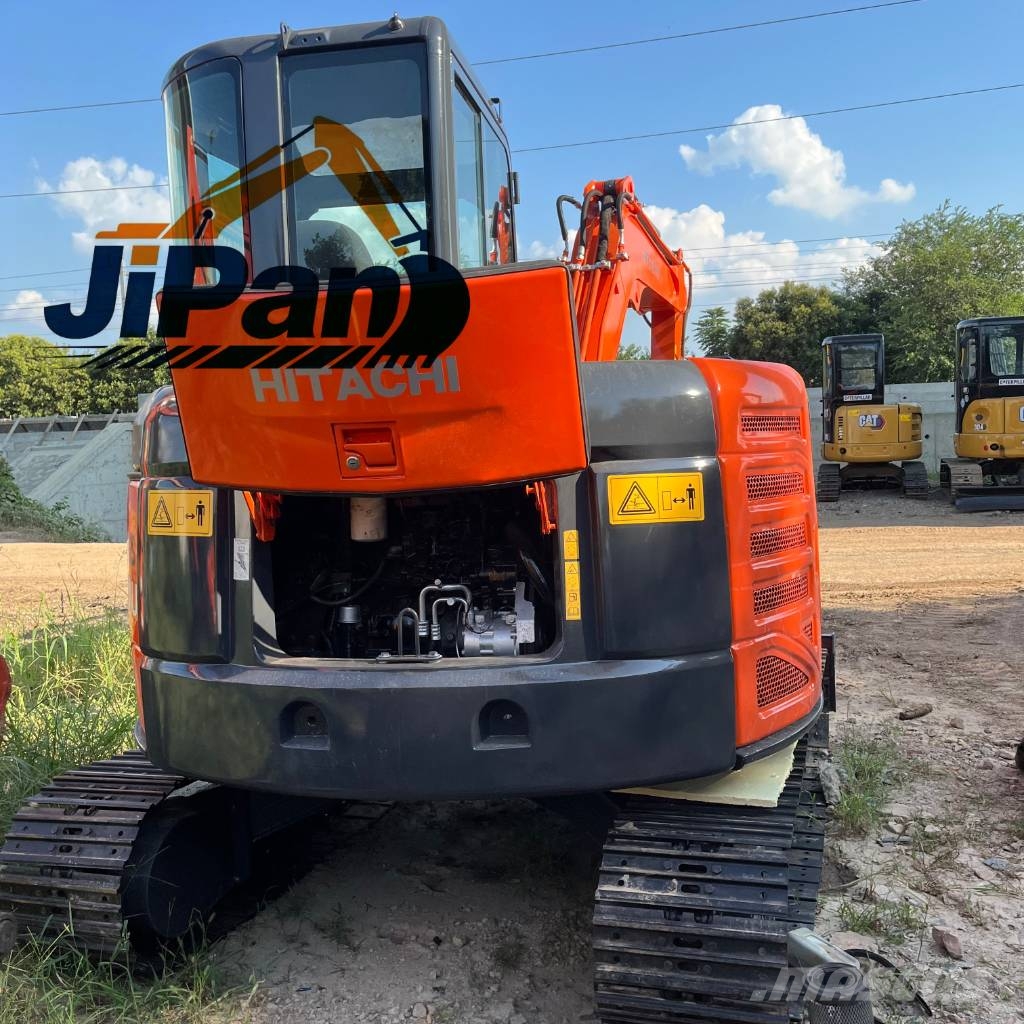

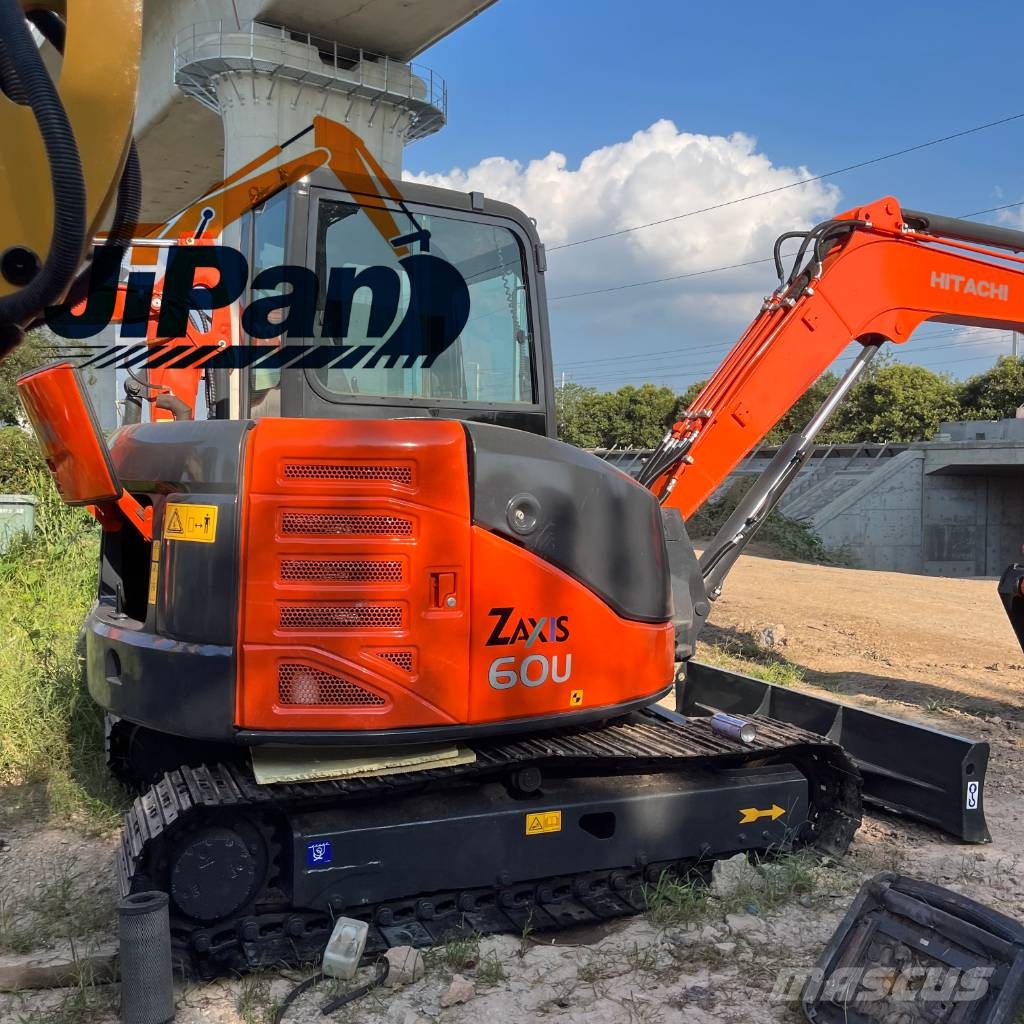

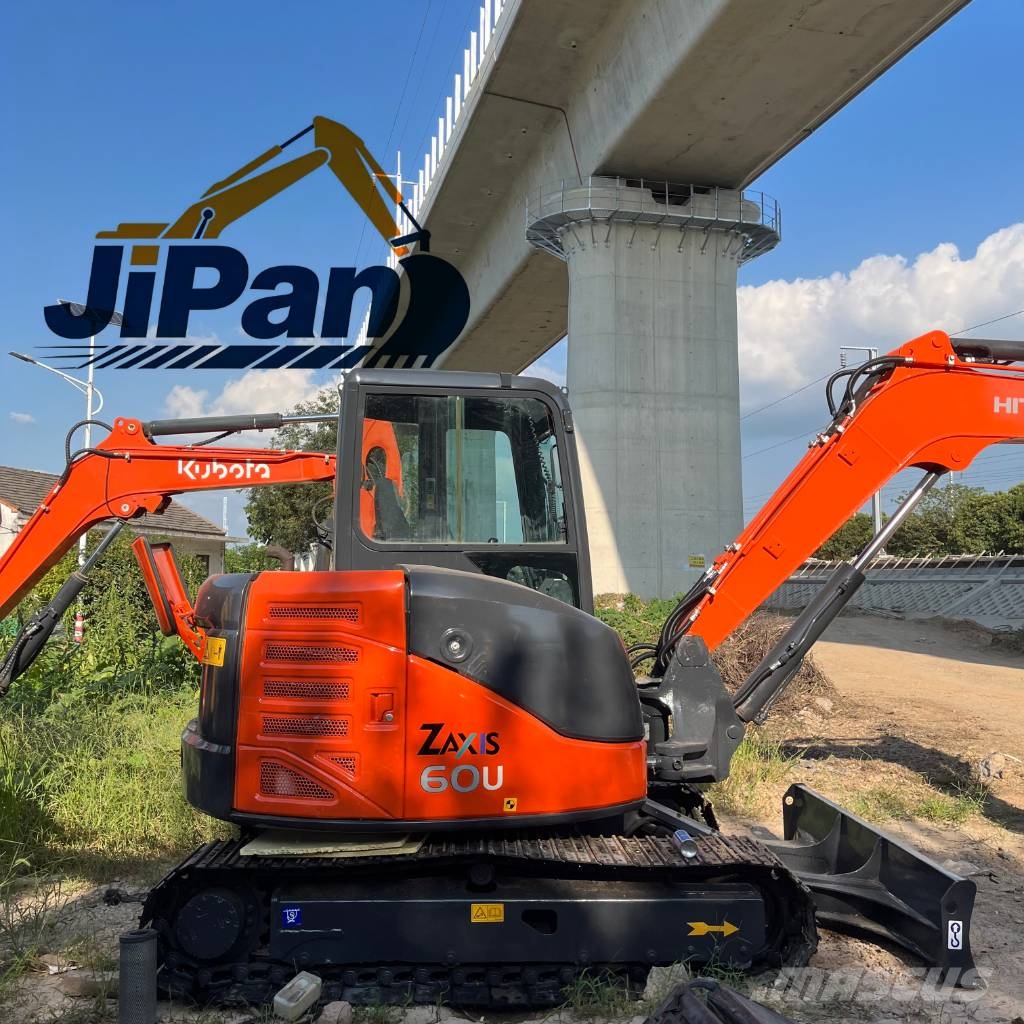

Hitachi ZX 60 U

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp, Clamshell Bucket, Rotary Screen, Crusher Bucket, Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel. Service Hours: 24/7 available, including weekends and public holidays. Address: Shanghai, China Contact Person: Nina WhatsApp: +86 18055199047 Mobile: +86 18055199047 WeChat: 18055199047 Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time-efficient. Bulk Carrier: Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types of machinery. Feel free to select the most suitable transportation method as you need.

Item Specification --- --- Model Yanmar 4TNV88C Type 4-cycle, water-cooled, common rail direct injection diesel Cylinders 4 Gross Power (ISO14396) 39.1 kW (52.4 hp) @ 2400 rpm Net Power (ISO9249) 27.1 kW (36.8 hp) @ 2400 rpm Max Torque 135.8 N·m (100.2 lbf-ft) @1560 rpm Displacement 2.189 L (134 cu.in) Bore × Stroke 88 mm × 90 mm (3.5 in ×3.5 in) Emission Stage V / Tier 4 Final with DPF Battery 12V, 72Ah ×1 ## OPERATING WEIGHT & BUCKET 表格 Item Specification --- --- Operating Weight 6,090 – 6,540 kg (13,426 –14,418 lb) Bucket Capacity (ISO heaped) 0.22 m³ Standard Counterweight 745 kg (1,642 lb) Optional Extra Counterweight 270 kg (595 lb) ## PERFORMANCE DATA 表格 Item Metric Imperial --- --- --- Max Digging Reach (ground level) 6.56 m 21 ft 1 in Max Digging Depth 4.12 m 13 ft 6 in Max Dump Height 4.55 m 14 ft 11 in Max Vertical Wall Dig Depth 3.42 m 11 ft 3 in Swing Speed 9.5 rpm 9.5 rpm Travel Speed (Low / High) 2.4 / 4.2 km/h 1.49 / 2.61 mph Gradeability 30° (58 %) 30° (58 %) Ground Pressure 32.0 – 34.5 kPa 4.6 – 5.0 psi ## HYDRAULIC SYSTEM 表格 Item Specification --- --- System Type Closed-center load sensing, Hitachi HHH hydraulic system Main Pump Variable displacement piston pump Max Main Flow 120 L/min (31.7 gpm) Auxiliary Flow 87.5 L/min (23.1 gpm) Implement Relief Pressure 24.5 MPa (3,553 psi) Swing Circuit Pressure 18.3 MPa (2,654 psi) Travel Circuit Pressure 24.5 MPa (3,553 psi) Pilot Pressure 4.1 MPa (595 psi) Hydraulic Motors Travel: 2 × variable axial piston; Swing: 1 × axial piston Working Modes Eco / Power mode + Auto-idle ### Hydraulic Cylinders (Bore × Rod) - Boom cylinder: 95 mm ×55 mm - Arm cylinder: 80 mm ×50 mm - Bucket cylinder:75 mm ×45 mm ## DIMENSIONS (Standard rubber track, cab, straight blade) 表格 Dimension Metric Imperial --- --- --- Overall Length (blade forward) 5,790 mm 19 ft 0 in Overall Width 2,000 mm 6 ft 7 in Overall Height (Cab) 2,540 mm 8 ft 4 in Track Shoe Width 400 mm rubber track 16 in Track Gauge 1,600 mm 5 ft 3 in Undercarriage Length 2,500 mm 8 ft 2 in Min Ground Clearance 340 mm 1 ft 1 in Rear Swing Radius (Zero Tail) 1,410 mm 4 ft 8 in Counterweight Clearance 620 mm 2 ft 0 in ## SERVICE REFILL CAPACITIES 表格 Fluid Liters Gallons --- --- --- Fuel Tank 120.0 L 31.7 gal Hydraulic Oil Tank 80.0 L 21.1 gal Full Hydraulic System 107.5 L 28.4 gal Engine Oil 11.2 L 2.9 gal Engine Coolant 7.7 L 2.0 gal Travel Gearbox (each side) 0.9 L 0.2 gal
