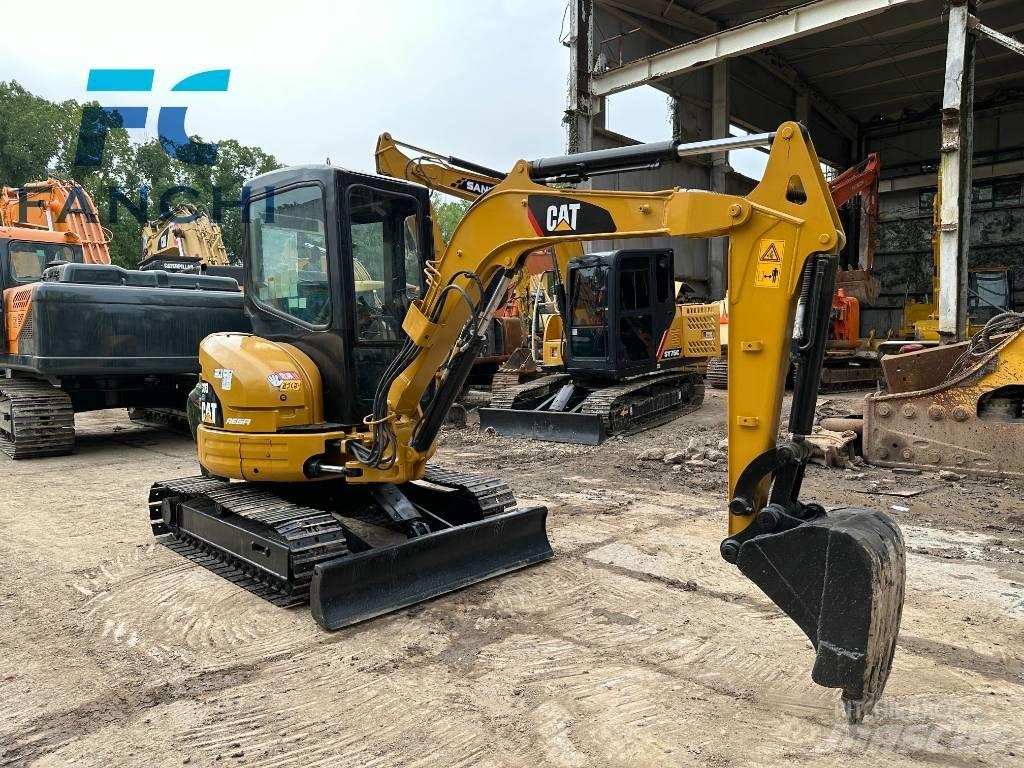

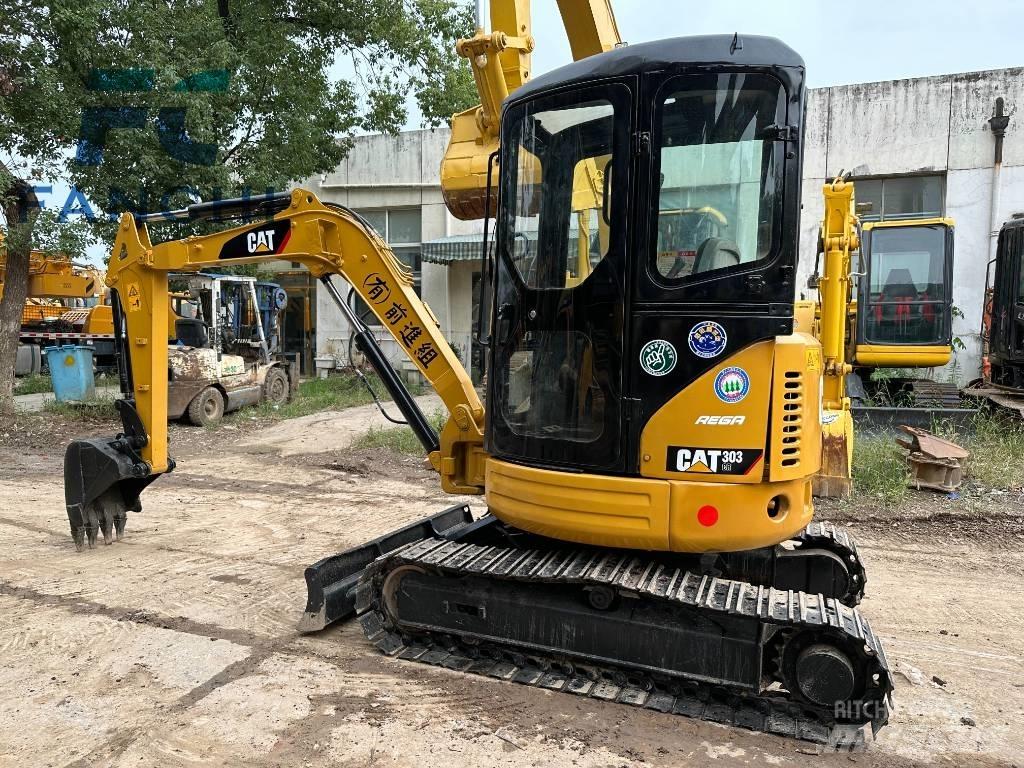

CAT 303 CR

All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.

The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging de
