Pēdējā tehniskā apskate (datums)
2022-02-01
Iepriekšējo īpašnieku skaits
1
Dzinēja jauda
450 kW (612 zirgsp.)
Engine Manufacturer
Liebherr D9508 AZ
Transportēšanas izmēri (GxPxA)
14.1 x 4 x 3.6 mm
Papildinformācija

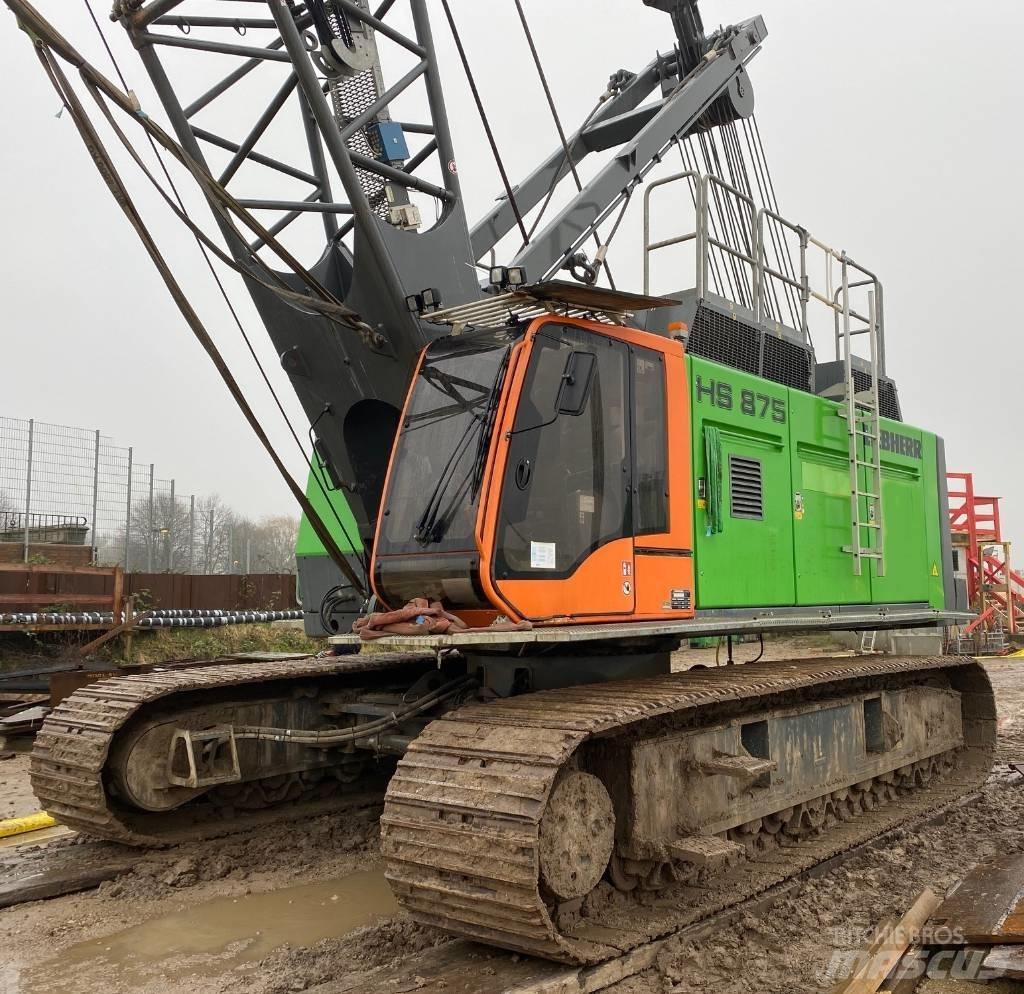

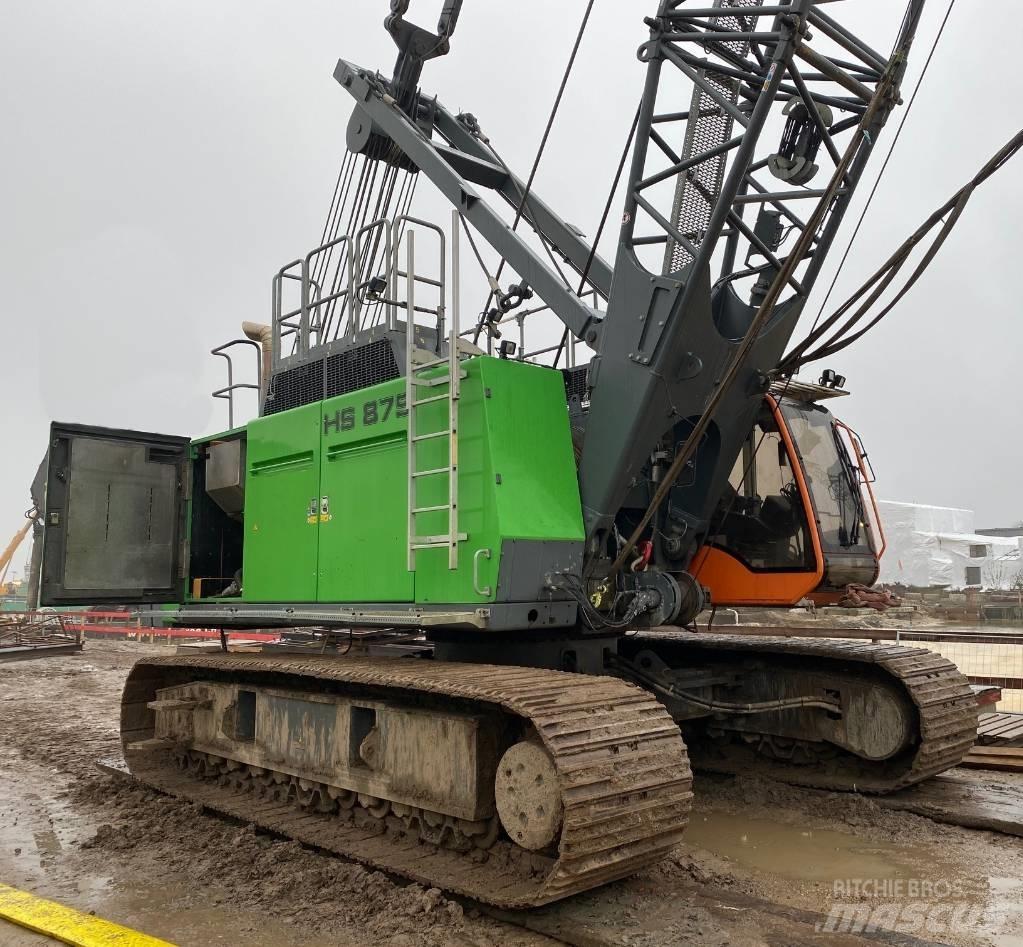

1 X used Liebherr HS 875HD / Ser. No. 185176
Year of construction 2006 / rebuild by Liebherr 2016-2017 with 16.000 operating hours,
service history
2007 Delivery and handover to customer water engineering, only the entire superstructure of the Liebherr HS 875HD was delivered.
2007 Installation on a working ship, firmly mounted on a throwing pillar
2016 Repurchase Liebherr and rebuilding as follows,
- Recovery as a crawler / dragline for use in diaphragm wall work, dragline and crane work.
- Completely new undercarriage
- All winches were exchanged from 12 ton to 30 ton winches new
- Completely new boom approx. 35.5m (the old one was worn out)
- All 4 main pumps were replaced with new ones
- Installation of a new measuring device for diaphragm wall
- Exchange of many other parts, new for old
2017 Sale to customer special foundation engineering
- Complete service history available
2022 Sale to GDS Hamburg
Hours approx. 20082 but hours after rebuilding originally only 3.600
2 x 30 ton winches
winch specification
Version 30 t
Free fall yes
Cable pull (nominal load) 300 KN
Rope diameter 36 mm
1 x main boom extension 6 m
1x main boom joint, 4.2 m
1x main boom section, 3 m
1 x main boom extension 6 m
1 x main boom extension 12 m
1 x Boom Header 6.4m
1 x boom head HS 875 HD 2.7m

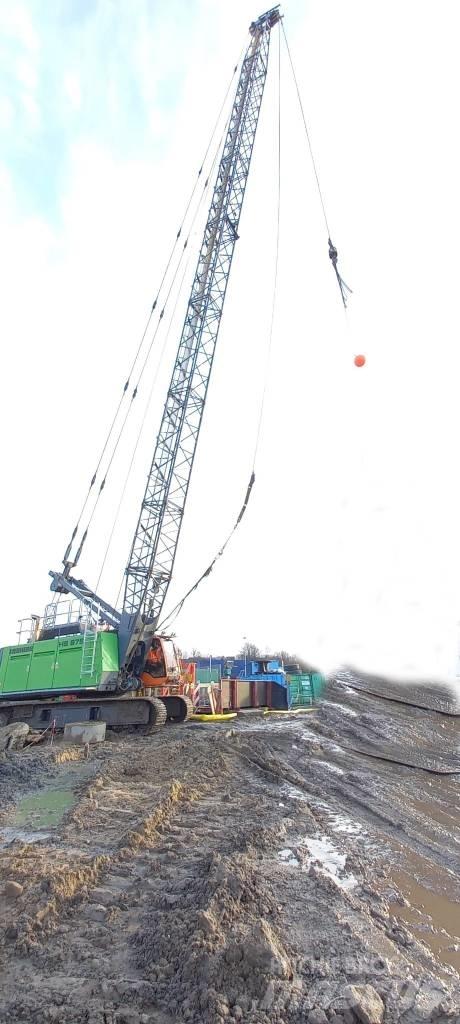

Total length of the jib 35.5 m
1 x single hook 25 tons
Gripper calming winch orig. Liebherr 3.5 tons
Hydraulically adjustable chassis
Base plates 1000mm
Total weight about 93 tonsRādīt vairāk
