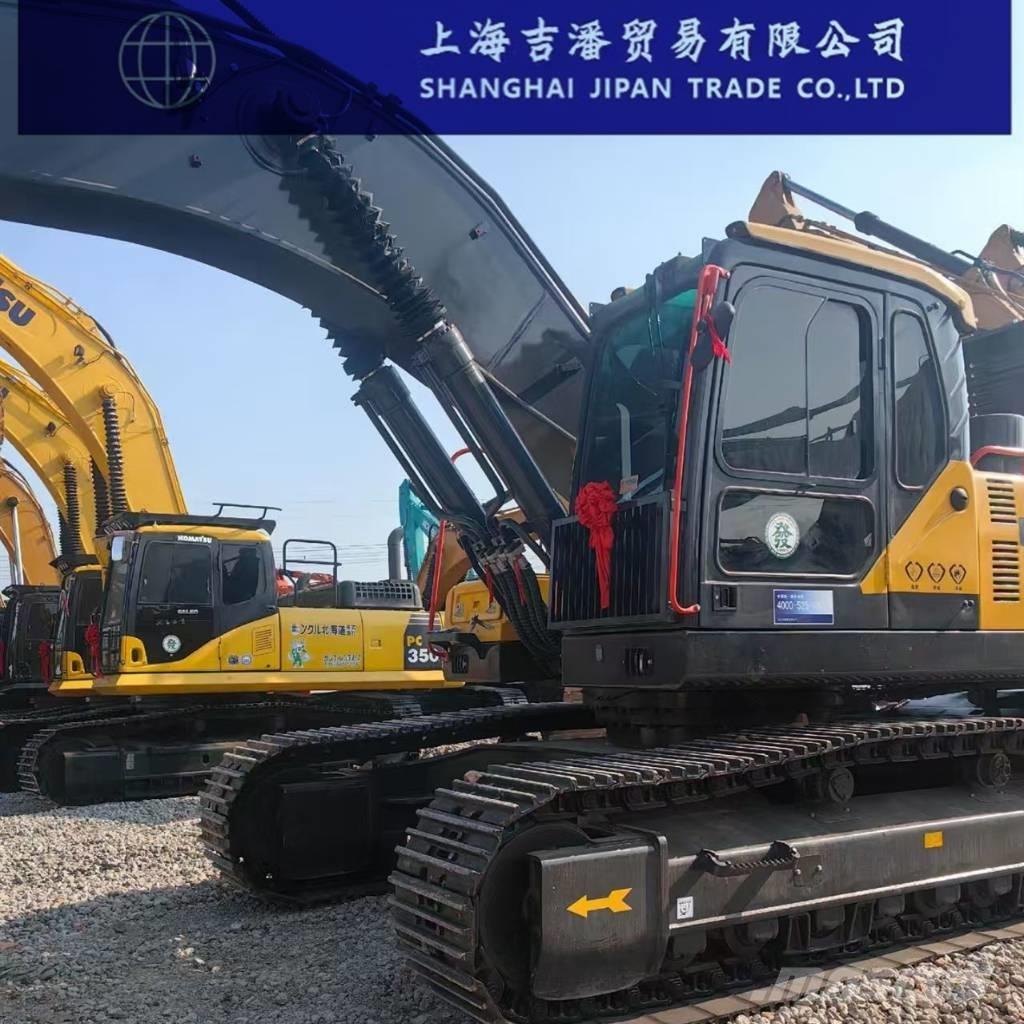

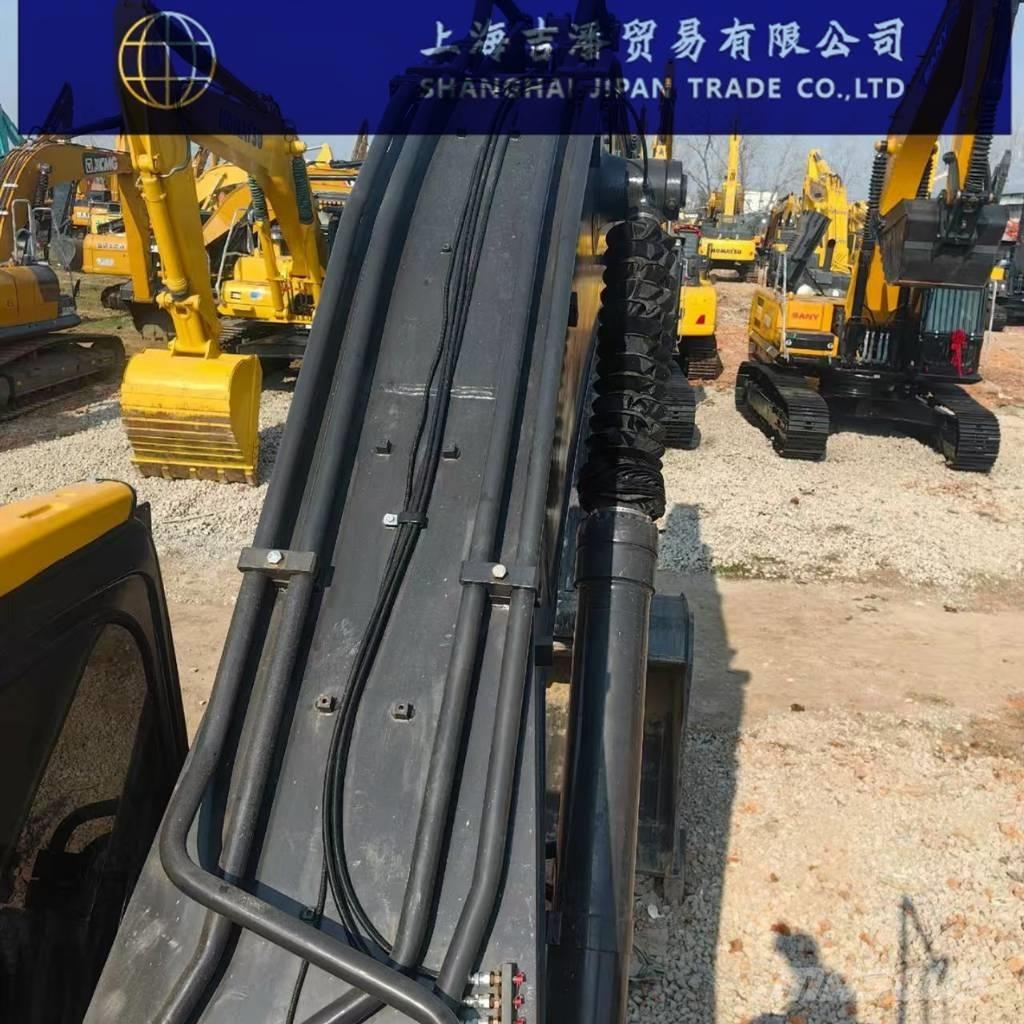

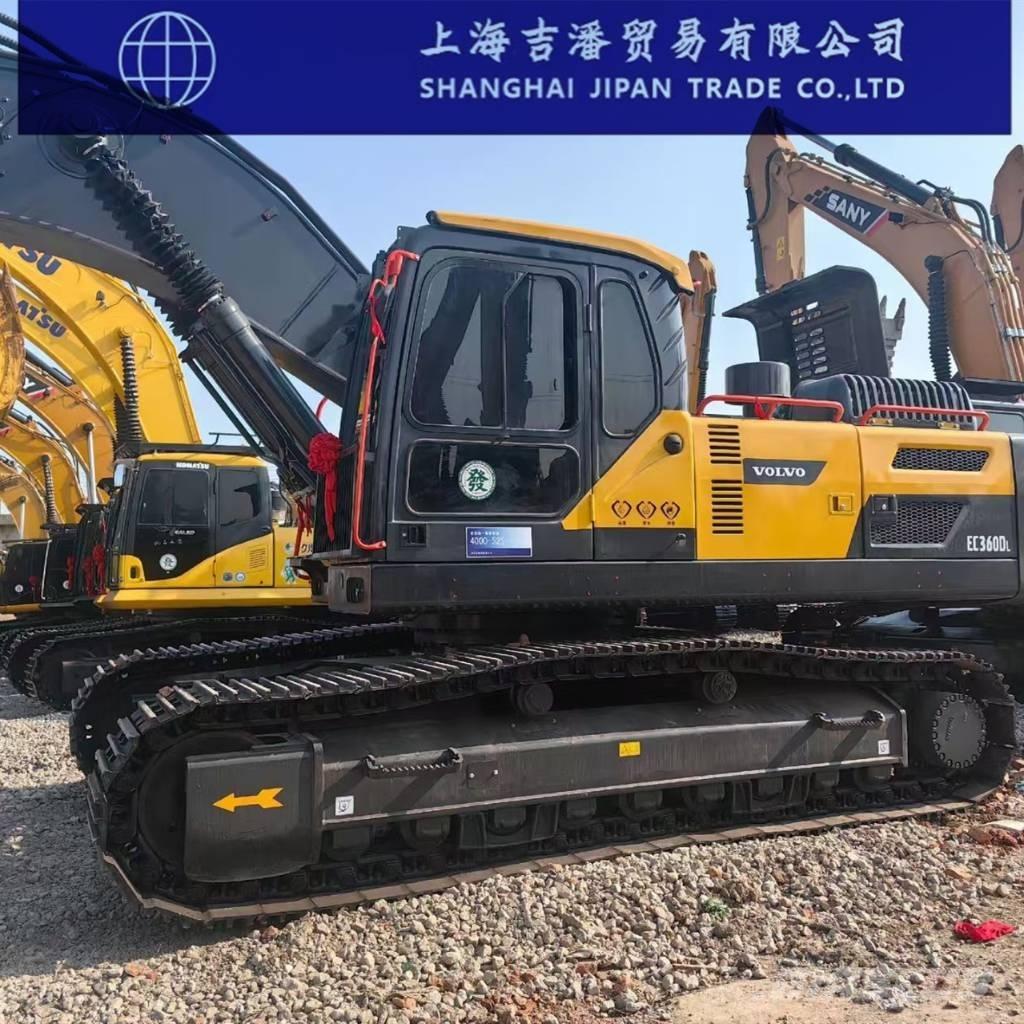

Volvo EC 360

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC360BLC Excavator Parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 36 The working weight of the whole machine (kg) is 36900 Bucket capacity (m³) 1.35-3.0 Boom length (mm) 6450 Stick length (mm) 3200 performance Rotational speed (rpm) 9.7 Travel speed (km/h) 3.3/4.5 Climbing ability (%) 70 Grounding specific pressure (Kpa) 65.9 Bucket Digging Force (kN) 215.0 (Standard Mode) / 236.0 (Afterburner Mode) Stick digging force (kN) 161.0 (standard mode) / 176.0 (afterburner mode) dynamical system Engine model Volvo D12D Rated power (kw/rpm) 198/1700 Maximum torque (N.m) 1475/1275 Displacement (L) 12.1 Number of cylinders (pcs) 6 Bore × stroke (mm) 131×150 Cooling method: Water cooling Working form turbocharged Hydraulic system Main Pump Type: Variable Axial Piston Pump× 2 Variable Pump Traveling hydraulic motor type variable axial piston motor Slewing hydraulic motor type axial plunger hydraulic motor The maximum flow rate of the main pump (l/min) is 280×2 25.5 Working hydraulic oil circuit (Mpa) 31.4/34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing Hydraulic Circuit (Mpa) 25.5 Control Hydraulic Circuit (Mpa) 3.9 Boom cylinder - number × bore × stroke (mm) 2-160×1530 Bucket Cylinder - Number × Bore × Stroke (mm) 1-175×1700 Bucket cylinder - number × bore × stroke (mm) 1-145× 1285 Oil capacity Fuel tank (L) 620 Hydraulic Tank (L) 220 Hydraulic system (L) 500 Engine oil change volume (L) 42 Coolant (L) 60 Body size Total length of transport (mm) 11070 Total width of transport (mm) 3340 Total height of transport (mm) 3350 Cab total height (mm) 3190 Track grounding length (mm) 4240 Total track length (mm) 5180 Track shoe width (mm) 600 Total track width (mm) 3340 Track gauge (mm) 2740 Minimum ground clearance (mm) 500 Counterweight ground clearance (mm) 1210 The minimum turning radius of the front working device (mm) is 4340 Rear end slewing radius (mm) 3390 Scope of work Maximum digging radius (mm) 11180 The maximum excavation radius of the shutdown surface (mm) is 10970 Maximum digging depth (mm) 7490 Maximum digging height (mm) 10320 Maximum unloading height (mm) 7240 Maximum vertical digging depth (mm) 5510 Maximum effective digging depth (mm) 7320
