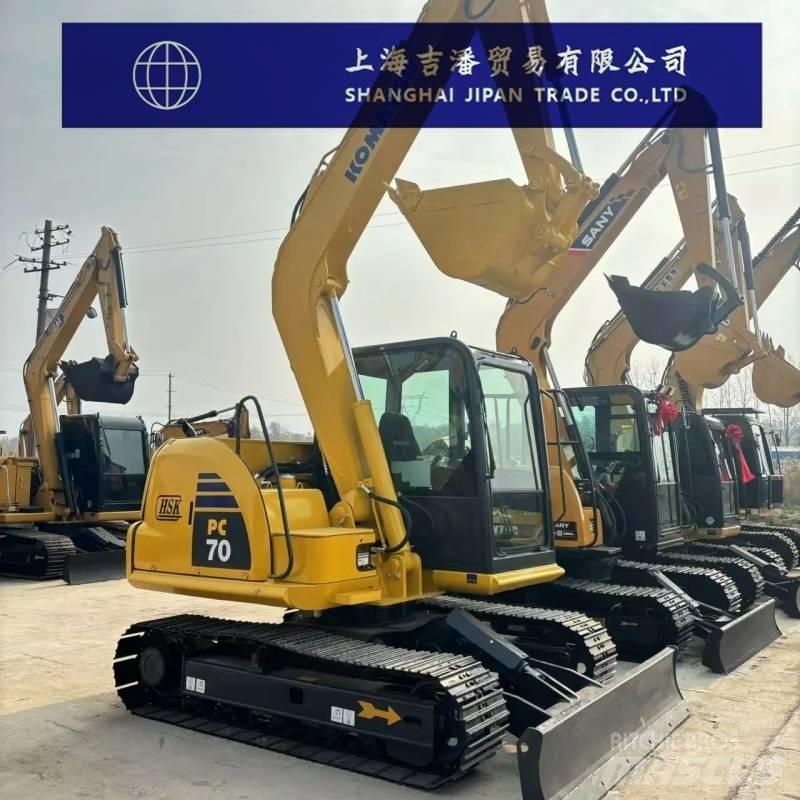

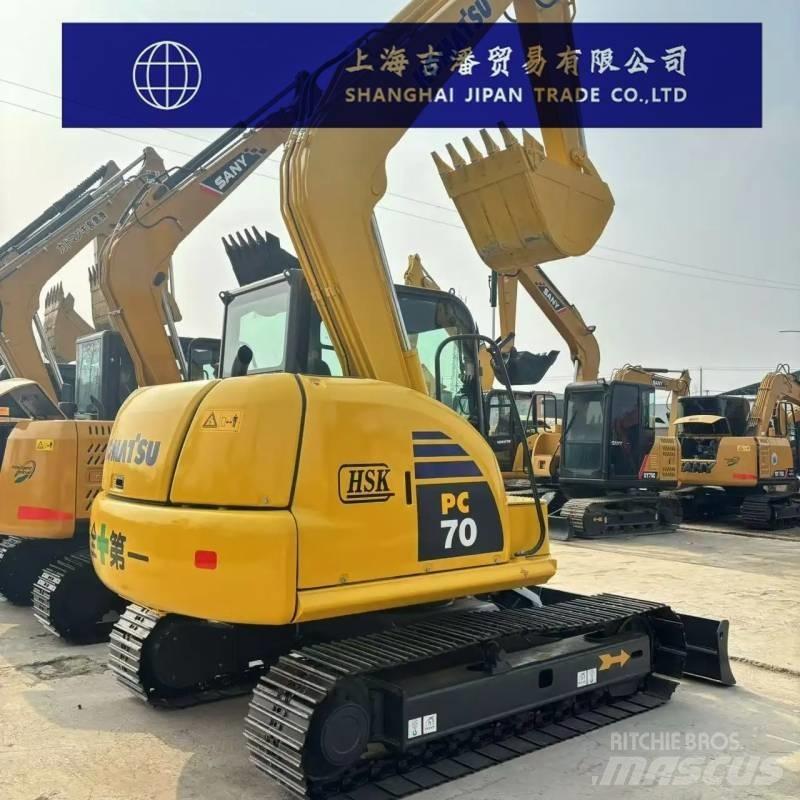

Komatsu PC 70
Cena bez PVN
Drukāt
INFORMĀCIJA
Produktu grupa
Kāpurķēžu ekskavatori
Zīmols / modelis
Komatsu PC 70
Ražošanas gads
2024
Darba stundu skaits
520 h
Valsts
Ķīna
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
8C7AEDFF
IZCENOJUMS
Izvēlieties valūtu
PAPILDUS INFORMĀCIJA
Noliktavas Nr.
1
Tips
Dīzeļa
Ražotāja numurs
1
Iepriekšējo īpašnieku skaits
1
Pēdējā tehniskā apskate (datums)
2025-07-19
Ritošās daļas kondicionēšana
Good Condition
Dzinējs
Original
Bruto svars
6 500 kg
Dzinēja jauda
48,5 kW (65,9 zirgsp.)
Dzinēja ražotājs
Original
Reģistrācijas numurs
1
Emisijas klase
Fāze V
Kausa ietilpība
0,39 m3
Sliežu platums
450 mm
Papildu hidraulikas izejas parametri
172 l/min
Maksimālais ātrums
5,50 km/h
Transportēšanas izmēri (GxPxA)
6080 x 2225 x 2620 mm
Oriģinālā krāsa
Original Yellow
Kausa/ stieņa garums
1 650 mm
Stāvoklis/garantija
1 Year
Ražošanas valsts
Japāna
Piegādes nosacījumi
FCA, FOB, CIF, EXW
Sertifikāti
EPA, CE
Dažādi piederumi- papildaprīkojums
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Papildaprīkojums
Vīts grozs
Gaisa kondicionētājs
uzkares aprīkojuma hidroslēdzis
gumijas ķēdes
Motora priekšfiltrs
Sijāšanas kauss
Rotējošā bākuguns
Luksuss aprīkojums
Vadības svira
Standarta rakšanas kauss
Kauss ar kabeli
Papildinformācija
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)7
The overall working weight of the machine (kg) is 6500
Bucket capacity (m³) : 0.32-0.39
Boom length (mm) : 3710
The length of the bucket pole (mm) is 1650
Performance
Rotational speed (rpm)11
Walking speed (km/h) : 4.5/2.8
Grounding specific pressure (Kpa)30.2
The bucket digging force (kN) is 54.8
The digging force of the boom (kN) is 38.2
Maximum traction force (kN)56.4
Power system
Engine model: Komatsu SAA4D95LE-5
Rated power (kw/rpm)48.5/1950
Displacement (L) : 3.26
Number of cylinders (4)
Bore × stroke (mm)95*115
The cooling method is water cooling
The working mode is turbocharged and post-cooled
Hydraulic system
The main pump type is a variable piston pump
The maximum flow rate of the main pump (l/min) is 172
Pilot oil circuit (MPa)2.9
Working hydraulic oil circuit (Mpa)24.5
Walking hydraulic circuit (Mpa)24.5
Rotary hydraulic circuit (Mpa)21.1
Boom cylinder - Number × cylinder bore × stroke (mm)1-115*840
Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-100*865
Bucket cylinder - Number × cylinder diameter × stroke (mm)1-90*710
Oil capacity
Fuel tank (L)130
Hydraulic oil tank (L)95
Engine oil change rate (L)12.5
Main body size
Total transportation length (mm) : 6080
Total transportation width (mm)2225
Total transportation height (mm) : 2620
Track grounding length (mm)2130
The total length of the track (mm) is 2765
Track plate width (mm)450
The total width of the track (mm) is 2150
Track gauge (mm)1700
Minimum ground clearance (mm)350
Counterweight ground clearance (mm)750
The rear end rotation radius (mm) is 1750
Number of sprocket rollers (single side) (pieces)1
Number of track plates (single side) (pieces)38
Number of supporting wheels (single side) (pieces)5
Scope of work
Maximum excavation radius (mm) : 6360
The maximum excavation radius (mm) of the shutdown surface is 6220
Maximum excavation depth (mm) : 4100
Maximum excavation height (mm) : 7150
Maximum unloading height (mm) : 5015
Maximum vertical excavation depth (mm) : 3505
