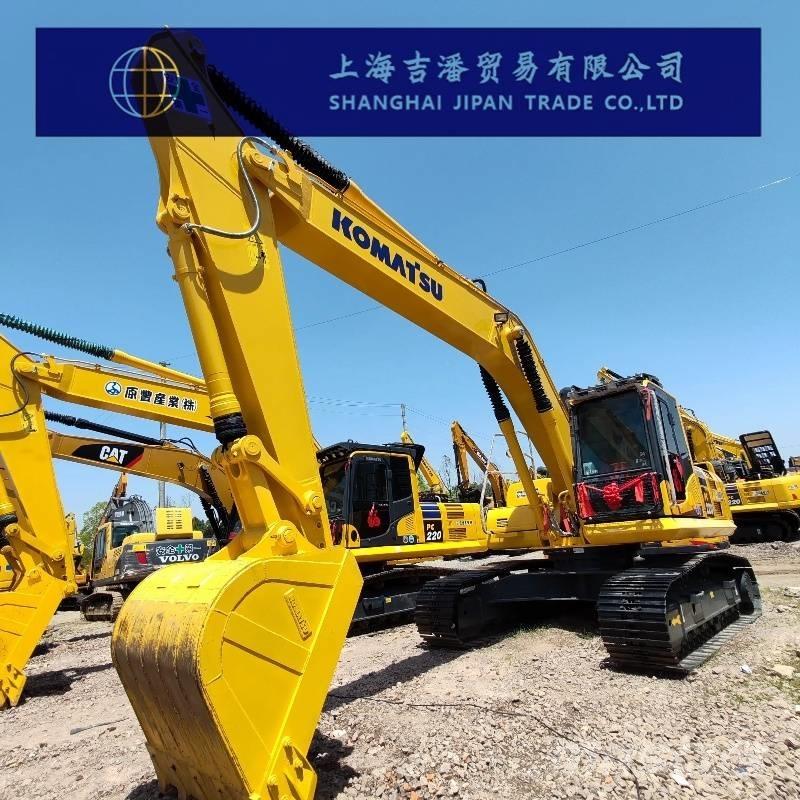

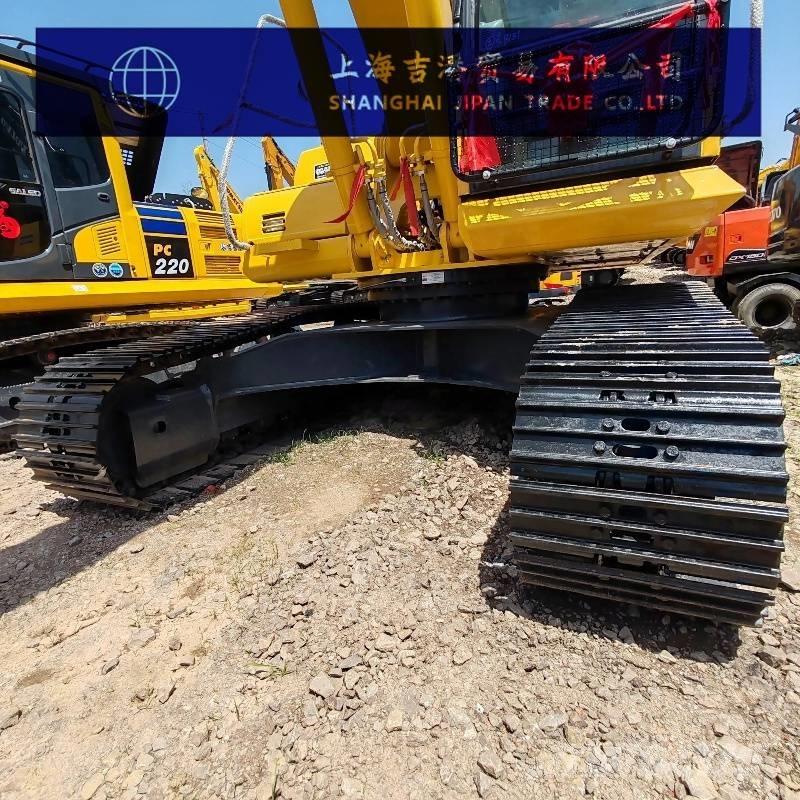

Komatsu PC 220

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC220-8 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe The working weight of the whole machine (kg) is 23100 Bucket capacity (m³) 1 Boom length (mm) 5850 Stick length (mm) 3045 Tonnage (tons) 22 performance Rotational speed (rpm) 11.7 Travel speed (km/h) 3.1/4.2/5.5 Climbing ability (%) 70/35° Grounding specific pressure (Kpa) 50.4 Bucket digging force (kN) 172 Bucket digging force (kN) 129 dynamical system Engine model Komatsu SAA6D107E-1 Rated power (kw/rpm) 110/2000 Displacement (L) 6.69 Number of cylinders (pcs) 6 Cooling method: Water cooling Working form 6-cylinder, direct injection, turbocharged, after-cooled engine; Meets 2006 EPA/Tier 3 and EUIIIA standards. Hydraulic system Slewing Hydraulic Motor Type Axial Piston Motor ×1 (with Slewing Holding Valve) Traveling Hydraulic Motor Type Axial Piston Motor ×2 (with Parking Brake) The maximum flow rate of the main pump (l/min) is 439 Travel Hydraulic Circuit (Mpa) 37.3 Slewing hydraulic circuit (Mpa) 28.9 Control Hydraulic Circuit (Mpa) 3.2 Pilot Oil Circuit Boom cylinder - number × bore × stroke (mm) 130×1335×90 Bucket cylinder - number × bore × stroke (mm) 140×1635×100 Bucket cylinder - number × bore × stroke (mm) 130×1020×90 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 400 Hydraulic Tank (L) 135 Engine oil change volume (L) 23.1 Coolant (L) 19.8 Body size Total length of transport (mm) 9885 Total Transport Width (mm) 5190 Total height of transport (mm) 3185 Cab total height (mm) 3055 Track grounding length (mm) 3460 Total track length (mm) 4260 Track shoe width (mm) 600 Total track width (mm) 2980 Track gauge (mm) 2380 Minimum ground clearance (mm) 440 Counterweight ground clearance (mm) 1100 Rear end turning radius (mm) 2905 Scope of work Maximum digging radius (mm) 10180 The maximum excavation radius of the stopping surface (mm) is 10020 Maximum digging depth (mm) 6920 Maximum digging height (mm) 10000 Maximum unloading height (mm) 7035 Maximum vertical digging depth (mm) 6010 Maximum effective digging depth (mm) 6700 There is no bulldozer shovel for lifting or pushing depth (mm).
