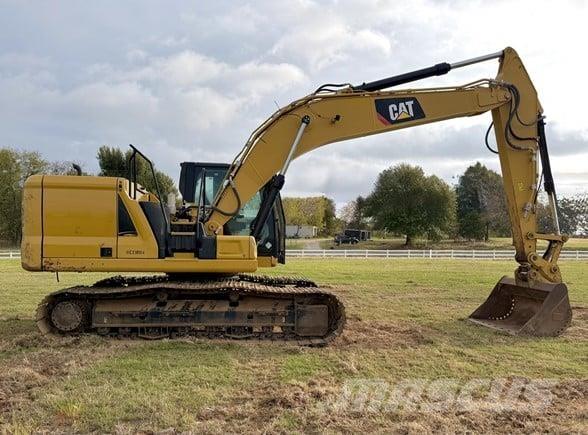

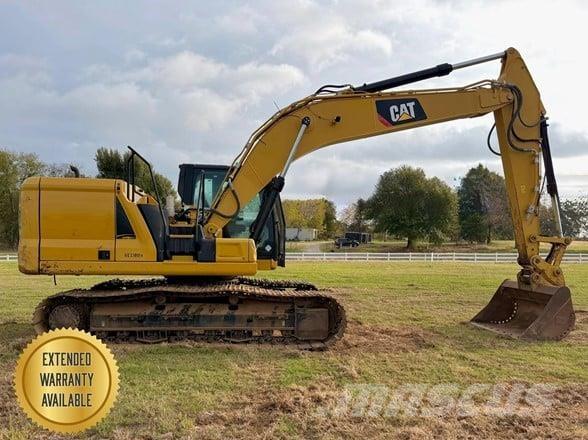

CAT 320

Description: Machine Highlights Year: 2019 Make: Caterpillar Model: 320 Cab High flow auxiliary hydraulics AC/Heat Radio Quick Attach coupler Smooth bucket Hours: 1912 SN: HEX10114 Engine Net Power - ISO 9249: 172 HP Engine Model: Cat C4.4e TTA Engine Power - ISO 14396: 174 HP Bore: 4 in Stroke: 5 in Displacement: 269 in³ Hydraulic System Main System - Maximum Flow: 429 l/min (113 gal/min) Maximum Pressure - Equipment: 5,075 psi Maximum Pressure - Travel: 4,974 psi Maximum Pressure - Swing: 3,988 psi Service Refill Capacities Fuel Tank Capacity: 86.6 gal (US) Cooling System: 6.6 gal (US) Engine Oil: 4 gal (US) Swing Drive - Each: 3.2 gal (US) Final Drive - Each: 1.3 gal (US) Hydraulic System - Including Tank: 61.8 gal (US) Hydraulic Tank: 30.4 gal (US) DEF Tank: 10.3 gal (US) Swing Mechanism Max swing torque: 60,300 ft·lbf Weights Operating Weight: 49,600lbs Working Ranges and forces Maximum Digging Depth: 22.1 ft Boom: Reach 5.7 m (18'8") Stick: Reach 2.9 m (9'6") Bucket: 1.19 m ³ (1.56 yd³) Maximum Reach at Ground Level: 32.4 ft Maximum Cutting Height: 30.8 ft Maximum Loading Height: 21.4 ft Minimum Loading Height: 7.1 ft Maximum Depth Cut for 2440 mm (8 ft) Level Bottom: 21.5 ft Maximum Vertical Wall Digging Depth: 17 ft Bucket Digging Force - ISO: 38,811 lbf Stick Digging Force - ISO: 23,911 lbf Dimensions Boom: Reach 5.7 m (18'8") Stick: Reach 2.9 m (9'6") Bucket: 1.19 m ³ (1.56 yd³) Shipping Height - Top of Cab: 9.8 ft Handrail Height: 9.8 ft Shipping Length: 31 ft Tail Swing Radius: 9.3 ft Counterweight Clearance: 3.4 ft Ground Clearance: 1.6 ft Track Length: 14.7 ft Length to Center of Rollers: 12 ft Track Gauge: 7.9 ft Transport Width: 9.8 ft 2019 CATERPILLAR 320 CAB EXCAVATOR WITH HIGH FLOW AUXILIARY HYDRAULICS, QUICK ATTACH COUPLER, SMOOTH BUCKET, AC/HEAT, RADIO, AND A OPERATING WEIGHT OF 49,600LBS! SE HABLA ESPAÑOL! FINANCING AVAILABLE PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES! Airconditioning: 1 Heater: 1 Ropstype: Enclosed Thumb: 0 Shippinglength: 372.000000000000 Shippingwidth: 115.99999999999992000000000000 Quickattach: 1 Numforwardspeeds: 2 Shippingheight: 115.99999999999992000000000000 Shippingweight: 49600
