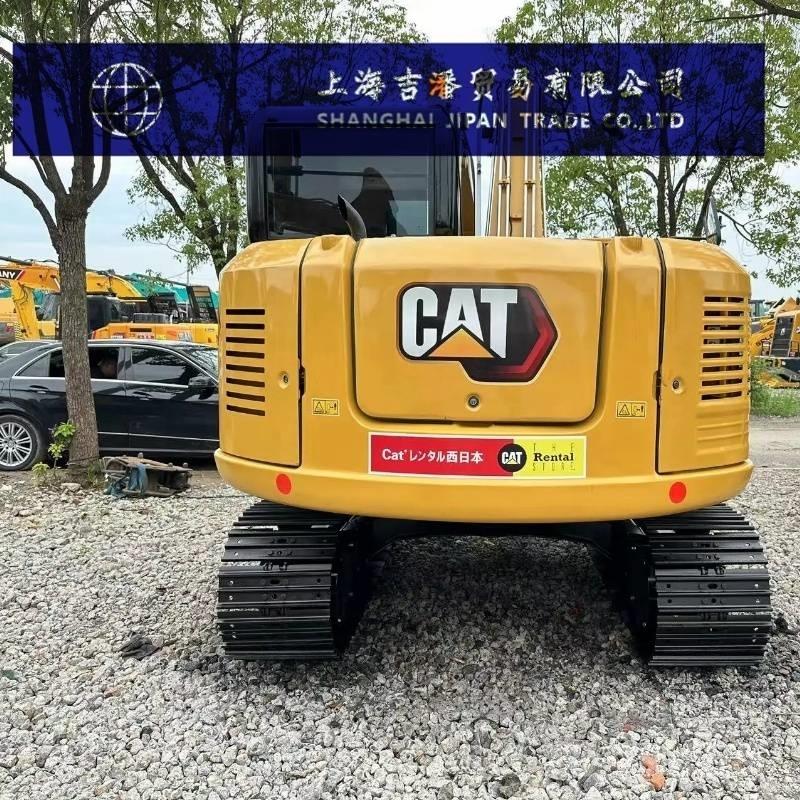

CAT 307 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Caterpillar CAT®307 Mini Hydraulic Excavator Parameter Configuration Price Manufacturer's guide price (yuan) 328,000 specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 7 The working weight of the whole machine (kg) is 7023-7435 Bucket width (mm) 854 Bucket capacity (m³) UD 0.33 Boom length (mm) 3700 Stick length (mm) 1665 performance Rotation speed (rpm) 10.8 Slewing torque (Nm) 16.3 Travel speed (km/h) 3.2~5.1 Bucket digging force (kN) 53.2 Stick digging force (kN) 36.3 Maximum traction (kN) 56.9 dynamical system Engine model Cat® C2.4T Rated power (kw/rpm) 36.5/2400 Displacement (L) 2.43 Bore × stroke (mm) 87×102 Emission Standards Country IV. Hydraulic system Main pump type variable displacement piston pump The maximum flow rate of the main pump (l/min) is 147 Working hydraulic oil circuit (Mpa) 28.5 Traveling Hydraulic Circuit (Mpa) 28.5 Slewing hydraulic circuit (Mpa) 24 Oil capacity Fuel tank (L) 165 Hydraulic Tank (L) 51 Hydraulic System (L) 94 Engine oil change volume (L) 10.2 Coolant (L) 10 Body size Total length of transport (mm) 6055 Total width of transport (mm) 2300 Total height of transport (mm) 2630 Track grounding length (mm) 2120 Total track length (mm) 2760 Track shoe width (mm) 450 Minimum ground clearance (mm) 360 Counterweight ground clearance (mm) 760 Rear end slewing radius (mm) 1750 Scope of work Maximum digging radius (mm) 6300 The maximum excavation radius of the stopping surface (mm) is 6160 Maximum digging depth (mm) 4070 Maximum digging height (mm) 7240 Maximum unloading height (mm) 5200 The width × height of the bulldozer plate (mm) is 2300*450 Bulldozer shovel lifting or pushing depth (mm) 390/350
