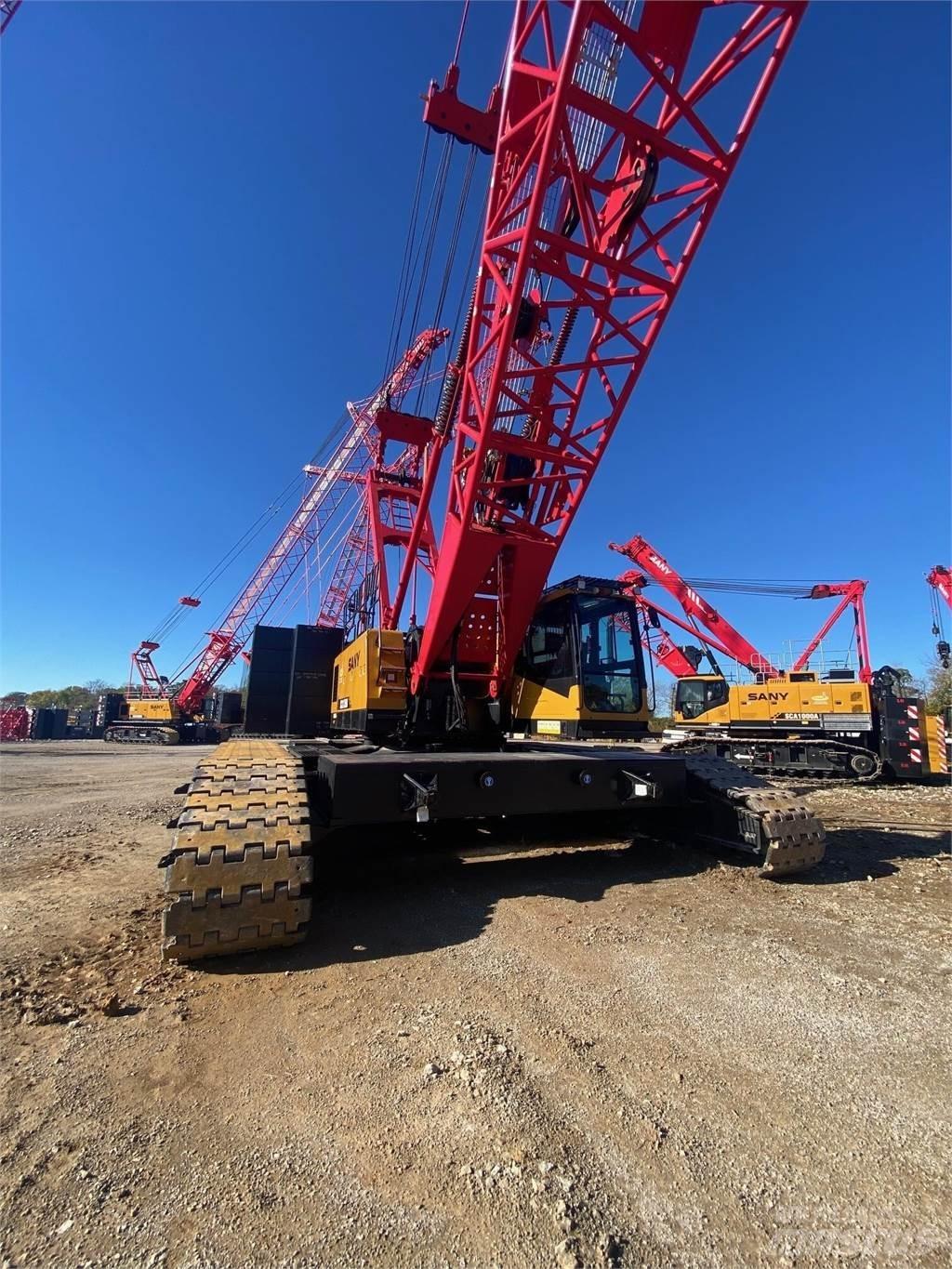

Sany SCA1000A

Name: Sany SCA1000A
Brand: Sany
SKU: AFA6F3BC
Availability: InStock

Cena bez PVN

Cena pēc pieprasījuma

Izlase

Dalīties

Saglabāt meklējumu

Drukāt

INFORMĀCIJA

Produktu grupa

Kāpurķēžu ceļamkrāni

Zīmols / modelis

Sany SCA1000A

Ražošanas gads

2023

Mašīnas atrašanās vieta

Tulsa, Oklahoma

Valsts

Amerikas Savienotās Valstis

Mascus ID

AFA6F3BC

PAPILDUS INFORMĀCIJA

Noliktavas Nr.

New

Papildinformācija

Description: One (1) New SANY America Hydraulic Crawler Crane model SCA1000A (110-ton US) Complete With standard options including • Boom: 210 ft • Fixed Jib: 74 ft • Auxiliary Main Boom Nose • Hoist: Main & Auxiliary • 3rd Drum • LMI System • Block: 100t 5-sheave, 50t 3-sheave, 25t 1-sheave • Ball: 13.50t • Engine: Model: Cummins QSL9-C334 Diesel engine, Type: 4-stroke, water-cooled, Vertical in-line 6 cylinders, direct injection, turbocharger, intercooler, complied with European Off-way Tier IV Emission Standard, displacement: 8.9L, Rated power 249kw/2100rpm, Operation power: 247kW/1800rpm, Max. Torque: 1424N·M/1500rpm. • Electrical Control System Self-developed SYNC-II integrated control system is adopted with Higher integration, precise operation and reliable quality, Control system consists of Power system, engine system, main control system, LMI system, auxiliary system And safety monitoring system. CAN BUS is used for data communication between? Controller, monitor and the engine, Monitor: the working parameters and status are Shown on the monitor, such as the engine speed, fuel volume, engine oil pressure, Servo pressure, engine working hours, lifting conditions and boom angle. • Cab and Control: Novel operator's cab with fashionable profile, nice interior and large Window glass. There are low and high-beam lights, back-view mirror, heater, and A/C, Radio and other functions. The layout of seat, handles, control buttons are designed With ergonomic principles to make operation more comfortable, Cab layout: Integrated 10.4inch touch screen, programmable smart switches, and man-machine interaction Interface are more improved, Armrest box: on the left and right armrest box are controle Handles, electrical switches, emergent stop and ignition switch, the armrest box can be Adjusted along with the seat, seat: multi-way and multi-level floating adjustable seat with Unload switch, A/C: cool and heat air; optimized air channels and vents, Multiple Cameras can present on the monitor at the same time to realize backing video, real-time Monitoring of wire rope on each winch, conditions behind the counterweight and Surrounding the machine • Counterweight: Counterweight tray and blocks are piled up for easier assembly and transport Rear counterweight is self-assembled, total 31.2t, Self-assembled counterweight: tray 9.9t×1, left counterweight block 3.45t×3, and right counterweight block 3.45t × 3, cylinder Bracket 0.6x1, Carbody counterweight: 5.5t×2 at the front and rear of carbody • Crawler Extension and Retraction the crawlers can extend and retract via cylinders. During Work Mode, the crawlers must be extended, and retracted during transport with crawlers on When there are no restrictions • Anemometer: It is mounted on the top of boom/jib, and displayed on the monitor in the Cab. • Electronic Level Gauge It displays the tipping angle of crane on the monitor in real time, Protecting the machine from dangerous situation • •Warranty: 3-year or 3,000-hour Factory Warranty AirConditioning: Yes EngineMake: CUMMINS Heater: Yes Camera: YesRādīt vairāk

CraneCo Crane Sales Inc.

4601 West 61st 74132 Tulsa Oklahoma Amerikas Savienotās Valstis
