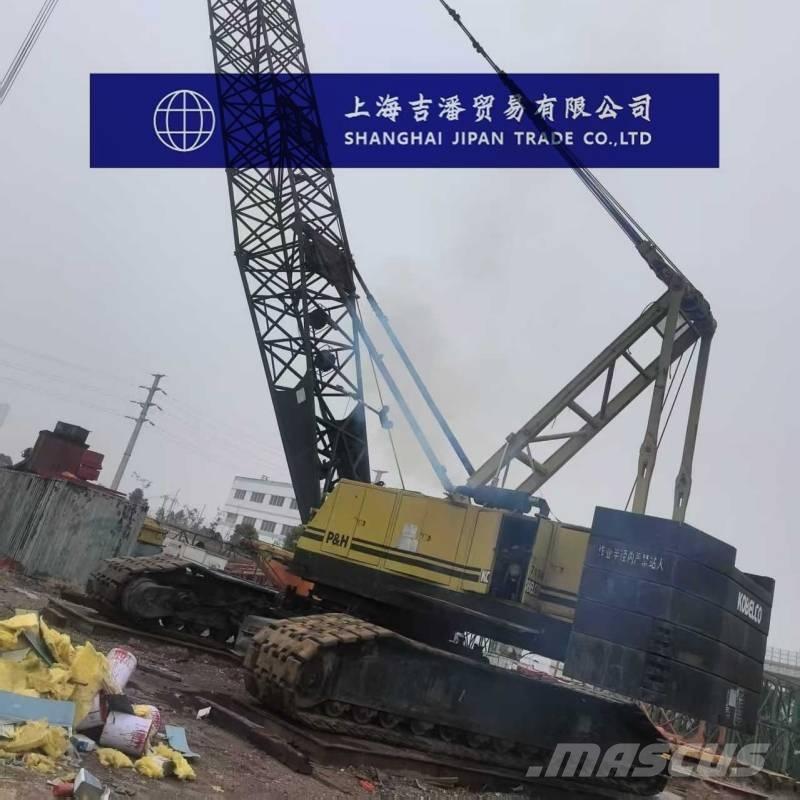

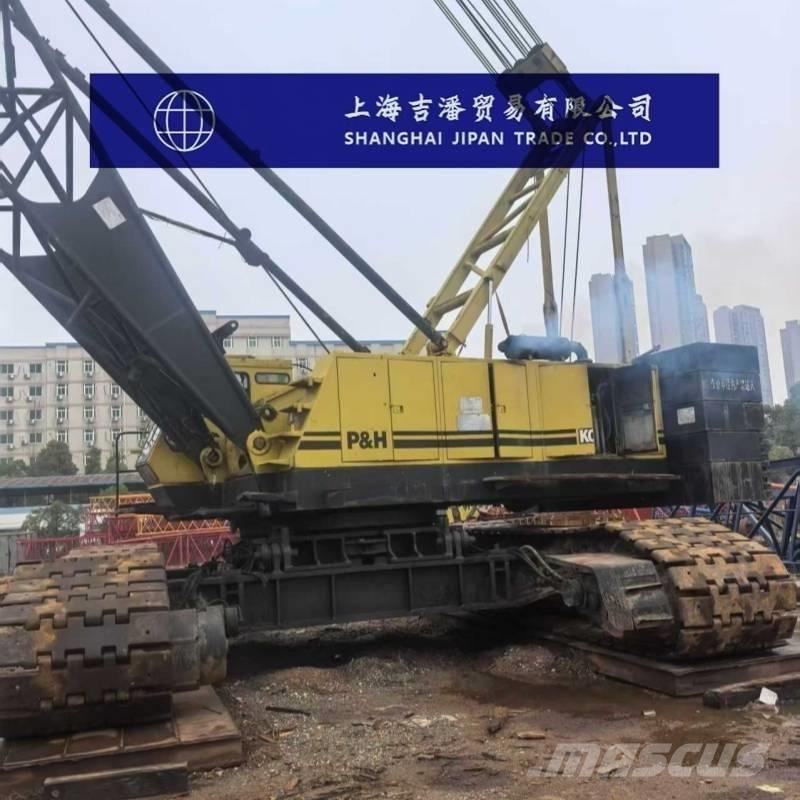

Kobelco 7150

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic parameters Model: KOBELCO 7150 Manufacturer: Kobe Steel Works Lifting capacity:150 tons ×5 meters (basic boom 18.29 meters) Mainframe weight:167 tons Overall dimensions:8155×6820×3770mm (length × width × height) Boom parameters Main arm length:18.29-82.30 meters Auxiliary arm length:12.19-30.48 meters The angles between the main arm and the auxiliary arm:10° and 30° Working performance parameters Rotational speed:2.2rpm Walking speed:1.2km/h Climbing ability:16.7° Grounding specific pressure:0.93kg/cm² when the foundation arm is in operation, and 1.10kg/cm² after being installed on the vehicle body counterweight Power system parameters Engine: Mitsubishi 6D22TC diesel generator Output power:294 horsepower /2000 revolutions per minute Parameters of the hoisting system The hoisting rope speeds of the main and auxiliary winches are 90/60 and 45/30 meters per minute, respectively The rope lowering speeds of the main and auxiliary winches are 90/60 and 45/30 meters per minute, respectively Other parameters The total width of the cab is 3250mm Tail radius (after reassembly):6040mm Tail radius (when the mast is retracted):6690mm The base pin of the boom to the rotation center:1400mm The height from the top of the mast to the ground (working position):7810mm The height from the top of the mast to the ground (retracted):3770mm The height of the counterweight from the ground: 1400mm Total track length:8,155mm Center distance of the walking wheels:7170mm Total width of the track (bottom edge):6670mm Track plate width:1070mm Bottom height from ground:400mm
