Shantui SD13Plus

Cena bez PVN

Cena pēc pieprasījuma

Compnay LOGO
Images2

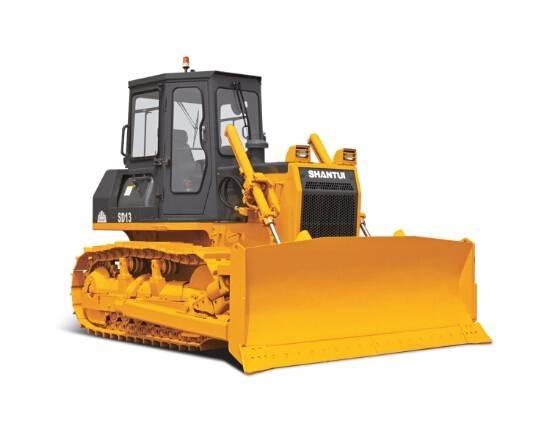

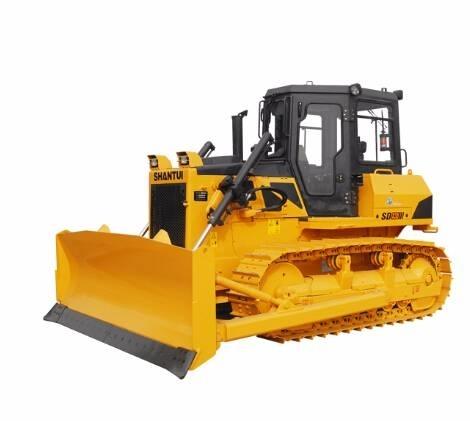

Shantui SD13Plus Kāpurķēžu buldozeri
Shantui SD13Plus Kāpurķēžu buldozeri
FavoriteIzlase
shareDalīties
Save searchSaglabāt meklējumu
Drukāt

INFORMĀCIJA

Produktu grupa
Kāpurķēžu buldozeri
Zīmols / modelis
Shantui SD13Plus
Reģistrācijas gads
2018
Papildus iespējas
Jauns
Mašīnas atrašanās vieta
Jining, Shandong, China
Valsts
Ķīna
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
51861799

PAPILDUS INFORMĀCIJA

Noliktavas Nr.
SD13Plus
Pēdējā tehniskā apskate (datums)
0
Apkalpošanas vēsture
Jā
Darba platums
320 cm
Ražotāja numurs
SD13Plus
Bruto svars
13 700 kg
Asmens veids
Taisns asmens
Gaitas iekārta
Kāpurķēžu
Emisijas klase
Fāze II
Kabīnes tips
Slēgta kabīne
Dzinējs
Shangchai SC8D143G2B1
Dzinēja jauda
94,2 kW (128 zirgsp.)
Sliežu platums
460 mm
Transmisija
Shantui
Transportēšanas izmēri (GxPxA)
4500 x 3200 x 2500 mm
Oriģinālā krāsa
yellow
Riepu zīmols
Shantui
Stāvoklis/garantija
ISO9001
Priekšējo riepu protektora dziļums
100
Ražošanas valsts
Ķīna
Aprīkots darbam:
propertynames.pp_equippedfor_2100012
Piegādes nosacījumi
FOB, CFR, CIF, EXW
Sertifikāti
EPA, CE, ANSI
Papildaprīkojums
Vinča
Gaisa kondicionētājs
Papildu hidraulika
Multi shank ripper
Rādīt vairāk
Papildinformācija
Technical Features ● Shangchai SC8D143G2B1 turbocharged diesel engine features strong power and high efficiency and energy conservancy. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency. ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The integrally injection molded instrument panel adopts micro-computer control and reasonably arranged instruments, featuring more distinct displays. ● The optimized working lamp arrangement improves the lighting performance of vehicle. ● The reversing alarm and the working warning lamp are equipped to ensure higher construction safety. ● The instrument box and the gantry frame are isolated to relieve the transmission of vibration. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The external working valves ease the daily maintenances and realize better maintainability. ● The PPC pilot controls achieve better labor-saving and convenient operations. ● The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ● The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ● The new hexahedron cab features super-large interior space and broader visual field. ● The mounting surface and the sealing surface are separated to achieve better sealing performance. ● The floor fender adopts the labyrinth sealing structure, with the internal noise as low as 87dB. Performance Parameters Length × width × height (mm) (excluding ripper)4492×3185×2490Operating weight(t) (excluding ripper)13.7 Engine modelSC8D143G2B1Net power/rated speed (kW/rpm)95.5/1900 Ground pressure(Mpa)0.063Blade typeStraight tilting blade Angle blade Blade capacity (m3)3.158 for straight tilting blade and 2.33 for angle blade Applicable Working Conditions Earthworks.Rādīt vairāk

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Ķīna
