3 Kare ECOSPRAY

Cena bez PVN

Compnay LOGO
Images6
3 Kare ECOSPRAY Citi
3 Kare ECOSPRAY Citi
3 Kare ECOSPRAY Citi
FavoriteIzlase
shareDalīties
Save searchSaglabāt meklējumu
Drukāt

INFORMĀCIJA

Produktu grupa
Citi
Zīmols / modelis
3 Kare ECOSPRAY
Ražošanas gads
2021
Stāvoklis
Pārbūvēts
Mašīnas atrašanās vieta
Kyiv, Київська область
Valsts
Ukraina
Mascus ID
211EDF30

IZCENOJUMS

Izvēlieties valūtu

PAPILDUS INFORMĀCIJA

Papildinformācija

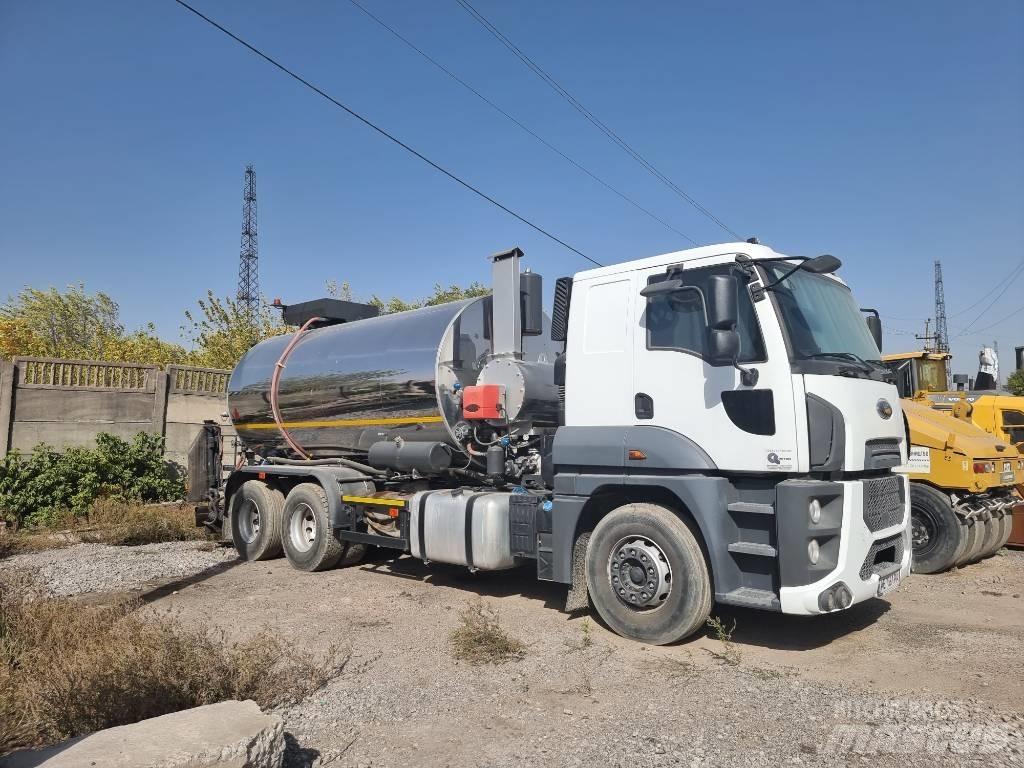

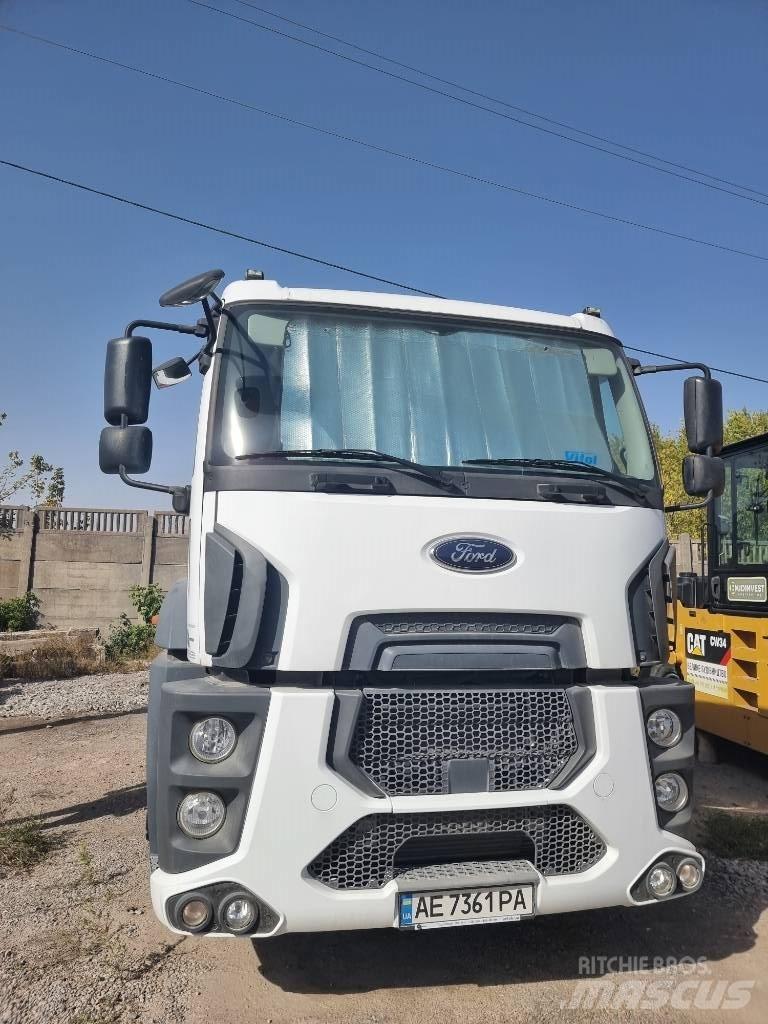

ECOSPRAY14 ASPHALT SPRAYER Ford Truck 2533 LR 2021 MODEL 34250 км Tank: 14 m³ Spray Bar Length: 4.8 m Heated by thermal oil Automatically controlled Sprayer Tanker Main Features: • 14.000 lt capacity according to chassis and capacity of the truck. • Thermal oil heated with a diesel burner. • 85000-110000 Kcal/h thermal oil heater • Spraying capacity control via automatic control system. • Perfect accuracy of spraying quantity with full balanced circulation of spray bar. 1) TANK Quantity : 1 Capacity : 14.000 lt Walls steel plate thickness : 5 mm Body steel plate thickness : 4 mm Feet steel plate thickness : 5 mm Isolation : 50 mm rock wool, covered with 1 mm stainless steel # of surge plates : 2 2) HEATING SYSTEM Circulating oil : Heat transfer oil Circulation pump : Centrifugal Type Circulation pump motor : 1,5 kw 3000 rpm Burner : BALTUR Fuel Type : Diesel Heating flame pipe : 1 ½” Control system : Analogue thermostatic control Hot Oil Heating Unit : Bitumen tank, bitumen pump, spray bars and circulation system 3) HYDRAULIC POWER TRANSMISION & CONTROL SYSTEM Hydraulic pump : LINDE 55 cc proportional hydraulic pump Bitumen pump hydraulic motor : LINDE 35 cc piston type Hydraulic Valve : Proportional electrically controlled Drive : via PTO on driveline of truck transmission 4) BITUMEN PUMP Type : Helical gear type thermal oil jacketed bitumen pump Speed Control : Digital Operator panel display ( lt/min ) Maximum pressure : 10 bar Control system : Automatic controls from driver cabin 5) SPRAY BAR & CIRCULATION SYSTEM Type : Square cross section with double compartment for perfect circulation Standard Width : 3.600 mm Main Bar width : 2.400 mm ( 600 mm 4 pcs ) Left Bar (max.) : 600 mm ( 600 mm 1 pcs ) Right Bar (max.) : 600 mm ( 600 mm 1 pcs ) Bar control system : Pneumatic controls from driver cabin Nozzle Valve control system : Pneumatic controls from driver cabin Nozzle types : 1 Set for Emulsion, 1 Set For Bitumen & PMB Control system : Digital Operator panel display ( lt/m² ) 6) OPERATOR PANEL Type : Specially developed automatic control system. Speed Control : Via Speed control radar Control system : From driver cabin LCD Screen : Vehicle speed (m / min), Sprayed distance (m), Pump Capacity (l / min), Sprayed capacity (lt/m2) 7) PRESSURIZED AIR Pressurized air supply : Truck compressor 8) REAR CONTROL PANEL Type : Manual control 9) ACCESSORIES & OTHER EQUIPMENTS 5.5 kW generator set w/ spare parts 1 set of spray nozzles for bitumen spraying 6mt length bitumen transfer flexible pipe. 6 kg fire extinguisher cylinder. No.1 head lights for rear side for night operations. Rotary warning lightRādīt vairāk
