Horyong BMK-403 ECO
Cena bez PVN
Cena pēc pieprasījuma
Drukāt
INFORMĀCIJA
Produktu grupa
Citas pacelšanas iekārtas
Zīmols / modelis
Horyong BMK-403 ECO
Ražošanas gads
2018
Darba stundu skaits
287 h
Mašīnas atrašanās vieta
Duisburg, Nordrhein-Westfalen
Valsts
Vācija
Vispārējā pakāpe
1
2
3
4
5
Mascus ID
A65059D6
PAPILDUS INFORMĀCIJA
Iepriekšējo īpašnieku skaits
1
Bruto svars
4 019 kg
Max. celtspēja
4 200 ton
Maksimālais celšanas spēks beigu daļā
3 000 ton
Uzkabes garums
6,80 m
Priekšējā strēle
2,20 m
Griežamā krāna garums
6,80 m
Pacelšanas augstums
10,2 m
Krāna āķa garums- horizontālā griezumā
8,40 m
Krāna āķa garums priekšpusē
2,21 m
Augšējais dzinējs
see chassis
Virsējās stundas
200 h
Oriģinālā krāsa
Silber-Grün
Pārvadājams dzinējs
Electric
Transportēšanas izmēri (GxPxA)
435000 x 157000 x 205000 mm
Pārvadātāja tips
Riteņu
Riepu zīmols
NM-Bereifung
Priekšējo riepu protektora atlikums
90
Aizmugurējo riepu protektora atlikums
90
Ražošanas valsts
Dienvidkoreja
Piegādes nosacījumi
FCA, CPT, EXW
Sertifikāti
CE, Tehniskā pārbaude
Dažādi piederumi- papildaprīkojums
Hakenflasche 1-rollig
Papildaprīkojums
Celtņa āķi ar bloku
Papildinformācija

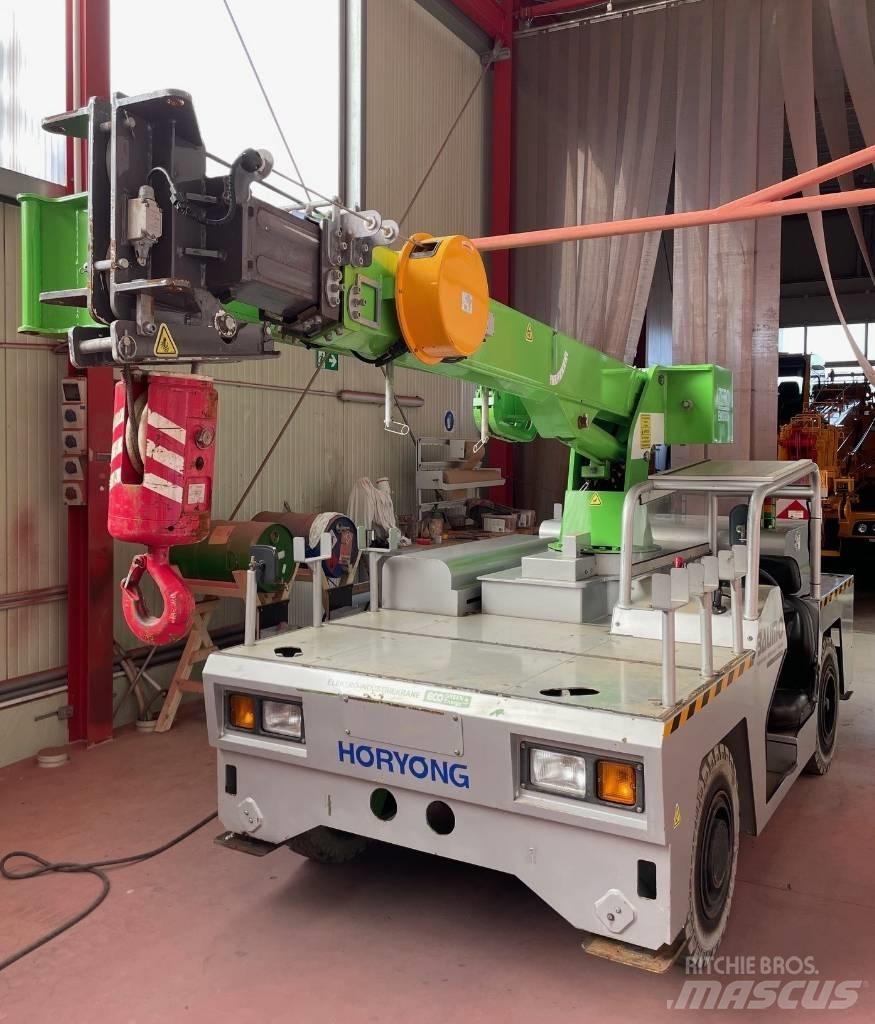

Battery industrial yard crane HORYONG BMK-403 ECO, used unit
battery drive, CE 2018, approx. 287 working hours
Pick+carry and Carry deck
TECHNICAL DETAILS:
max. lifting capacity 4,2 t x 0,9 m
max. load pick + carry 2,9 t
max. load on carry deck 2,5 t
max. working range 6,7 m (8,2 m with fly jib)
max. hook height: 8,41 m (10,2 m with fly jib)
DIMENSIONS & WEIGHT
length 4.350 mm
width 1.570 mm,
height 2.050 mm
total weight of crane: 4.019 kg
outrigger base: 2.330 mm x 3.330 mm
CRANE EQUIPMENT:
telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections
fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50°
one winch
360° slewing range unlimited
Electronical Safe Load Indicator System Rayco Wylie i4500
working range limiter
optical and voice warning system
working light, emergency stop, round-about light
hook block 1-sheave, max. 4,0 t lifting capacity
drive 4 x 2 x 2
Carry-Deck for goods, size 1,55 m², max. load 2,9 t
3 pieces pipe holders / transport holders
4-point hydraulic outriggers, front and rear
electric engine with batteries, 2x 10 kW, 72V / 300 Ah,
rechargable batteries, integrated battery charger
max. speed of crane is 6 km/h
4x non marking tires
open crane driver cabin with lattice protection roof, operation panel

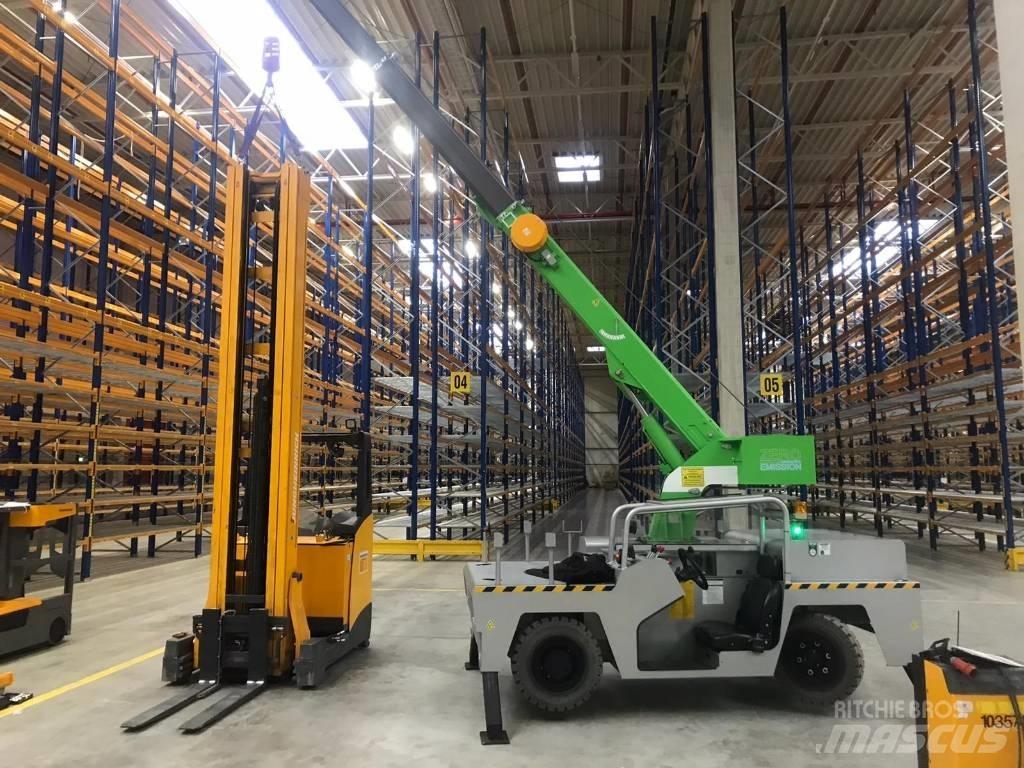

The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Vācija
