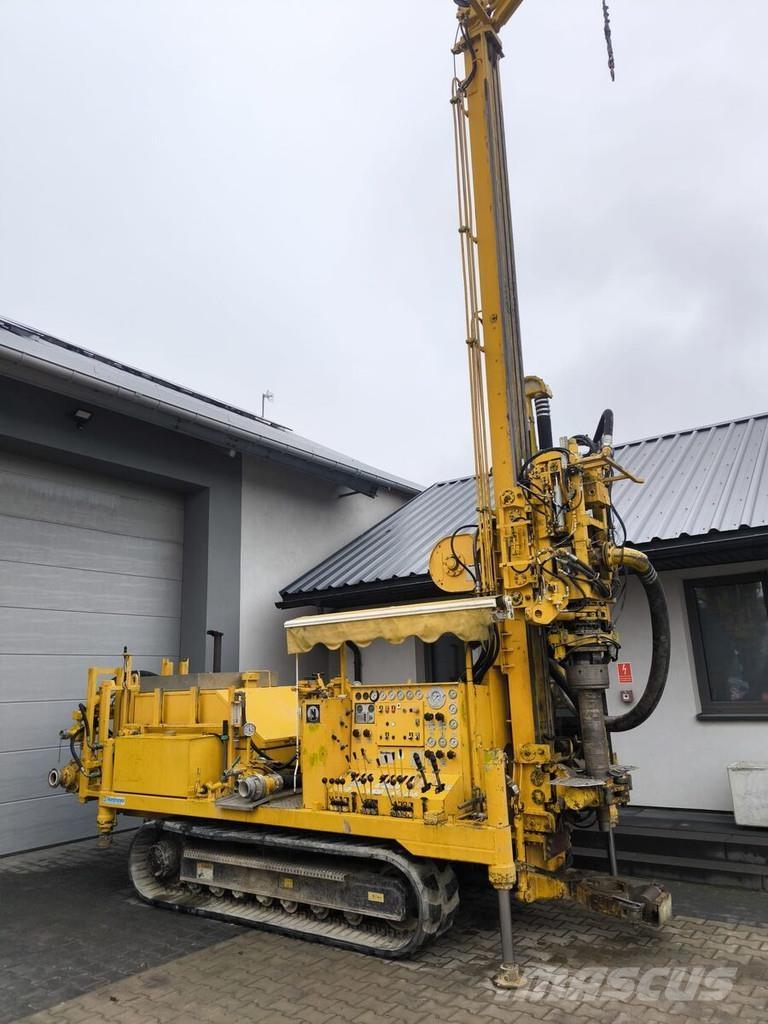

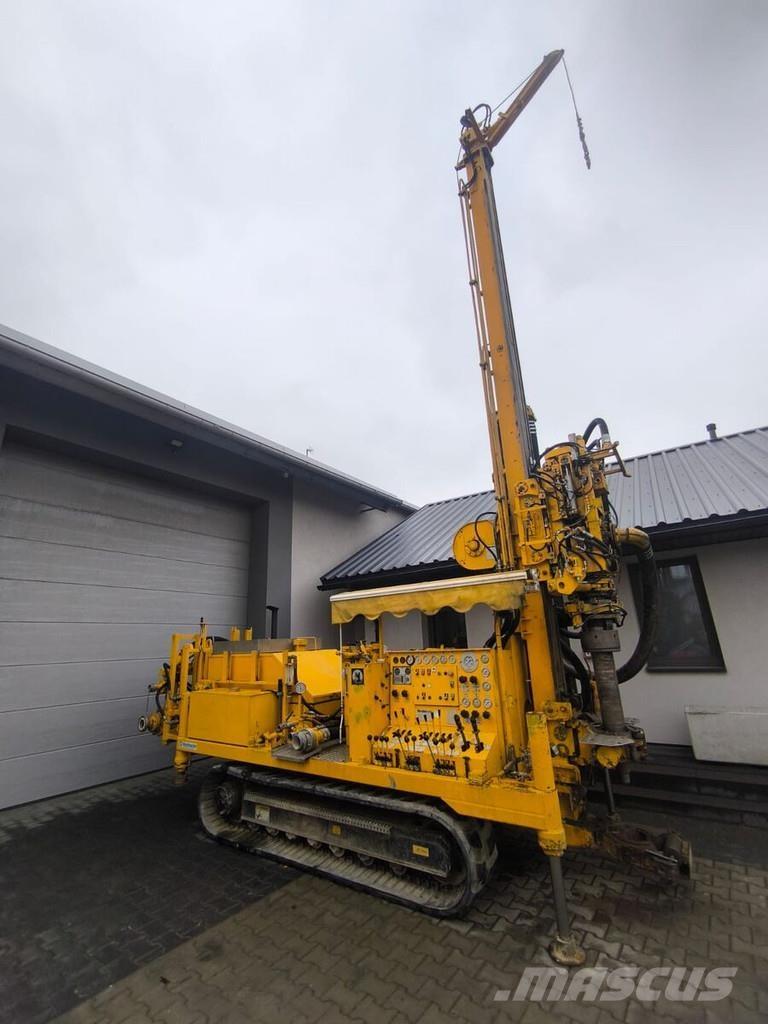

Nordmeyer DSB 1/6

EN: Originally painted, Originally varnished

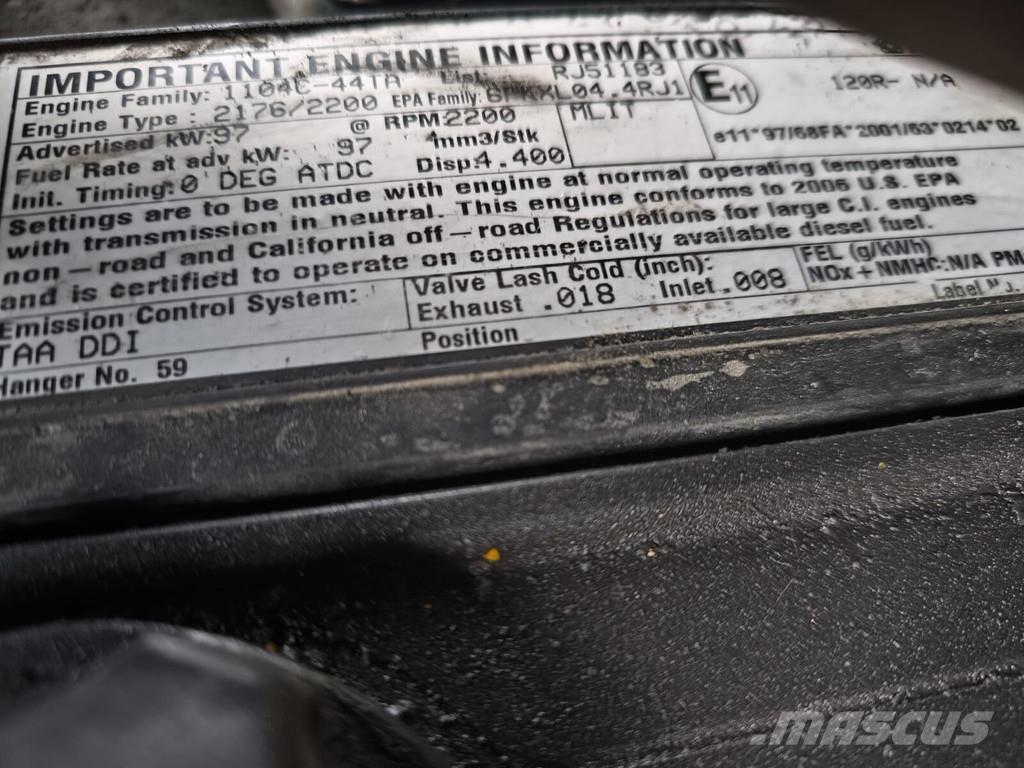

ENG: Ref. no.: SP_W_18 Type: Drilling rig Brand: NORDMEYER Model: DSB 1/6 Serial number: 2073 Counter: 9398 mth Manufactured: 2008 Power: 96.5 kW Dimensions L/H/W: 7.50/3.00/1.70 Drill rig Nordmeyer DSB 1/6, s/n: 2027, year: 2007 Drilling rig Nordmeyer DSB 1/6 with double rotary head. Perfect to drilling water wells and geothermal systems. Machine always serviced in Austria, working in Austria Counter: 9398 mth Nordmeyer has installed three (3 x) mud pumps for different ground (soft-hard rock, clayes, etc.) and for different types of drilling. - Centrifugal pump CAPRARI, nominal working pressure 16 bar, flow 1600 l/min- PUMP IS NEW - Screw pump WANGEN, nominal working pressure 16 bar, flow 560 l/min, - Triplex pumo CAT 1010, pressure 45 bar, flow 0-45 l/min All pump are powered and control by hydraulic system. Perfect solution for all geology. Double rotary head- at the same time drilling rods with bits and casing pipes. Quick manual and automatic mechanism for unscrew and grab rods/pipes. Additional cylinder for wrenching / pull up pipes from bore hole. Drill head movable in 4 positions PARAMETERS: Engine Perkins: 97 kW ( 132 hp ) Mast length: 6750 mm Working space for rods: 4400 mm Pull back force: 5.800 daNm Max. torque of top drill head: 200-400 daN.m, speed: 0-140 rpm./min Max. torque of bottom drill head: 700-1000 daN.m, speed: 0-60 rpm./min Clamps: 162 mm Winch: 1000 daN, speed: 0,5 m/s Preventer for cuttings: YES Colour: orange Transport dimensions: 7.500 mm x 2.100 mm x 3.050 mm Tracks: Rubber, width: 450mm Weight: 9800 kg Location: Bogucin 174, 21-080 Bogucin Cross roads S17/DK17entrance JASTKÓW POLAND Office: Aleja Warszawska 131B, 20-824 Lublin Contact person: Mr. Lukasz Swieca, Ada Duda-Swieca Phone: (0048) 695.414.388 = More information = Type: Soil drill Type of fuel: Diesel Colour: Gold Power: 97 kW (132 HP) Engine type: Perkins 97 KW Purchase on credit is possible: Yes Purchase by installments is possible: Yes Leasing is possible: Yes Digging depth: 200 m
