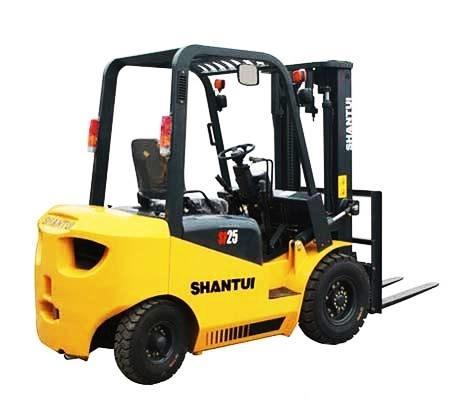

Shantui SF25

ITEM Unit SF25 General Load capacity kg 2500 Load center mm 500 Power type Diesel Dimensions Lift size mm 3000 Free lift height mm 155 Fork size mm 1070×122×40 Mast tilt angle deg 6/12 Fork overhang mm 483 Overall dimensions Full length mm 2580 Full width mm 1160 Height with mast not lifted mm 1990 Height with mast lifted mm 4030 Overhead guard height mm 2071 Minimum turning radius mm 2320 Minimum right angle passage width mm 2300 Performance Drive speed (full load/no load) Hydraulic forklift truck km/h 19/20 Mechanical forklift Gear I 8.5/9 Gear II 19/20 Full-load lifting speed mm/sec 420 Maximum gradeability % 20 Curb weight kg 4000/3978 Tires Front wheel 7.00-12-12PR Rear wheel 6.00-9-10PR Wheel & tires Tread Front wheel mm 970 Rear wheel mm 970 Wheelbase mm 1600 Ground clearance (full load/no load) Mast mm 85/105 Frame mm 100/105 Drive units & control Engine Applicable vehicle type SF20AT/SF25AT Model ISUZU C2409KJ Rated power kW/rpm 13/942
