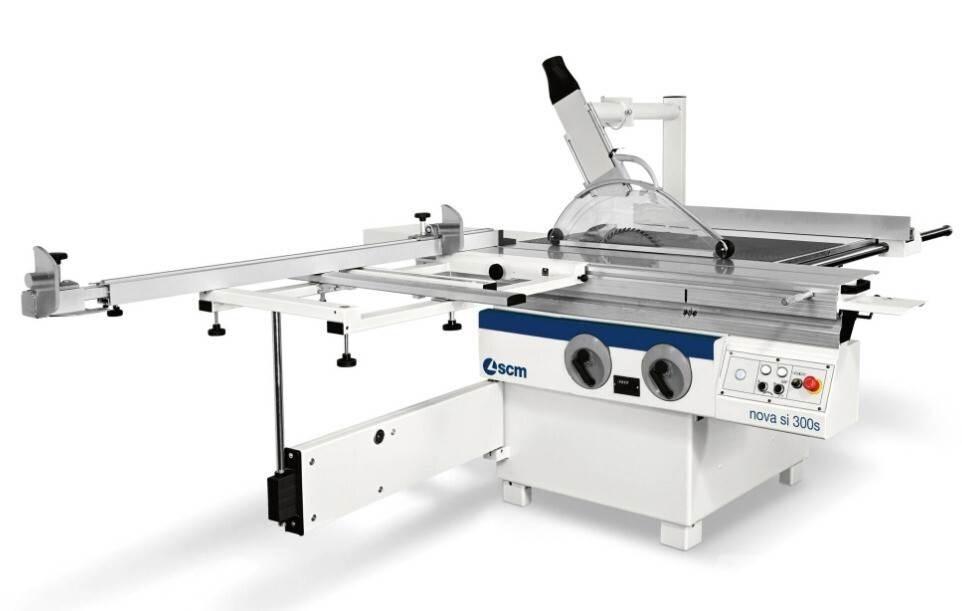

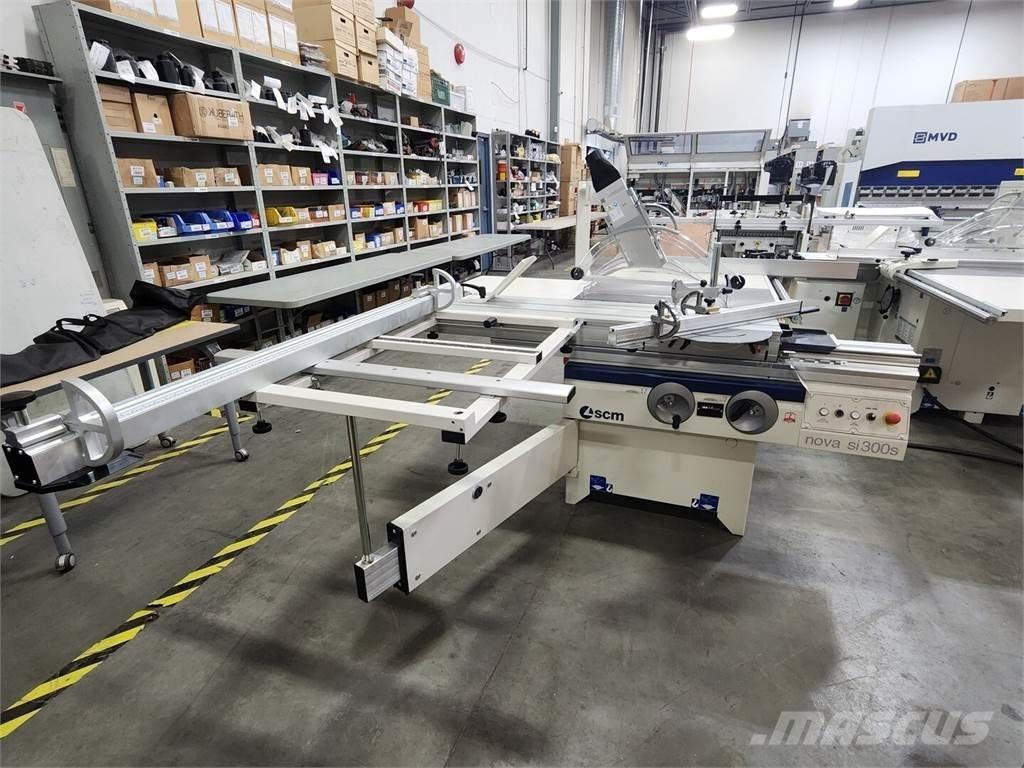

SCM nova si 300s

nova si 300s Circular Saw w/ Tilting Blade and DADO Machining Title: nova si 300s Circular Saw w/ Tilting Blade and DADO Machining SKU: 90106 Model: nova si 300s Condition: New GeneralHorsepower:11hp Table Size:900 x 550 mm Blade Diameter:315 mm Voltage:600volts Phase:3-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 45.30 (H) x 133.86 (W) x 148.00 (L) inches Max Cutting Height at 90o: 100 mm Max Cutting Height at 45o: 70 mm Blade Tilt: 45 degrees Blades Lifting and Tilt: Manual Main Blade Rotating Speed: 4000 rpm Scoring Unit Rotating Speed: 8500 rpm Scoring Unit Motor Power (S6 - 40%) ... 50 Hz: 1.3 kw (1.7 hp) Squaring Capacity w/ 1600 mm Carriage: 1600 x 2600 Ripping Capacity on Parallel Fence: 1270 mm Exhaust Outlet Diameter: - At the Base: 120 mm - On Overhead Protection: 80 mm - On Riving Knife: 60 mm "DADO" Machining Mechanical presetting to use a tool (not included) in place of the main blade: - 203 mm / 8" max. diameter - 30 mm internal diameter - 20 mm max. thickness - 40 mm max. working depth Additional Features - Angular cutting device with flip-over stops, equipped with: - Telescopic fence with two flip-over stops - Pre-set for angle rapid selection - Eccentric Clamp - Overhead saw guard with incorporated dust extraction - Seaworthy packing [PDF Brochure](... Footprints](...
