METALEC

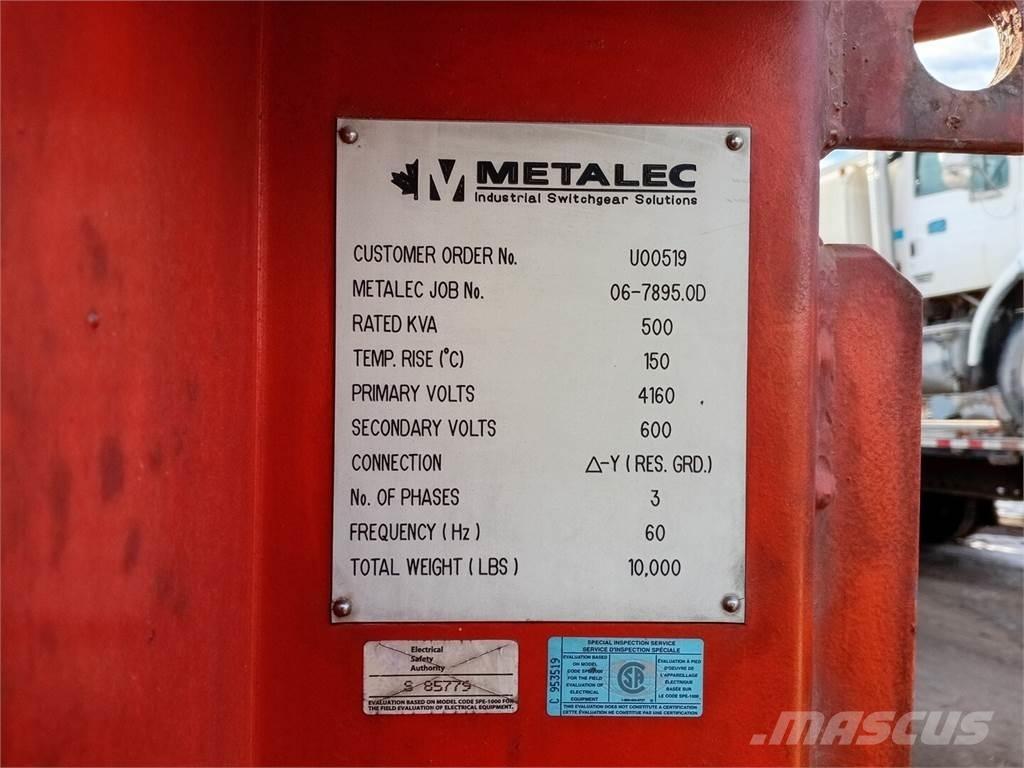

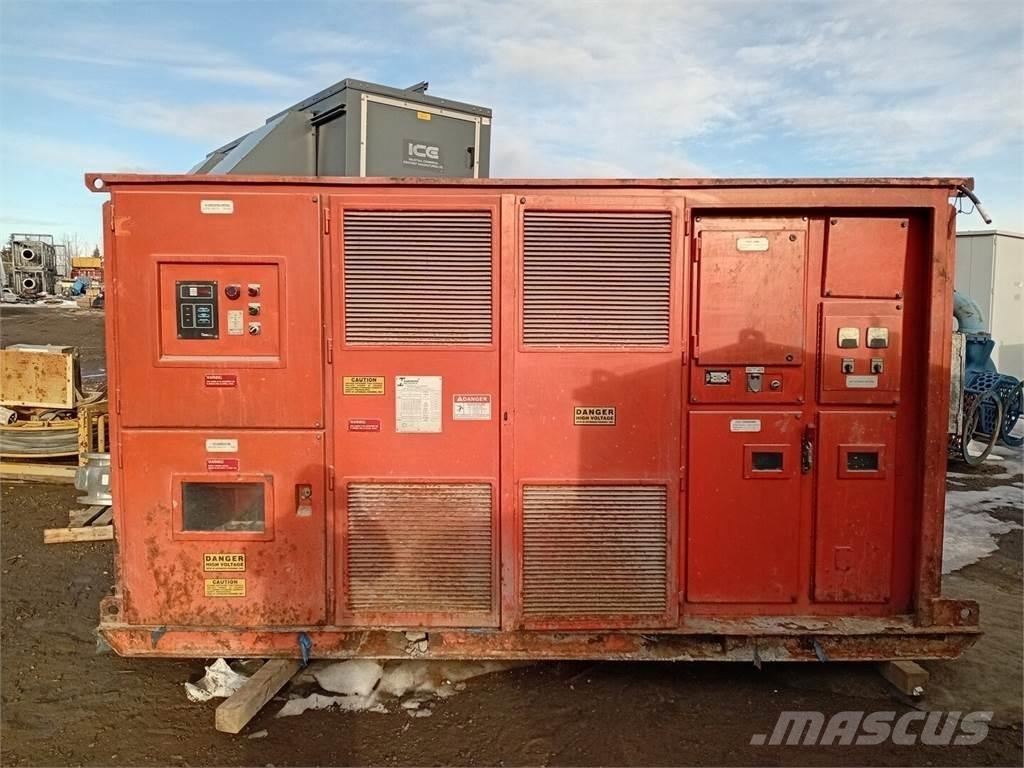

Underground Substation w/ 500 kVA Transformer, 4160V HV, 600Y/346V LV Title: Underground Substation w/ 500 kVA Transformer, 4160V HV, 600Y/346V LV SKU: 134962 Condition: Used S/N: 06-7895.0D ElectricalkVA:500kVA Primary Voltage:4160volts Secondary Voltage:600/347volts Phase:3-phase GeneralTransformer Type:Substation Transformer Auto VS Isolation:Isolation Oil vs Dry:Dry Dimensions: 80.00 (H) x 60.00 (W) x 144.00 (L) inches Transformer Specifications: - Make: HAMMOND POWER SOLUTIONS INC. - Model/Part No.: 179835 - Serial No.: DB06C193 - Type/Class: ANN - kVA: 500 - High Voltage: 4160 - HV BIL kV: 30 - Low Voltage: 600Y/346 - LV BIL kV: 10 Unit Manufacturer Specifications: - Make: METALEC SUDBURY INC. - Order No.: U00519 - Job No.: 06-7895.OD - Weight: 10,000 lbs
