GL&V BOWSCREEN TS3

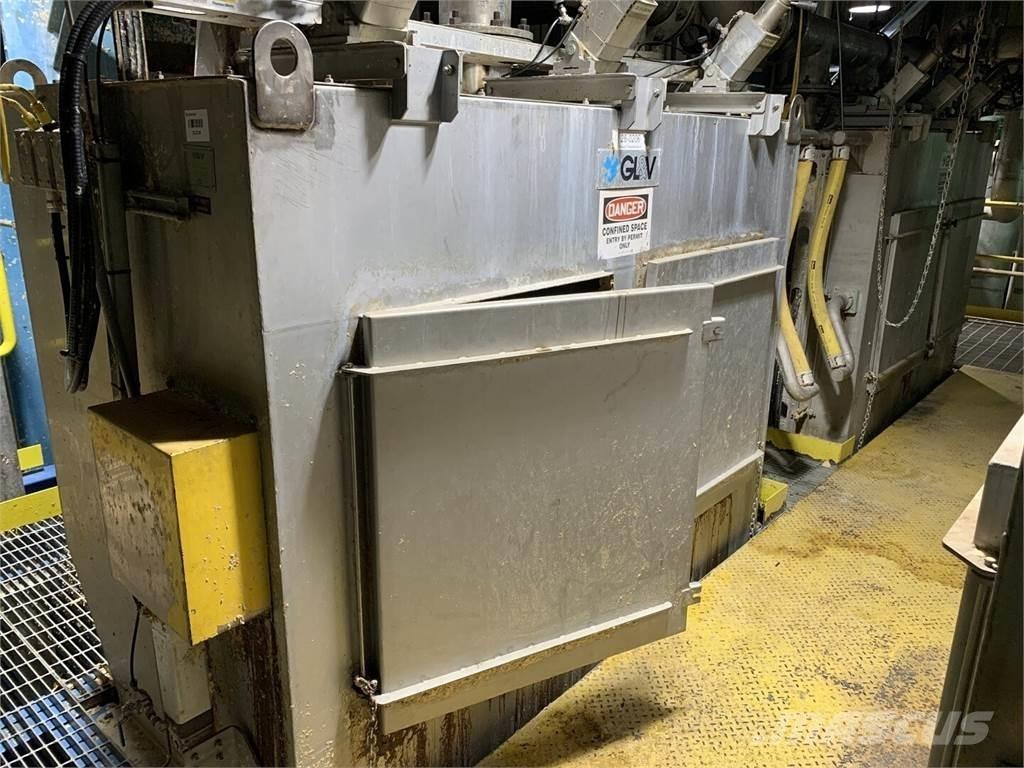

Bowscreen TS3 Rejects Thickener 48" x 196" Title: Bowscreen TS3 Rejects Thickener 48" x 196" SKU: 112228 Model: BOWSCREEN TS3 Year: 2017 Condition: Used Weight + DimensionsDiameter:48" GeneralApplication:rejects thickening [PDF TECHNICAL DRAWINGS](... INSTRUCTION MANUAL](... of Operation: - The decker consists of a wire mesh covered cylinder (mould) rotating in a vat of stock. - Level differences between the inside and outside of the mould induce a drainage of water from the stock. - Stock is fed into one side of the vat and passes under the mould, forming a mat on the wire. - This mat is picked off by a rubber covered couch roll and sliced off by a doctor blade running the length of the roll. The thickened stock so removed, creeps over the doctor blade and falls from the apron into a discharge chute. - White water drained into the cylinder mould passes through the end of the decker and out through a pipe. Diameter: 48" Length of Cylinder Mould: 196"
