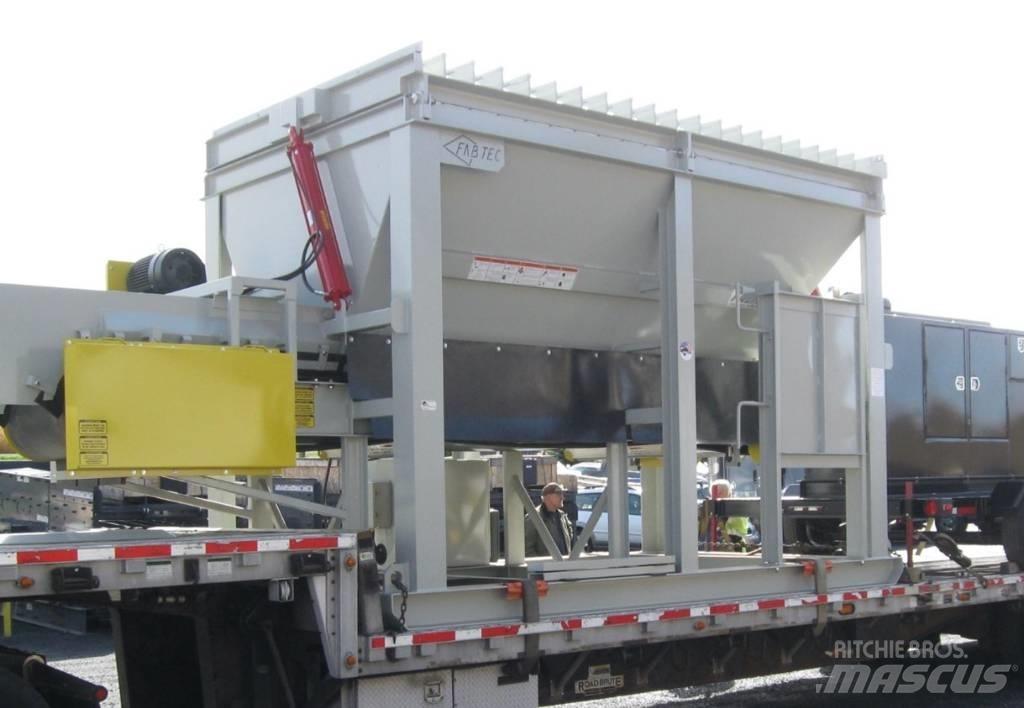

Fabtec 814-12SF

Cena bez PVN

Cena pēc pieprasījuma

Compnay LOGO
Images1
Fabtec 814-12SF Būvniecība- Citi
FavoriteIzlase
shareDalīties
Save searchSaglabāt meklējumu
Drukāt

INFORMĀCIJA

Produktu grupa
Būvniecība- Citi
Zīmols / modelis
Fabtec 814-12SF
Ražošanas gads
2024
Mašīnas atrašanās vieta
Camrose, Alberta
Valsts
Kanāda
Mascus ID
85DEC120

PAPILDUS INFORMĀCIJA

Noliktavas Nr.
2024-01-FT
Ražošanas valsts
Kanāda
Papildinformācija
SKID MOUNTED 36" x 14' BELT FEEDER WITH 12 C.Y. HOPPER: 150 TO 600 TPH CAPACITY. MINIMUM BELT SPEED 30 FPM. 8' x 14' 12 C.Y. FEED HOPPER: 3/8" PLATE WITH 8" x 8"x 1/2" ANGLE IRON AND 8" CHANNEL SUPPORT STRUCTURE. HOPPER LOAD RELIEF SHELF. MAIN SKID FRAME 8" WF 31# AND BELT FEEDER FRAME 12" CHANNEL 20.7#. CONVEYOR COMPONENTS: 1. Toshiba 20 HP TEFC motor. 2. 5207 Falk shaft mount reducer and № 120 Sprockets. 3. Alloy steel Shafts, Dodge SCM bearings. 4. 12" Centers on flat rubber disc impact carrier rollers. 5. Optional deduct for steel cans ~vs~ FRD idlers. 6. 3" PLY belt 1/4" cover. 7. 16" Vulcanized lagged head pulley and 16” self-cleaning wing tail pulley. FEED GATE WITH WEIGHTS. RUST INHIBITOR PRIMER, AND TWO FINISH COATS OF PAINT INCLUDED. OPTIONS AVAILABLE: REVERSABLE HYDRAULIC DUMP GRIZZLY: 1. Main frame 8" Channel. 2. 3/4" x 6" FB Grizzly bars with 1 ½ Ø" round bar. (7” nominal spacing) 3. 36" stroke, 4" bore, 1 ½Ø” rod cylinder. 4. 10 HP 1800 C face motor and Vickers V10 pump. 5. Vickers electric over hydraulic valve control. 6. Hydraulic tank with filter protection. 7. Option for self-relieving grizzly. 8. Optional 2 ½” round bar ~vs~ 1 ½” bars on grizzly. SPECIAL WEDGE DESIGNED SELF RELIEVING GRIZZLY: (REQUIRED IF TAKING HYD DUMP GRIZZLY) 1. Every other bar lifts during dump process. 2. 2" round bar. VULCANIZE SPLICE ONE 36” BELT ~vs~ STANDARD CLIPS: 36” SUPERIOR EXTERRA BELT SCRAPER ~vs~ STANDARD COMBI-WIPERādīt vairāk

DSW Equipment (2023) Ltd.

3750 43 Avenue T4V 3S8 Camrose Alberta Kanāda
