BOUNDARY ELECTRIC

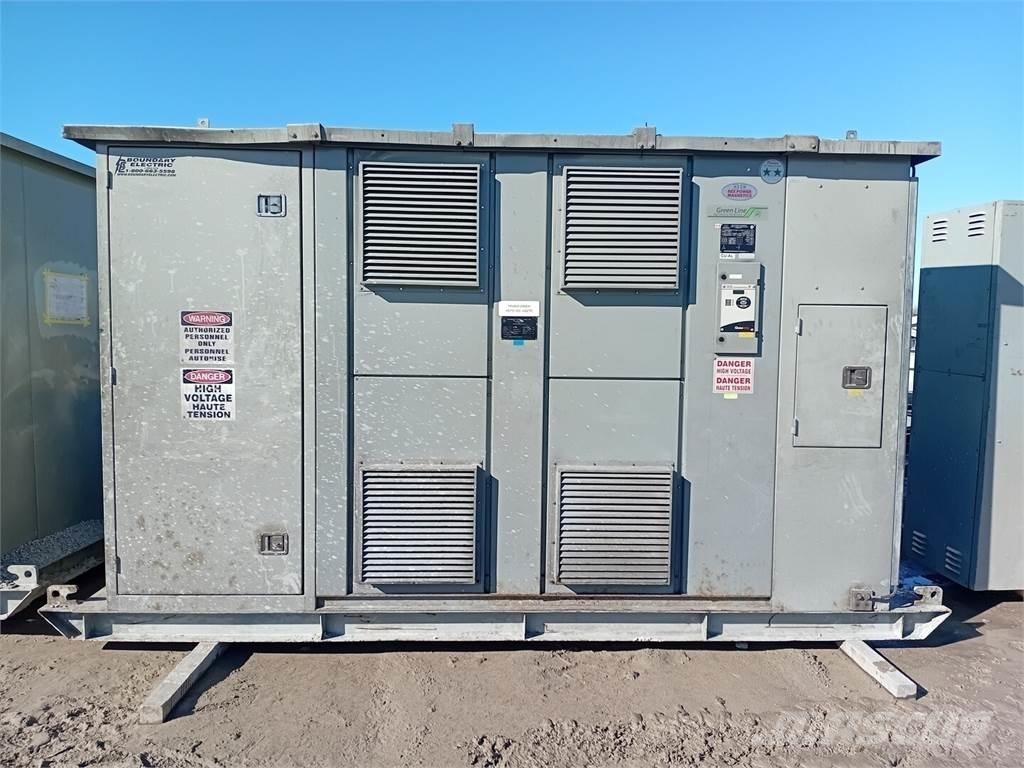

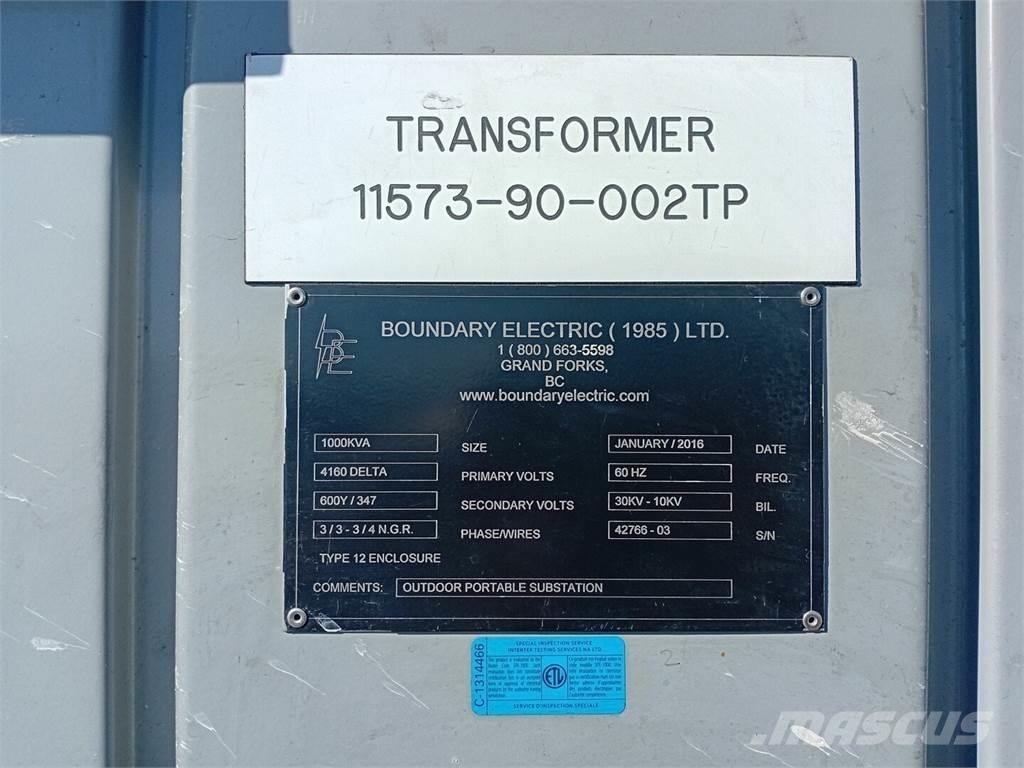

Outdoor Portable Substation w/ 1000 kVA Transformer, 4160V HV, 600Y/346V LV Title: Outdoor Portable Substation w/ 1000 kVA Transformer, 4160V HV, 600Y/346V LV SKU: 134967 Year: 2016 Condition: Used S/N: 42766-03 ElectricalkVA:1000kVA Primary Voltage:4160volts Secondary Voltage:600/347volts Phase:3-phase GeneralTransformer Type:Substation Transformer Auto VS Isolation:Isolation Oil vs Dry:Dry Dimensions: 110.00 (H) x 66.00 (W) x 184.00 (L) inches Transformer Specifications: - Make: Rex Power Magnetics - Model/Part No.: BC1000U-Q/E12/X/Z - Serial No.: D53205 - Type/Class: ANN - kVA: 1000 - High Voltage: 4160 Delta - HV BIL kV: 30 - Low Voltage: 600Y/346 - LV BIL kV: 10 Unit Manufacturer Specifications: - Make: Boundary Electric - Serial No.: 42766-03 - Year: 2016
