BELIMO FSAF24A

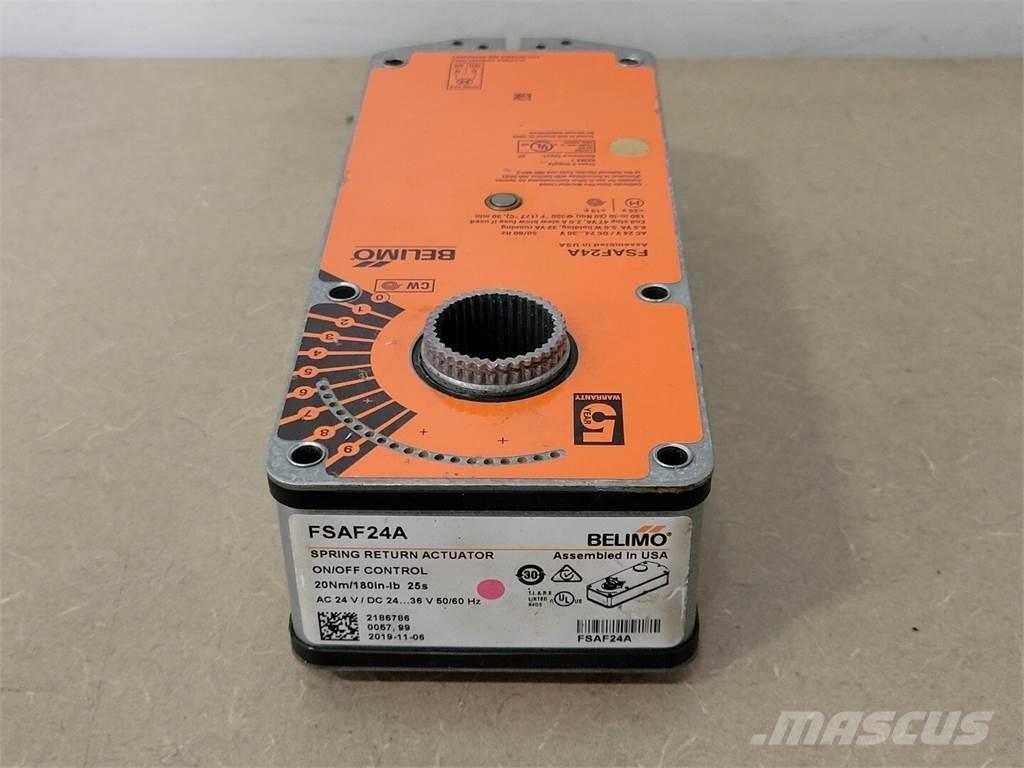

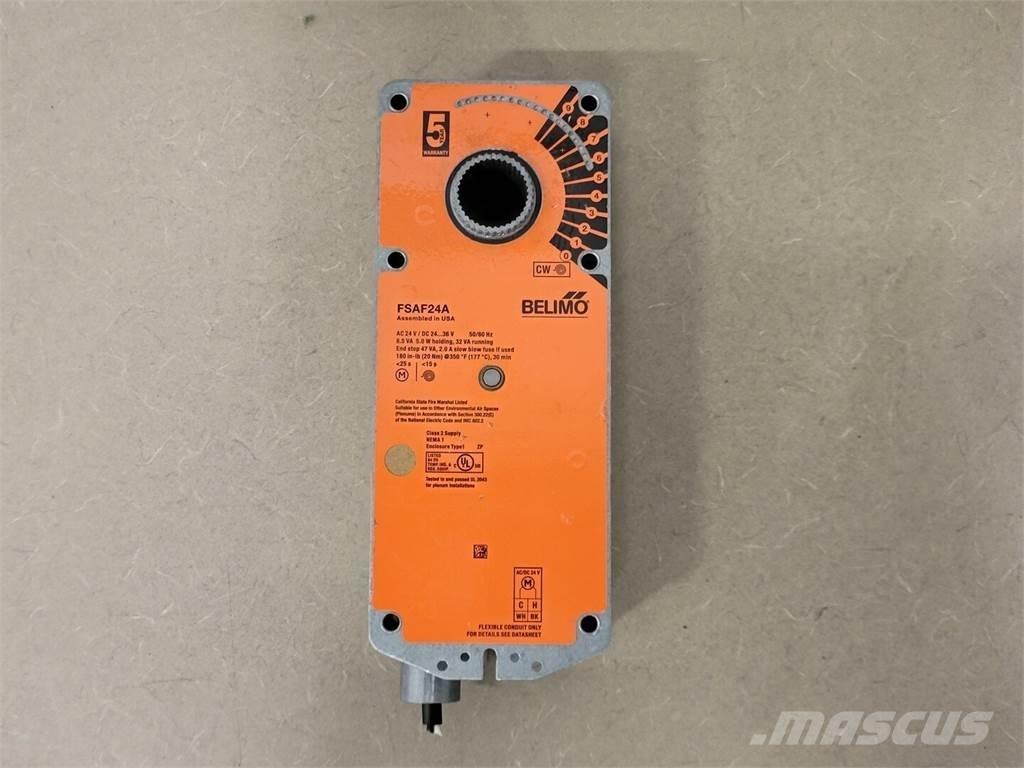

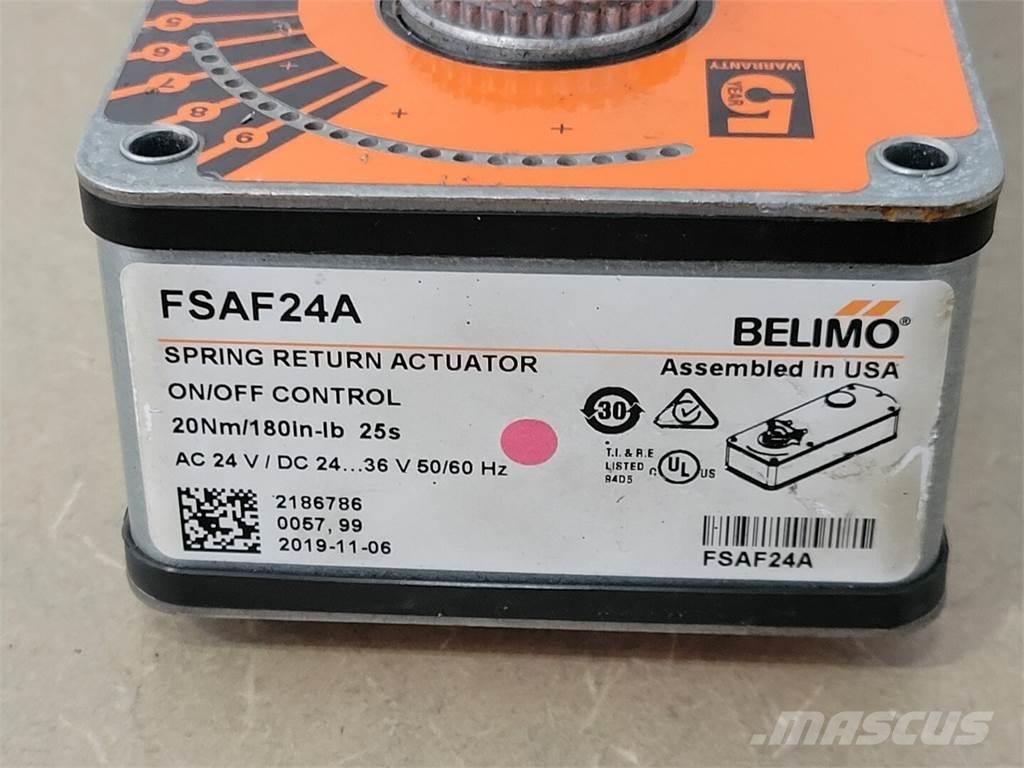

Spring Return Damper Actuator FSAF24A Title: Spring Return Damper Actuator FSAF24A SKU: 137733 Model: FSAF24A Condition: Used Dimensions: 2.50 (H) x 4.00 (W) x 10.00 (L) inches Type: Spring Return Actuator Control: On/Off Torque: 20 Nm (180 in-lb) Voltage: AC 24 V / DC 24-36 V Frequency: 50/60 Hz Run Time (Motor): approx. 25 seconds Rotation: Clockwise (CW) or Counterclockwise (CCW) selectable via mounting Ingress Protection: IP54 UL Listed / CE Certified Ambient Temperature: -30C to +50C Assembled in USA Warranty: 5 years (Belimo standard) Actuator Shaft Size: 10-20 mm round / 8-16 mm square Length: 10.7 in (272 mm) approx. 0.89 ft
